Page 1: Building Instructions

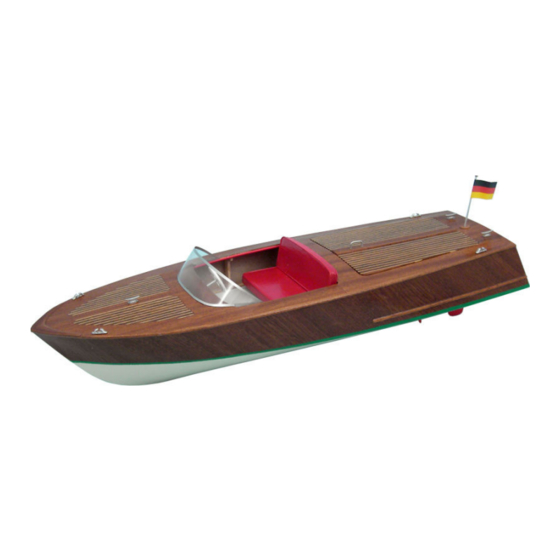

Classic Building Instructions Classic sports boat Order no. 3092/00 „aero-naut“ Modellbau Stuttgarterstr. 18-22 D-72766 Reutlingen / Germany http://www.aero-naut.com Building Instructions Classic sports boat... - Page 2 Classic The boat should be assembled following the sequence of stages as described in these instructions; the finished assembly is always shown in the illustration for the next stage. Check all components before reaching for the glue, as you may need to trim them slightly. Allow all glued joints to set hard before moving on to the next stage.
- Page 3 Classic (14) Lay the taped bottom panels 16 on the hull, and apply more strips of tape as shown, starting from the right (the stern). Ensure that the cut edges butt up exactly in the centre. At the left end (the bow) you will have to leave a gap of about 6 mm, as the material is too stiff to conform to the curvature.
- Page 4 Classic (32) Glue the deck support stringers 32 and 33 together in pairs, and allow the glue to set hard. Glue these parts in the top notches in the frames 1 - 3 and the bow supports 11 at the bow. Drill out the hole in the instrument panel at an angle, and glue the steering wheel in the hole.
- Page 5 Classic (50) At this point all the wooden parts can be sanded smooth, and the whole model given several coats of sanding sealer, Order No 7666/02. Allow the sealer to dry thoroughly after each coat, and rub the model down with fine glasspaper before applying the next. Now place the boat in water to check that everything is watertight.
- Page 6 Classic Instrument panel Mahogany Die-cut Deck support stringer Mahogany Die-cut Deck support stringer Mahogany Die-cut Transom Mahogany Die-cut Rudder bush Brass Ready made, 7024/02 Rudder Metal / plastic Ready made, 7024/02 M3 self-locking nut Metal / plastic Ready made, 7766/23 Tiller Plastic Ready made...
