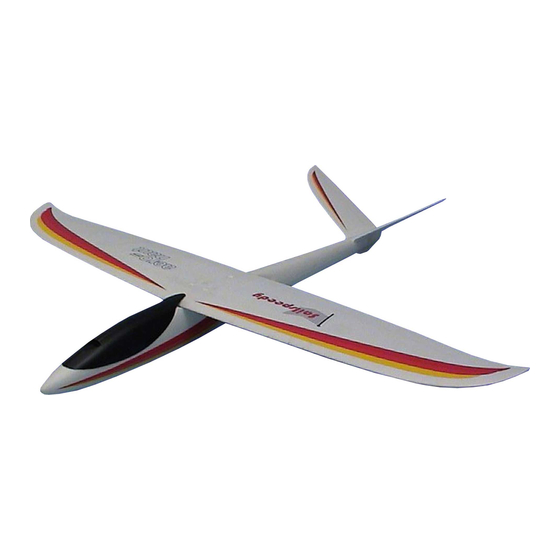

Aeronaut Twinspeedy Manual

Aeronaut Twinspeedy Manual

Advertisement

Building instructions

Twinspeedy
Order No. 1319/01
Sailspeedy
Order No. 1319/00
This model is of very simple construction, and can be built even by modellers with little prior
experience. All the parts contained in the kit are numbered, and the numbers are included in the text,
the stage photos and the parts list. It is important to complete the model in the sequence described in
these instructions, and to allow all glued joints to harden completely at the end of each stage before
resuming construction. We at "aero-naut" are unable to monitor the methods you use to build the
model, and for this reason "aero-naut" accepts no liability for damage or injury caused during
construction or operation of this model.
Flying this model successfully requires a basic knowledge of model flight. If you are a beginner please
ask an experienced model pilot to help you during the initial stages of learning to fly.
Use 5-minute epoxy for all joints.
Extra items required to complete the model
1
RC (radio control) system with V-tail mixer
4
9 g servos
1
Receiver battery
1
Clear adhesive tape, 10 - 20 mm wide
1
5-minute epoxy (two-pack resin adhesive)
1
Speed controller (for Twinspeedy only)
2
Race 400 6V motors, Order No. 7000/42, or Speed 400 6V (for Twinspeedy only)
2
Propellers (for Twinspeedy only), Order No. 7249/08
1
6-cell sub-C flight battery or 7-cell 4/5 sub-C flight battery (for Twinspeedy only)
Translation for following pictures:
6
Servokabel
9
Schnitt
14
Kohlefaserrohr
Servoschacht
Tragflaeche
Schnitt
Querruder
Schlitz
Schnitt
18
Spinner cap
Sailspeedy / Twinspeedy instructions
"aero-naut" Modellbau
Stuttgarterstr. 18-22
D-72766 Reutlingen
Germany
http://www.aero-naut.de
Servo lead
Cut
Carbon fibre tube
Servo well
Wing
Cut
Aileron
Slot
Cut
Twinspeedy / Sailspeedy
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Twinspeedy and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aeronaut Twinspeedy

  • Page 1: Building Instructions

    5-minute epoxy (two-pack resin adhesive) Speed controller (for Twinspeedy only) Race 400 6V motors, Order No. 7000/42, or Speed 400 6V (for Twinspeedy only) Propellers (for Twinspeedy only), Order No. 7249/08 6-cell sub-C flight battery or 7-cell 4/5 sub-C flight battery (for Twinspeedy only)
  • Page 2 (8): press the ring-screws (14) into the fuselage, then enlarge the holes and epoxy the ring- screws securely to parts (1 + 8) (Fig. 7). These ring-screws are used to attach a rubber band (22) Sailspeedy / Twinspeedy instructions...
  • Page 3 The servo leads must be extended to a length of 45 cm to reach the receiver, which will be installed in the fuselage under the canopy. Check that the servos work correctly once the leads have been extended. Sailspeedy / Twinspeedy instructions...
  • Page 4 (Fig. 16). They act as reinforcements for the wing screws used to secure the wing (4) to the fuselage (1). Twinspeedy The wing of the Twinspeedy features two moulded-in fairings into which the electric motors are glued from the underside. Before installing the motors the power supply leads must be soldered to the terminals.
  • Page 5 Mild steel rod Ready made, 81 mm Canopy Plastic Ready made Reinforcement Balsa 10 x 10 x 30 mm Screw Nylon M4 Order No. 7769/04 Rubber band Rubber Order No. Decal sheet Self-adhesive film Instructions Abrasive paper Sailspeedy / Twinspeedy instructions...

This manual is also suitable for:

Sailspeedy
