Aeronaut Pilot Manual page 10

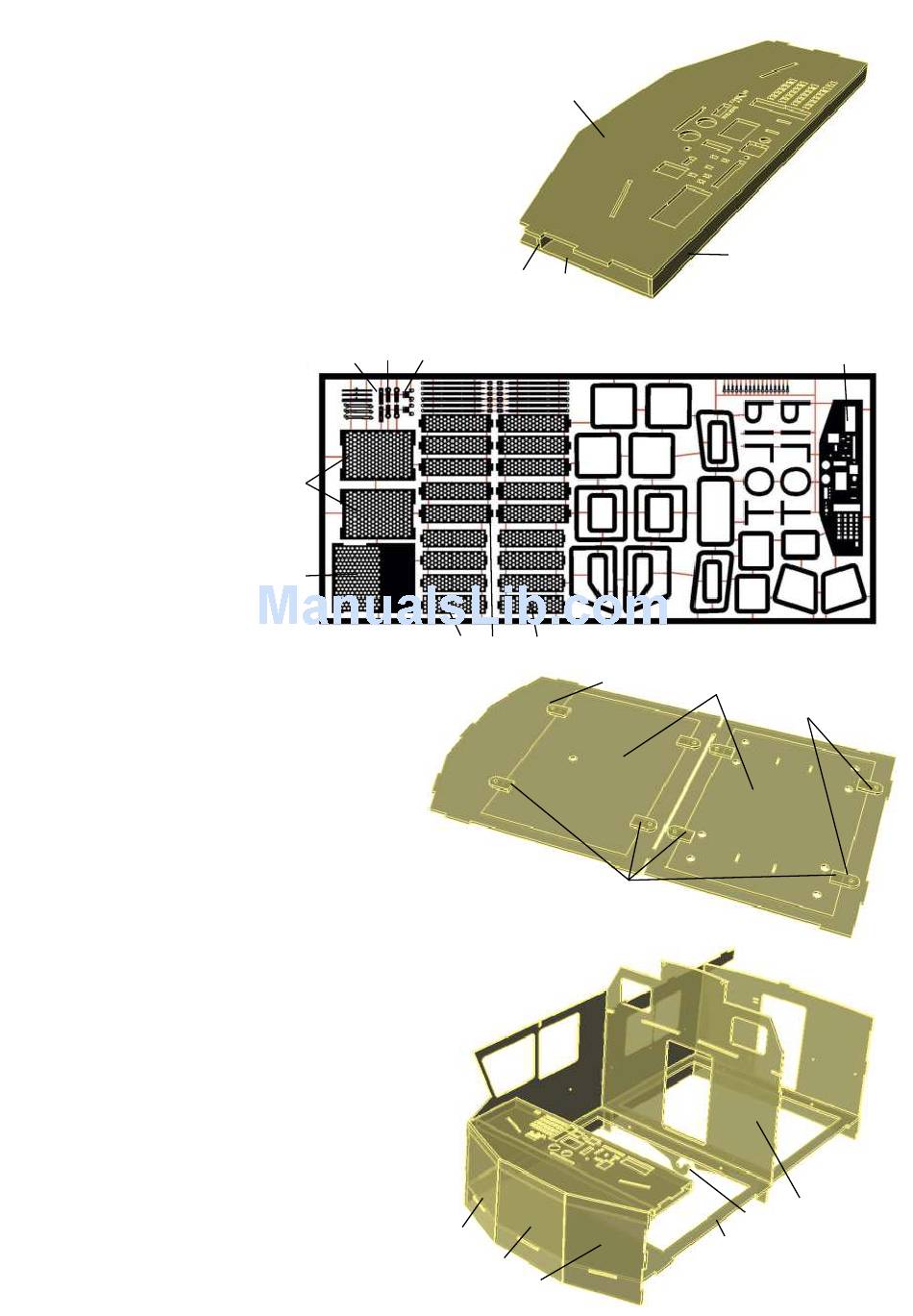

Glue together parts 79 to 81 to form the instrument
panel. Apply the instrument decal 83 to the panel.
Stick the etched bezel 82 to the decal sheet using
contact adhesive. Apply low-tack masking film to part
82, keeping accurately to the edges, to protect it from
subsequent painting.
3 mm LEDs can be inserted in the underside of the
fairing 81 to illuminate the instruments.
Fix the retaining lugs 85 to the deckhouse frame 86
using the screws 87, then glue the lugs to the floor
panels 84. Allow the glue to set hard before removing
the floor panels; they are removable separately,
together with the seats. The holes in the corners of the
deckhouse frame 86 are to accommodate cables.
Fit the deckhouse partition 88 through the
deckhouse frame 86. Glue the reinforcements 93 to
the underside on both sides. Glue all the glazing
panels in the side panels and roof, but without
removing the protective film; the film is only peeled
off after painting. Glue the rear wall 89 to the
deckhouse.
Fit the side walls 90 on the tongues of parts 86, 88
and 89, and glue the parts together. Slide the
instrument panel into the slots between the side
walls, then glue the joints. When the adhesive has
set hard, glue the front centre and side panels 91
and 92 to the structure.
111 112
114
66
60
61
Fig. 18
92
Fig. 16
79
80
81
Etched parts The illustration shows the rear face
Bild 18
90
65
61
86
Fig. 17
85
90
91
92
80
89
84
87
88
2x93
86
Left-hand side panel 90 not shown for clarity.
82
