PANEL DESCRIPTION

■

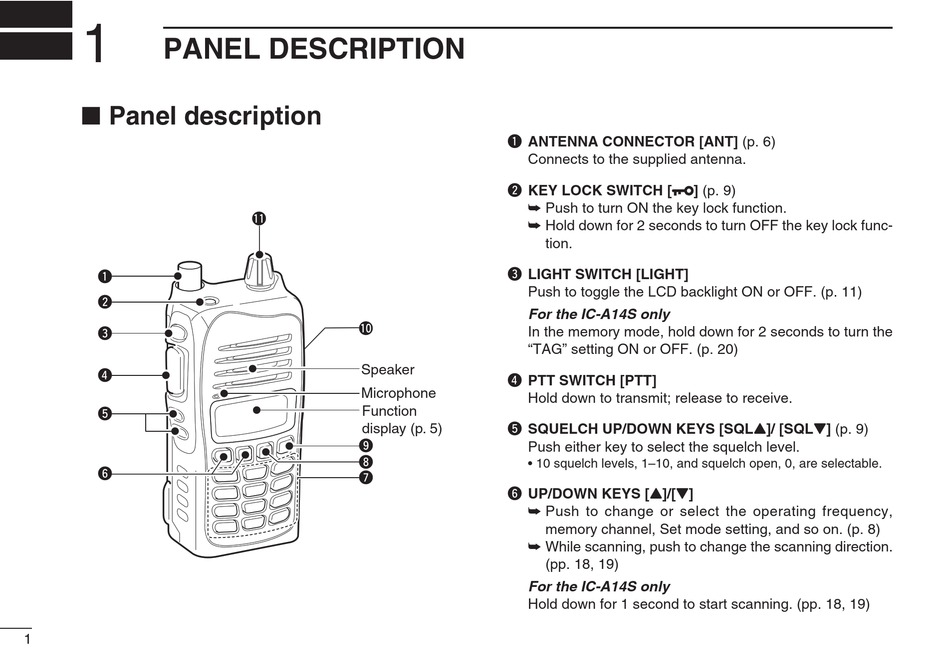

Panel description
q
w
e
r
t
y
1
!1
!0
Speaker
Microphone
Function
display (p. 5)
o
i
u
q ANTENNA CONNECTOR [ANT] (p. 6)
Connects to the supplied antenna.
w KEY LOCK SWITCH [
➥
Push to turn ON the key lock function.
➥
Hold down for 2 seconds to turn OFF the key lock func-
tion.
e LIGHT SWITCH [LIGHT]
Push to toggle the LCD backlight ON or OFF. (p. 11)
For the IC-A14S only
In the memory mode, hold down for 2 seconds to turn the
"TAG" setting ON or OFF. (p. 20)
r PTT SWITCH [PTT]
Hold down to transmit; release to receive.
t SQUELCH UP/DOWN KEYS [SQLY]/ [SQLZ] (p. 9)
Push either key to select the squelch level.
• 10 squelch levels, 1–10, and squelch open, 0, are selectable.
y UP/DOWN KEYS [Y]/[Z]
➥
Push to change or select the operating frequency,
memory channel, Set mode setting, and so on. (p. 8)
➥
While scanning, push to change the scanning direction.
(pp. 18, 19)
For the IC-A14S only
Hold down for 1 second to start scanning. (pp. 18, 19)
] (p. 9)
