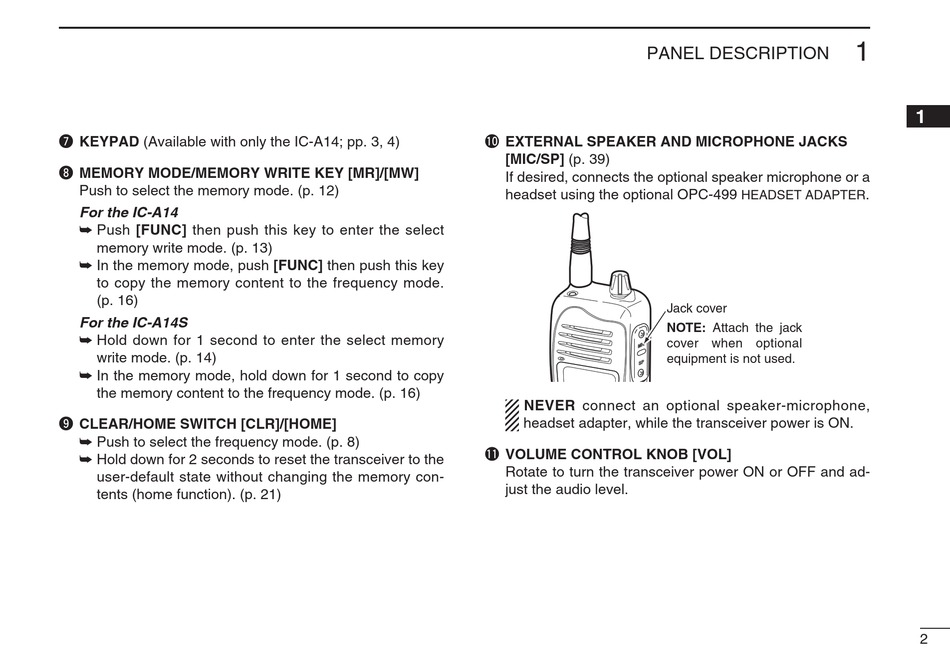

Icom iC-A14 Instruction Manual page 7

u KEYPAD (Available with only the IC-A14; pp. 3, 4)
i MEMORY MODE/MEMORY WRITE KEY [MR]/[MW]
Push to select the memory mode. (p. 12)
For the IC-A14
➥
Push [FUNC] then push this key to enter the select
memory write mode. (p. 13)
➥
In the memory mode, push
to copy the memory content to the frequency mode.
(p. 16)
For the IC-A14S
➥
Hold down for 1 second to enter the select memory
write mode. (p. 14)
➥
In the memory mode, hold down for 1 second to copy
the memory content to the frequency mode. (p. 16)
o CLEAR/HOME SWITCH [CLR]/[HOME]
➥
Push to select the frequency mode. (p. 8)
➥
Hold down for 2 seconds to reset the transceiver to the
user-default state without changing the memory con-
tents (home function). (p. 21)
[FUNC] then push this key
PANEL DESCRIPTION
!0 EXTERNAL SPEAKER AND MICROPHONE JACKS
[MIC/SP] (p. 39)
If desired, connects the optional speaker microphone or a
headset using the optional OPC-499
NEVER connect an optional speaker-microphone,
headset adapter, while the transceiver power is ON.
!1 VOLUME CONTROL KNOB [VOL]
Rotate to turn the transceiver power ON or OFF and ad-
just the audio level.
HEADSET ADAPTER
Jack cover
NOTE: Attach the jack
cover when optional
equipment is not used.
