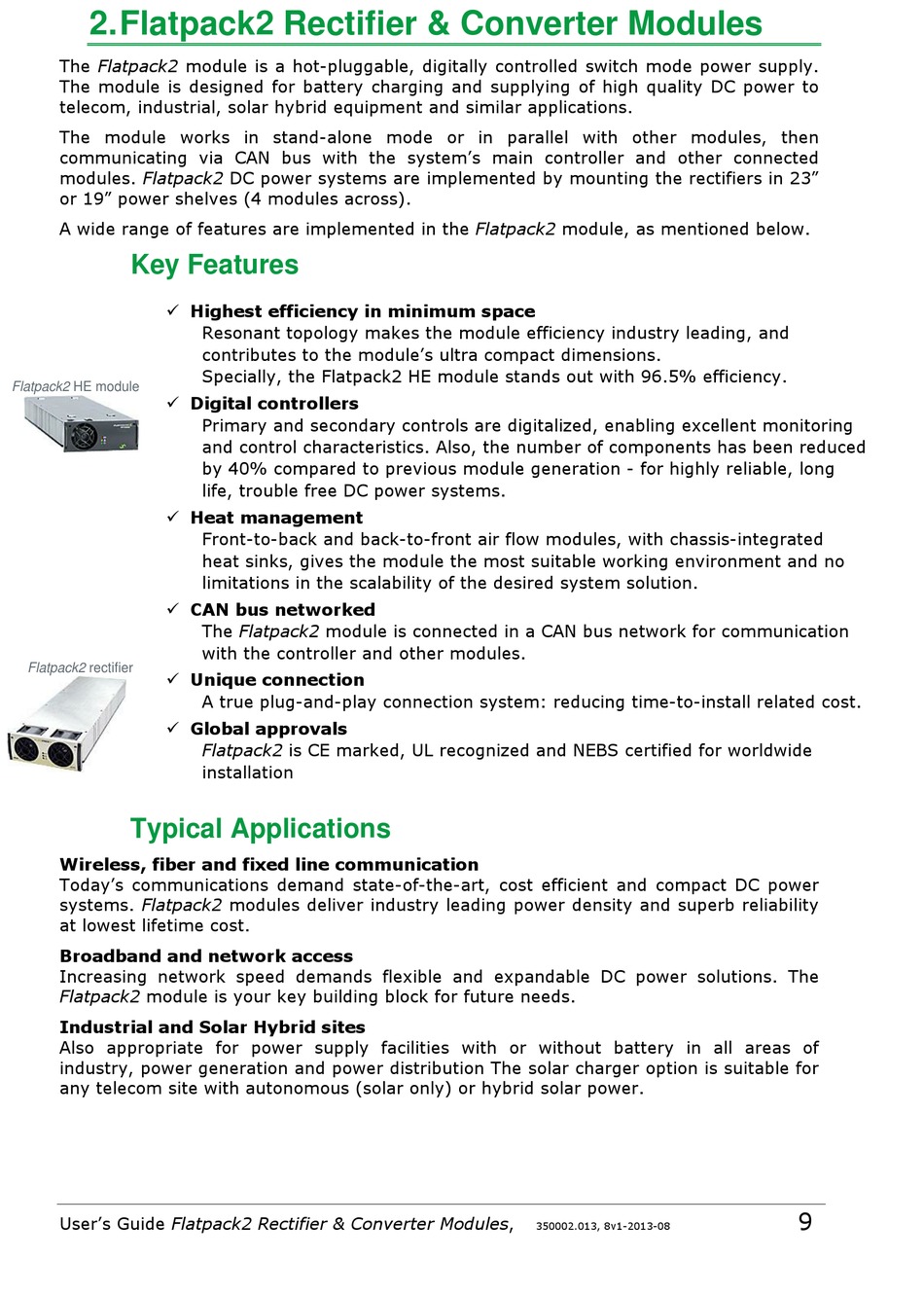

2. Flatpack2 Rectifier & Converter Modules
The Flatpack2 module is a hot-pluggable, digitally controlled switch mode power supply.
The module is designed for battery charging and supplying of high quality DC power to
telecom, industrial, solar hybrid equipment and similar applications.
The module works in stand-alone mode or in parallel with other modules, then
communicating via CAN bus with the system's main controller and other connected
modules. Flatpack2 DC power systems are implemented by mounting the rectifiers in 23"
or 19" power shelves (4 modules across).
A wide range of features are implemented in the Flatpack2 module, as mentioned below.

Key Features

 Highest efficiency in minimum space
Flatpack2 HE module
 Digital controllers
 Heat management
 CAN bus networked
Flatpack2 rectifier
 Unique connection
 Global approvals

Typical Applications

Wireless, fiber and fixed line communication
Today's communications demand state-of-the-art, cost efficient and compact DC power
systems. Flatpack2 modules deliver industry leading power density and superb reliability
at lowest lifetime cost.
Broadband and network access
Increasing network speed demands flexible and expandable DC power solutions. The
Flatpack2 module is your key building block for future needs.
Industrial and Solar Hybrid sites
Also appropriate for power supply facilities with or without battery in all areas of
industry, power generation and power distribution The solar charger option is suitable for
any telecom site with autonomous (solar only) or hybrid solar power.
User's Guide Flatpack2 Rectifier & Converter Modules,
Resonant topology makes the module efficiency industry leading, and
contributes to the module's ultra compact dimensions.
Specially, the Flatpack2 HE module stands out with 96.5% efficiency.
Primary and secondary controls are digitalized, enabling excellent monitoring
and control characteristics. Also, the number of components has been reduced
by 40% compared to previous module generation - for highly reliable, long
life, trouble free DC power systems.
Front-to-back and back-to-front air flow modules, with chassis-integrated
heat sinks, gives the module the most suitable working environment and no
limitations in the scalability of the desired system solution.
The Flatpack2 module is connected in a CAN bus network for communication
with the controller and other modules.
A true plug-and-play connection system: reducing time-to-install related cost.
Flatpack2 is CE marked, UL recognized and NEBS certified for worldwide
installation
