2 Flatpack2 Rectifier & Converter Modules
12
User's Guide Flatpack2 Rectifier & Converter Modules,

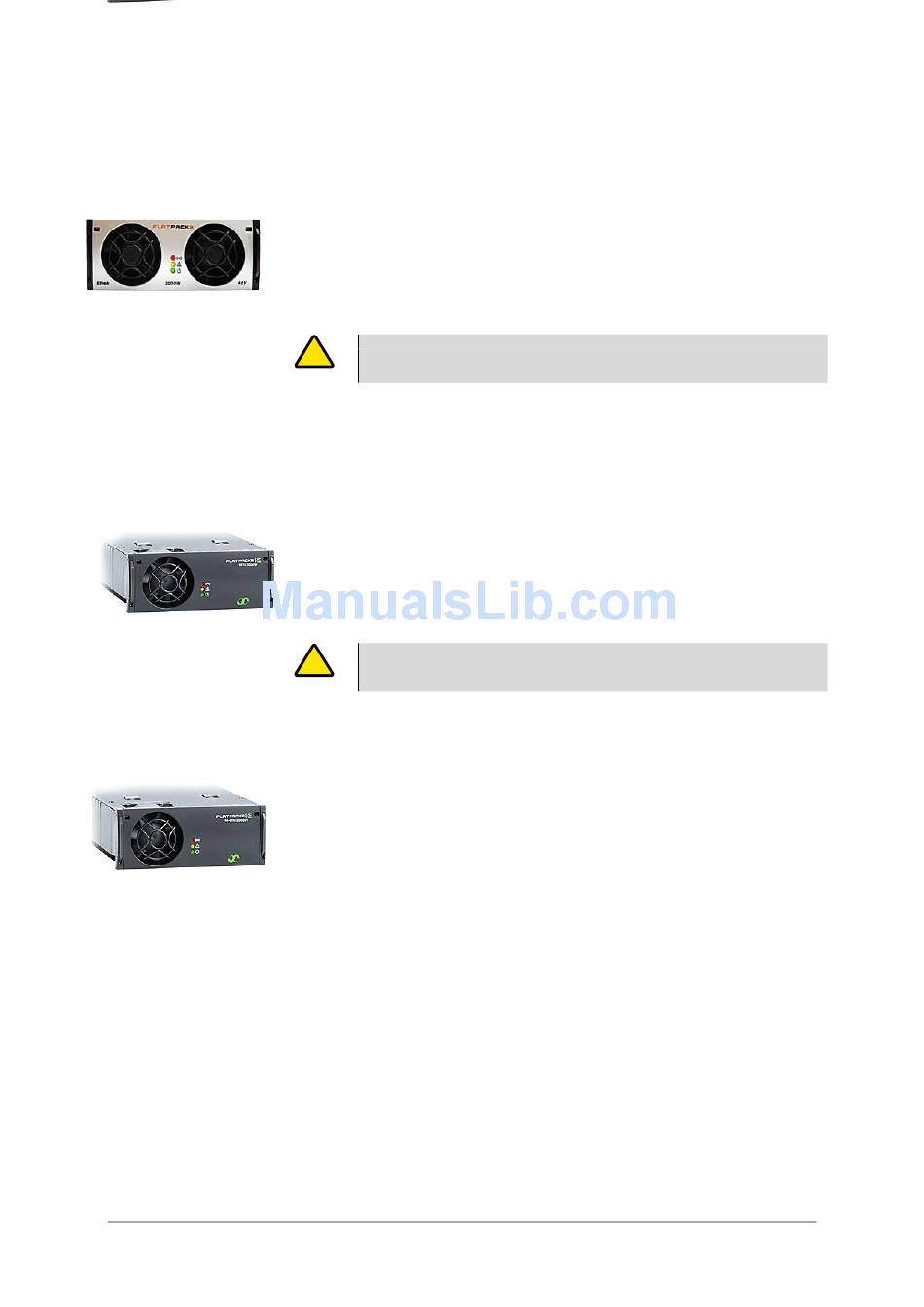

Flatpack2 Rectifier 48V, 3000W

Part number 241119.903. Flatpack2 DC power systems using
these modules are implemented by mounting the rectifiers in
dedicated High Current racks (4AC-HC-3kW Power Shelves,
Part 222058).
Refer to chapter "Specifications Flatpack2 Rectifier 48V,
3000W" on page 29.
CAUTION: Do not install 3kW rectifiers in power systems implemented with 2kW
!
power racks (4AC Power Shelves or 2AC Power Shelves); otherwise the product
guaranty becomes invalidated.
Device
Hazard
We recommend to use the more effective Flatpack2 48V,
3kW rectifier, part 241119.903 instead of 241119.100.

Flatpack2 Rectifier 48V, 3000W HE

Part number 241119.105. Flatpack2 DC power systems using
these modules are implemented by mounting the rectifiers in
dedicated High Current racks (4AC-HC-3kW Power Shelves,
Part 222058) or in High Current & Voltage racks (4AC-HC-
HVDC Power Shelves, Part 268035).
Refer to chapters "Flatpack2 Rectifier 48V, 2000W HE", page
11, for the High Efficiency feature, and to "Specifications
Flatpack2 Rectifier 48V, 3000W HE", page 30.
CAUTION: Do not install 3kW rectifiers in power systems implemented with 2kW
!
power racks (4AC Power Shelves or 2AC Power Shelves); otherwise the product
guaranty becomes invalidated.
Device
Hazard

Flatpack2 Rectifier 48-60V, 2000W HE

Part number 241115.705. In addition to the High Efficiency
feature — refer to chapter "Flatpack2 Rectifier 48V, 2000W
HE", page 11 — the rectifier's Wide DC Output Range (WOR)
enables support for battery banks of both NiCd and Pb. From
the controller, you can configure from 38 to 40 cells in NiCd
battery banks, and 24 or 30 cells in Pb battery banks.
The module will detect and auto-adjust its voltage mode at
start up.
For technical data, read chapter "Specifications Flatpack2
Rectifier 48-60V, 2000W HE" page 31.
350002.013, 8v1-2013-08
