The example in Figure 2 represents a typical hybrid, solar Flatpack2 PS system for DC
power supply of telecom and industrial equipment.
The system is fed from strings of solar panels (DC feed), and uses a diesel generator as
AC feed backup at night and during cloudy days, thus ensuring extra battery charging.
Extra AC feed backup can also be supplied by wind turbines or from the Mains grid.
The hybrid, solar system consists of paralleled solar chargers and rectifiers in power
shelves, Smartpack2-based system controllers and DC distribution unit. Battery banks,
LVD contactors, etc. are typically also a part of the system.
The Smartpack2 Master controller serves as the local user interface, while the
Smartpack2 Basic controller monitors the system's internal wiring. The I/O Monitor2 CAN
node provides the system with input monitoring and output controlling signals.
You can configure the system from a standard web browser, via WebPower, or installing
the PowerSuite application in a computer.
Wind Turbine
AC Mains Grid
(230VAC or 400VAC)
AC Generator
AC Supply
(Single- or three-
phase)
Solar Panels
DC Supply
(170-230VDC)

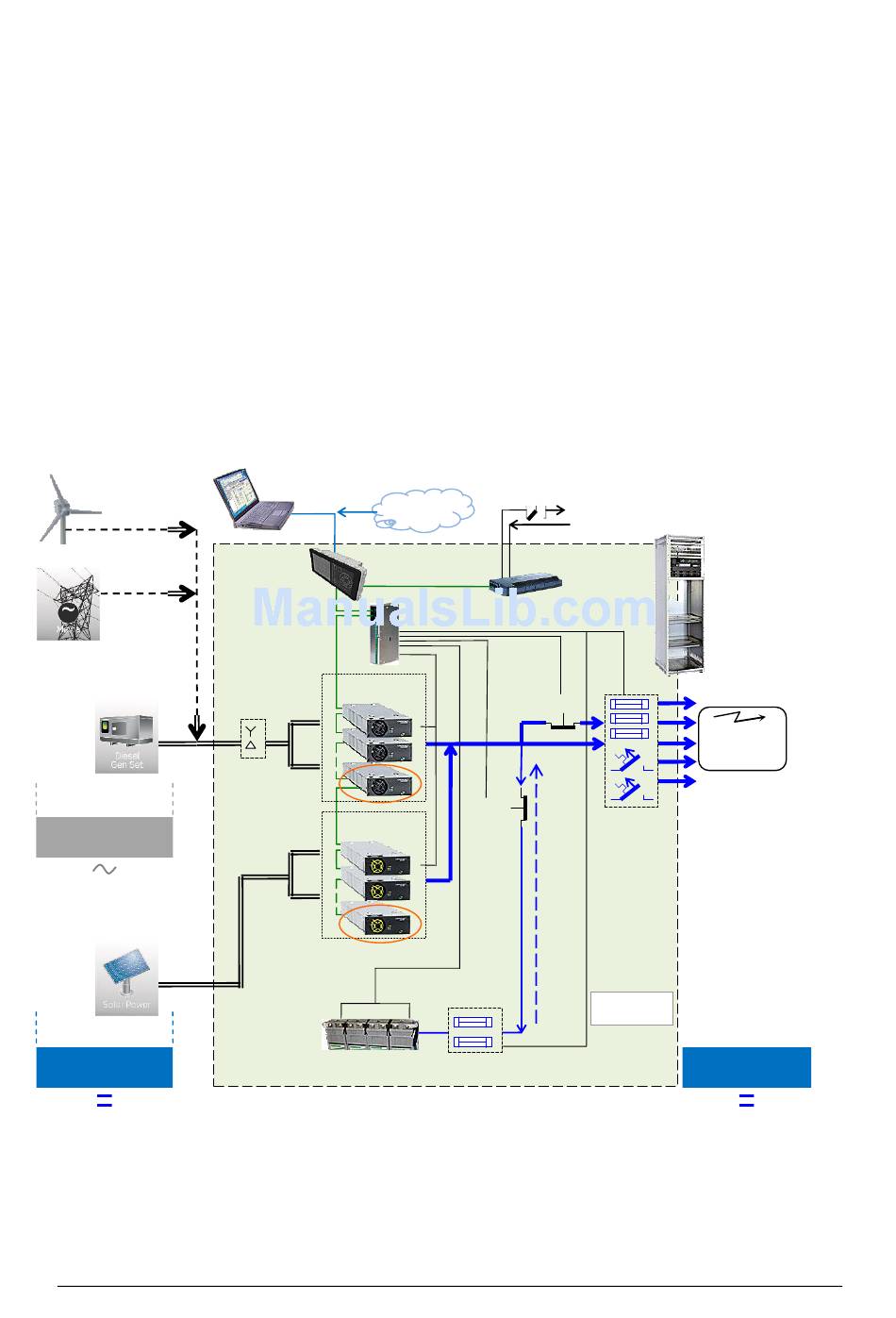

Figure 2 Typical hybrid, solar Flatpack2 PS system for DC power supply of telecom or
industrial equipment
User's Guide Flatpack2 Rectifier & Converter Modules,

Flatpack2 PS System ~ Hybrid Solar

WebPower
(web-based
user interface)
Internet
Ethernet
cable
Smartpack2
Master Controller
Smartpack2
Basic Controller
CAN Bus
Flatpack2 HE
Rectifiers
AC mains
supply
selector
Flatpack2 HE
Solar Chargers
Temp.
Sensors
Battery string #1
Alarm Outputs NC-C-NO
Config. Inputs
I/O Monitor2
CAN node
Fuse Alarm
LVLD
LVBD
Load Fuses
& MCBs
Distribution
Battery
Fuses
350002.013, 8v1-2013-08
1 Introduction
Flatpack2
Hybrid Solar
System
Telecom and
Industrial
equipment
DC
DC Supply
(48V)
