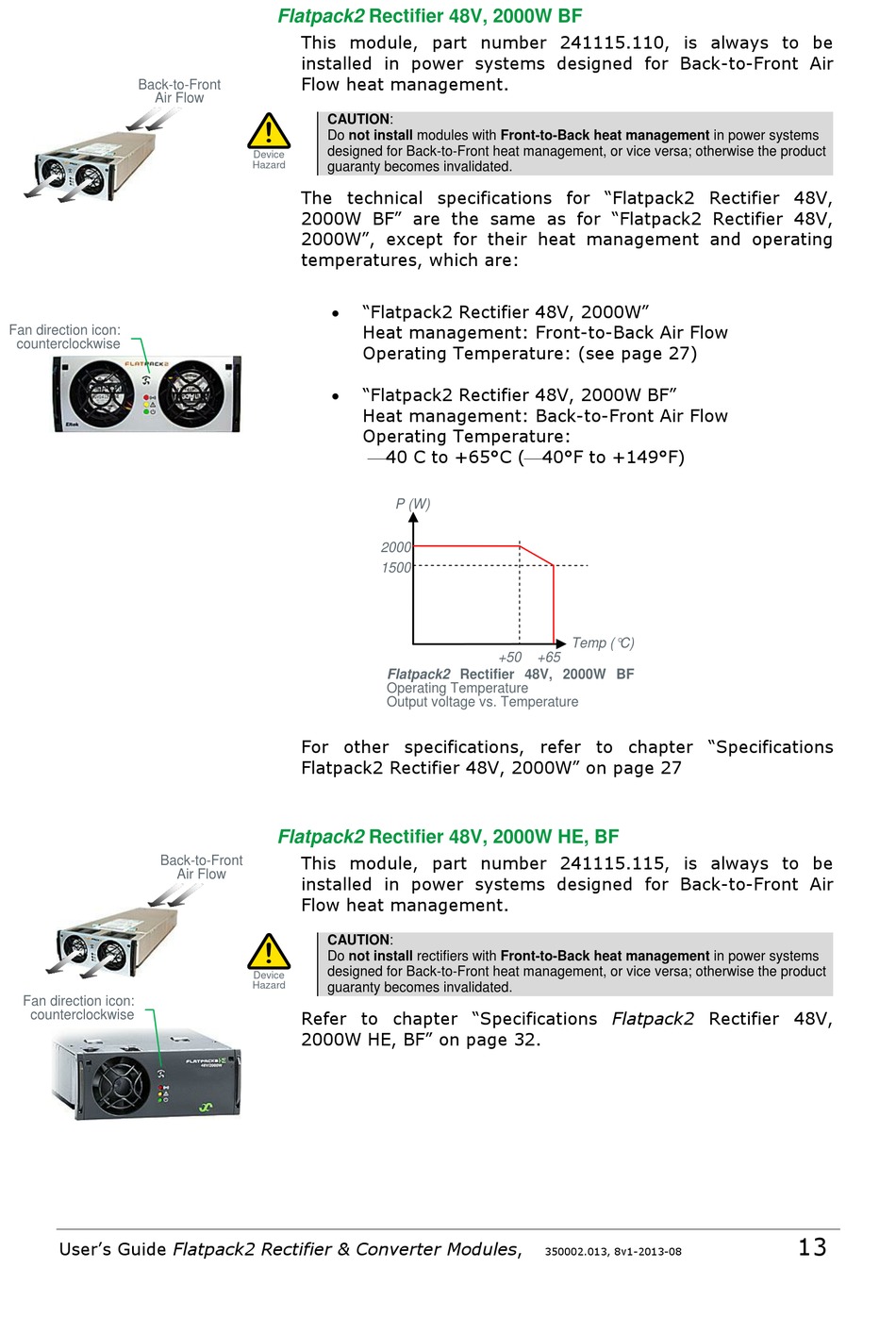

User's Guide Flatpack2 Rectifier & Converter Modules,

Flatpack2 Rectifier 48V, 2000W BF

This module, part number 241115.110, is always to be
installed in power systems designed for Back-to-Front Air
Flow heat management.
CAUTION:
!
Do not install modules with Front-to-Back heat management in power systems
designed for Back-to-Front heat management, or vice versa; otherwise the product
Device
Hazard guaranty becomes invalidated.
The technical specifications for "Flatpack2 Rectifier 48V,
2000W BF" are the same as for "Flatpack2 Rectifier 48V,
2000W", except for their heat management and operating
temperatures, which are:
 "Flatpack2 Rectifier 48V, 2000W"
Heat management: Front-to-Back Air Flow
Operating Temperature: (see page 27)
 "Flatpack2 Rectifier 48V, 2000W BF"
Heat management: Back-to-Front Air Flow
Operating Temperature:
40 C to +65°C (40°F to +149°F)
P (W)
2000
1500
Flatpack2 Rectifier 48V, 2000W BF
Operating Temperature
Output voltage vs. Temperature
For other specifications, refer to chapter "Specifications
Flatpack2 Rectifier 48V, 2000W" on page 27

Flatpack2 Rectifier 48V, 2000W HE, BF

This module, part number 241115.115, is always to be
installed in power systems designed for Back-to-Front Air
Flow heat management.
CAUTION:
!
Do not install rectifiers with Front-to-Back heat management in power systems
designed for Back-to-Front heat management, or vice versa; otherwise the product
Device
Hazard
guaranty becomes invalidated.
Refer to chapter "Specifications Flatpack2 Rectifier 48V,
2000W HE, BF" on page 32.
2 Flatpack2 Rectifier & Converter Modules
