1 Introduction
The example in Figure 3 represents a typical Flatpack2 PS system for DC power supply of
industrial equipment, in all areas of the industry, power generation and distribution.
The system is fed from an external AC mains supply, and consists of rectifiers in power
shelves, a system controller and DC distribution unit. Battery banks, LVD contactors, etc.
are typically also a part of the system.
The system controller monitors the whole system, and serves as the local user interface.
You can configure the system from computer, installing the MMT application.
Alarm Outputs NC-C-NO
AC Mains Grid
(230VAC or 400VAC
or
85-300VDC)
AC Supply
(Single- or 3-phase
or DC Input)
OR

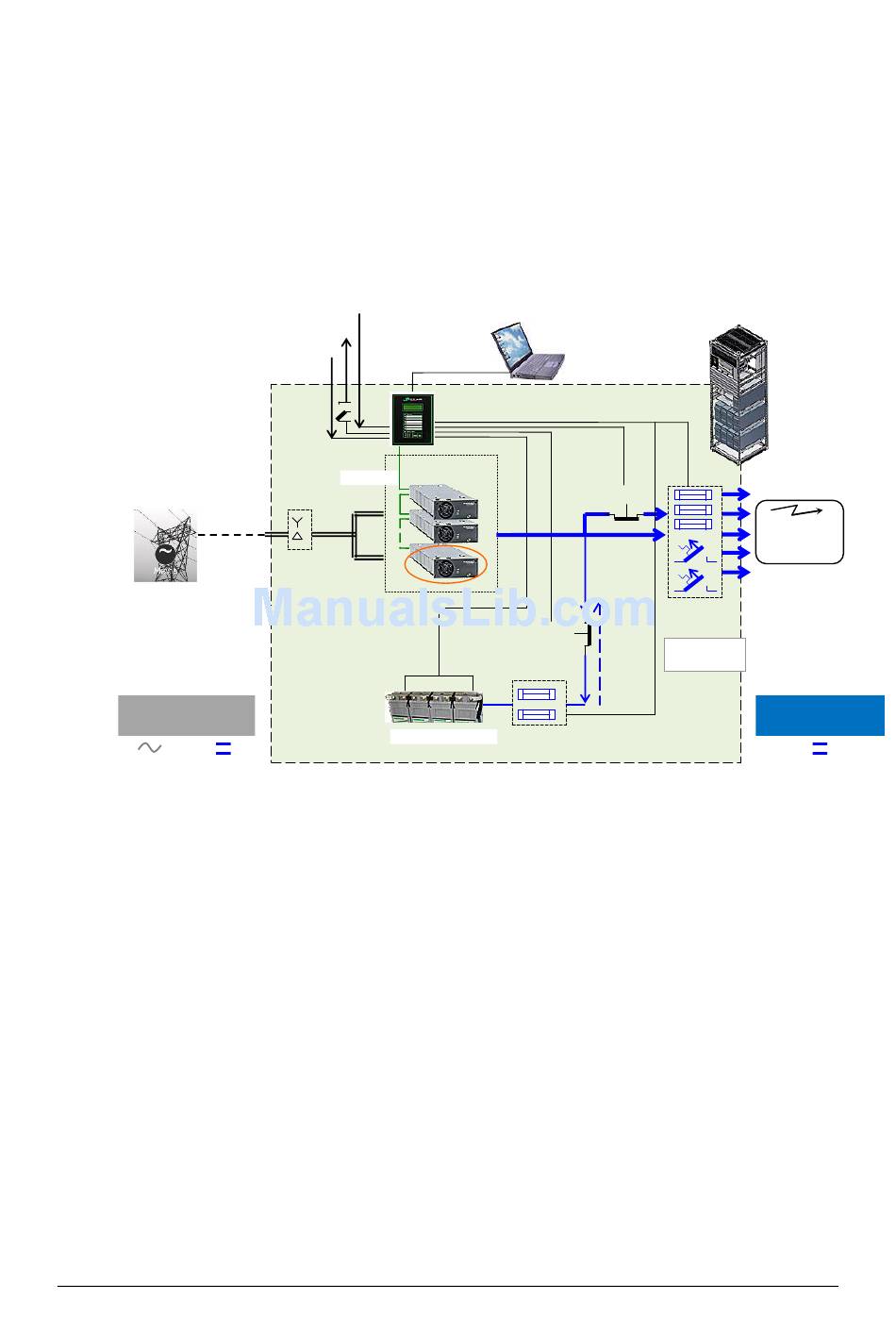

Figure 3 Typical Flatpack2 PS system for DC power supply of industrial equipment
8
User's Guide Flatpack2 Rectifier & Converter Modules,

Flatpack2 PS System ~ Industrial

Remote
Monitoring
Digital Inputs
Flatpack2 HE
CAN Bus rectifiers
AC mains
supply
selector
Symmetry
Alarm &
Temp. Sensor
Battery string #1
MMT
Application
USB cable
UPC4
controller
LVBD
Battery
Fuses
Flatpack2
Cabinetized
Fuse Alarm
LVLD
DC Load
Industrial
Equipment
Load Fuses
& MCBs
DC
distribution
(24V, 48V, 60V,
110V, 125V, 220V)
350002.013, 8v1-2013-08
DC Supply
