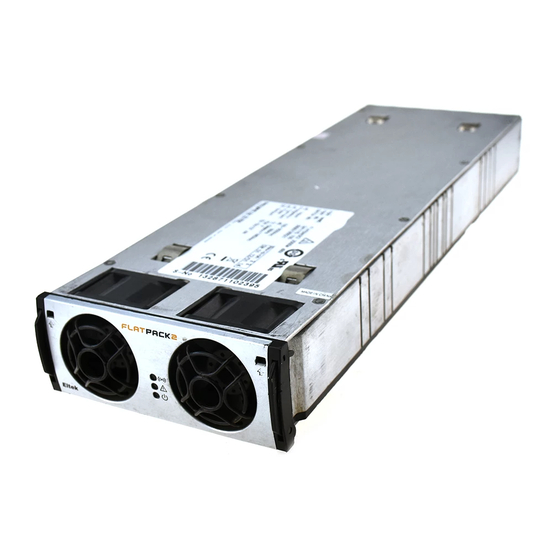

Eltek Flatpack2 Control User Manual
  1. Manuals
  2. Brands
  3. Eltek Manuals
  4. Control Unit
  5. flatpack2
  6. User manual

Eltek Flatpack2 Control User Manual

Web-based version
Hide thumbs Also See for Flatpack2 Control:
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
Important:
Flatpack2 Control AC cable is NOT INCLUDED into assembly. Please purchase yourself AC
cable required for your country/region and wire it in accordance with PCB marking: L, N and Ground.
Incorrect wiring of AC cable will highly possible damage Flatpack2 and Flatpack2 Control.
Important:
DC connector is not included into the assembly. Correct connector should be purchased and
soldered/screwed separately in accordance to your application. PCB is designed to support wide variety
of DC connectors. Alternatively, DC wires can be soldered directly to the PCB:
Flatpack2 Control
Web-based version
User Manual
Rev.2017-2021
v.1.0.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flatpack2 Control and is the answer not in the manual?

Questions and answers

Related Manuals for Eltek Flatpack2 Control

Summary of Contents for Eltek Flatpack2 Control

  • Page 1 Rev.2017-2021 Important: Flatpack2 Control AC cable is NOT INCLUDED into assembly. Please purchase yourself AC cable required for your country/region and wire it in accordance with PCB marking: L, N and Ground. Incorrect wiring of AC cable will highly possible damage Flatpack2 and Flatpack2 Control.
  • Page 2 1. Wiring and connecting the Flatpack2 Control AC wiring AC cable has to be purchased separately and securely wired to PCB before connecting Flatpack Control to Flatpack2 rectifier. Make sure AC wires are connected correctly. DC wiring You do not have to connect DC wires for initial Flatpack Control setup. DC connector and DC wiring can be completed later.
  • Page 3 This is Flatpack Control IP address, which is set automatically and cannot be changed. To access the Flatpack2 Control web setup page, open web browser in your device and type the following in the address field: http://IPaddress/dashboard (Using the above example screenshot the address is http://192.168.4.1/dashboard) The following page should appear, confirming you are successfully connected to setup: 2.3 Entering Flatpack2 Serial number...
  • Page 4 WiFi. It is also recommended to change SSID from default. Both operations are performed via 2.4GHz WiFi setup. Connect to Flatpack2 Control web setup page and scroll down to the following section: Enter new settings in SSID and SSID Pass fields.
  • Page 5 Make sure that custom SSID and Password is always saved somewhere. If those settings forgotten or lost and Flatpack2 Control web setup page cannot be accessed, then the default WiFi settings should be restored via Console. The following steps are required: 1.
  • Page 6 7. Type 9 in the command line at the top of the Serial Monitor and press Send button: The following output should appear in Serial Monitor window: 8. Disconnect cable from ESP32 USB and connect Flatpack2 Control to rectifier. Network settings should now be returned to default.
