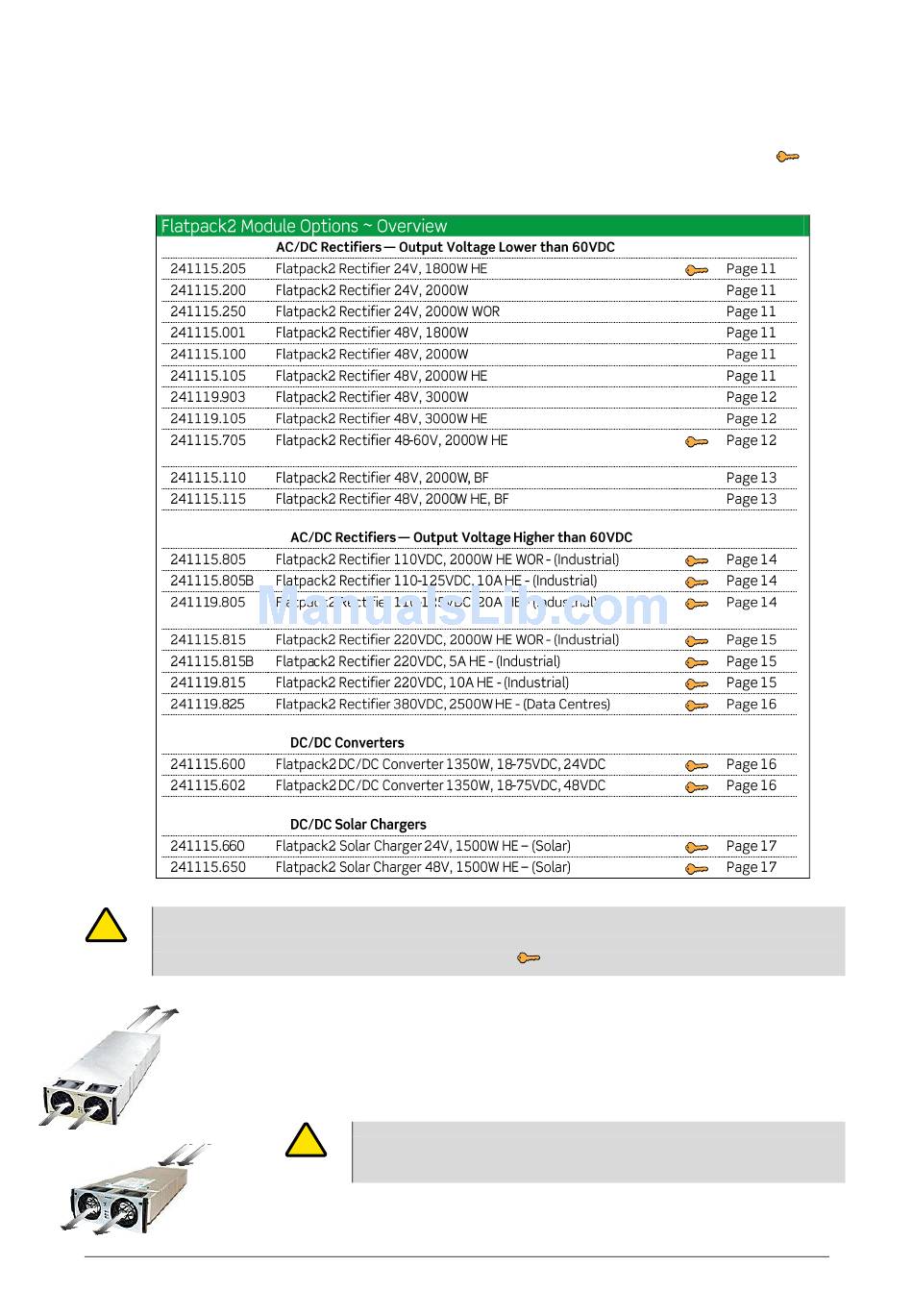

Module Options

The Flatpack2 modules are available in various options, offering different performance
and characteristics. Modules used in industrial applications are always keyed
factory. Read also chapter "Keying Scheme ~ Modules and Power Shelves", page 19.
CAUTION:
!
Never install Flatpack2 modules in power shelves with different output voltage than the module's. The module's
output voltage and the power system's output voltage must always be the same.
Device
Hazard
A keyed power shelf will only allow modules that are keyed (
Back-to-Front
Front-to-Back
Air Flow
10

Heat Management ~ FB or BF Air Flow

The Flatpack2 module options are always to be installed in power
systems designed for Front-to-Back Air Flow heat management,
except for modules specified for Back-to-Front Air Flow, e.g.
parts 241115.110 and 241115.115, refer to page 13.
!
Air Flow
Device
Hazard
User's Guide Flatpack2 Rectifier & Converter Modules,
CAUTION:
Do not install modules with Back-to-Front heat management in power systems
designed for Front-to-Back heat management, or vice versa; otherwise the product
guaranty becomes invalidated.
) for this specific shelf, to be plugged in the shelf.
