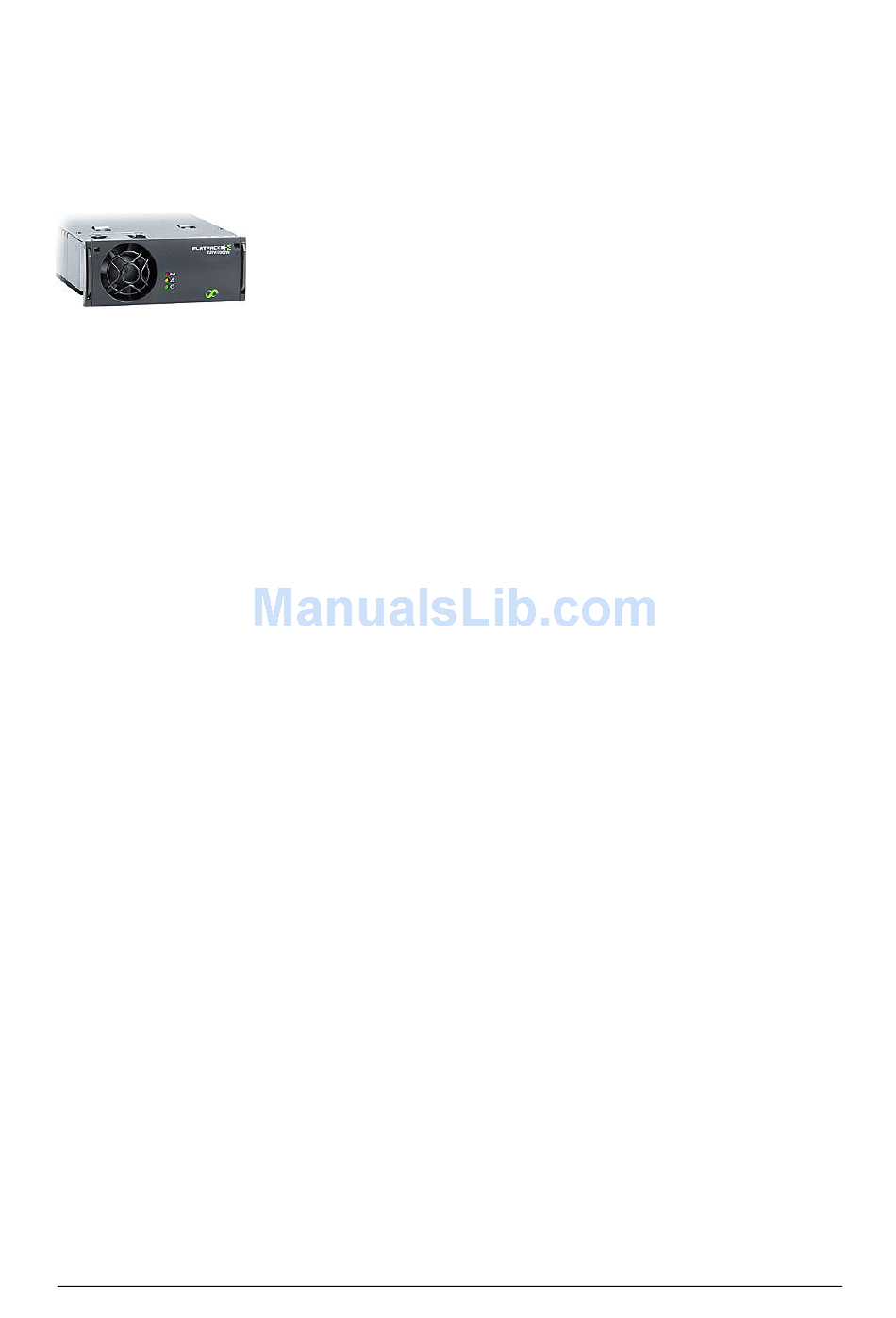

Flatpack2 Rectifier 220VDC, 2000W HE WOR - (Industrial)

Part number 241115.815. High efficiency rectifier for DC
power supply facilities with or without battery in all areas of
industry, power generation and power distribution.
With efficiency up to 95.3%, the losses have been reduced
by 50% compared to the current industry standard.
The HE rectifier also has an extremely high efficiency at low
load, which historically has been a drawback with most
modern soft switching technologies.
The wide DC output range (WOR) is suitable for charging
both NiCd and lead acid battery banks. For NiCd battery
banks the any number cells from 170 to 180 are fully
supported.
The rectifiers are to be mounted in dedicated High Current &
Voltage racks (4AC-HC-HVDC Power Shelves, Part 268035).
For technical data, read chapter "Specifications Flatpack2
Rectifier 220VDC, 2000W HE WOR - (Industrial)", page 34.

Flatpack2 Rectifier 220VDC, 5A HE - (Industrial)

Part number 241115.815B. This module is similar to the
241115.815, except that it implements a 5A constant current
limitation.
For description, refer to chapter "Flatpack2 Rectifier 220VDC,
2000W HE WOR - (Industrial)", page 15. For technical data,
read chapter "Specifications Flatpack2 Rectifier 220VDC,
2000W HE WOR - (Industrial)", page 34.

Flatpack2 Rectifier 220VDC, 10A HE - (Industrial)

Part number 241119.815. This module is similar to the
241115.815, except that it implements a 10A constant
current limitation.
For description, refer to chapter "Flatpack2 Rectifier 220VDC,
2000W HE WOR - (Industrial)", page 15. For technical data,
read chapter "Specifications Flatpack2 Rectifier 220VDC,
2000W HE WOR - (Industrial)", page 34.
