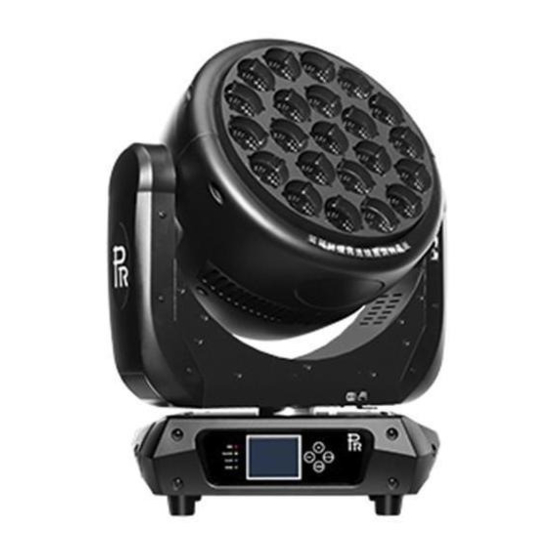

XLED 4022RZ
PR-8541
The user manual contains important information about the safe installation and use of a projector. Please read
and follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-8541 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting PR-8541

Summary of Contents for PR Lighting PR-8541

  • Page 1 XLED 4022RZ PR-8541 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com 1/22...
  • Page 2 INDEX 1. SAFETY AND WARNINGS 2. INSTUCTIONS 3. INSTALLATION 4. SETUP AND CONFIGURATION 5.OPERATION MENU 6. DMX PROTOCOL 7. TECHNICAL DATA ACCESSORIES The following items are supplied with the projector and please check: Name Quantity Unit Remark Power Cord XLR connector Safety cord User manual G clamps...

  • Page 3: Safety And Warnings

    1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Protective High Warning Flames Goggles Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector.
  • Page 4 cord supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ● power mains. After running for 30minutes, the temperature of the housing of the projector is 45 ℃.After stable operation , ●...

  • Page 5: Installation

    3. INSTALLATION RIGGING ● Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a projector with power while it is locked Safety Cord Damp Handle Control Menu please run the safety cord through the two holes for safety.

  • Page 6: Power Connection

    surface of black lighting pillar must be clear and no dust. WARNING: The projector MUST be lifted or carried by the HANDLES instead of clamps. ● .For safety the safety cord should afford 10 times the Projector’s weight. ● POWER CONNECTION ●...
  • Page 7 Connection b between contro oller and project tor and between n one projector r and another m must be made w with a twin-scree ened cable, wit each wire ha aving at least a 0 0.5mm in diam meter. Connectio on to and from t the projector is via cannon 5 p...

  • Page 8: Display Menu Functions

    Press ESC button on the left or the sign of Arrow on the bottom right to enter into menu. The ESC button is used to enter into main menus and exit the current menu. And use UP or DOWN button to select any menu desired and press ENTER button to confirm.

  • Page 9: Dmx Protocol

    5. DMX PROTOCOL 15 Channels Channel Function DMX Value Description Remark 0-255 ~540 horizontal scanning Tilt 0-255 ~240 vertical scanning Zoom 0-255 linear 0-127 128-192 Clockwise Rotation Fast-Slow 193-255 Anti-clockwise Slow-Fast Dimmer 0-255 0~100% linear 0-15 Open 16-131 Strobe Slow-Fast 132-139 Open 140-181...
  • Page 10 64-127 Curve2 (S) 128-191 Curve3 (J1) 192-255 Curve4 (J2) Notice: Channel 11 Color Temperature must be used together with RGBW 28 Channels Remar Channel Function DMX Value Description 0-255 ~540 horizontal scanning Pan Fine 0-255 horizontal scanning fine Tilt 0-255 ~240 vertical scanning Tilt Fine...
  • Page 11 White 3 0-255 0~100% linear No Change Color Temperature 1-255 10000K~2700K linear change 000-003 Normal 004-127 Color 1~32 128-131 Sound Chase 0 132-135 Sound Chase 1 136-139 Sound Chase 2 140-143 Sound Chase 3 144-147 Sound Chase 4 148-151 Sound Chase 5 152-155 Sound Chase 6 156-159...
  • Page 12 Remar Channel Function DMX Value Description 0-255 ~540 horizontal scanning Pan Fine 0-255 horizontal scanning fine Tilt 0-255 ~240 vertical scanning Tilt Fine 0-255 vertical scanning fine Zoom 0-255 linear Zoom Fine 0-255 fine 0 ~ 1mm 0-127 128-192 Clockwise Rotation Fast-Slow 193-255...
  • Page 13 000-009 No Effect 010-019 Effect 1 020-029 Effect 2 030-039 Effect 3 040-049 Effect 4 050-059 Effect 5 060-069 Effect 6 070-079 Effect 7 080-089 Effect 8 090-099 Effect 9 100-109 Effect 10 110-119 Effect 11 120-129 Effect 12 Color Effect Macro 130-139 Effect 13 140-149...
  • Page 14 248-255 Open 0-15 Open 16-131 Strobe Slow to Fast 132-139 Open 140-181 Fast open - Slow close Color Background Strobe 182-189 Open Slow close - Fast open 190-231 Open 232-239 Radom strobe 240-247 Open 248-255 Memory (display default values) 1-63 Curve1 (/) 64-127 Curve2 (S)
  • Page 15 140-181 Close quickly, then, open slowly 182-189 Open 190-231 Close slowly, then, open quickly 232-239 Open 240-247 Random strobe 248-255 Open Red 1 0-255 0~100% linear Green 1 0-255 0~100% linear Blue 1 0-255 0~100% linear …… …… …… …… Red 22 0-255 0~100% linear...
  • Page 16 Color Macro Speed 0-255 Slow-Fast Memory (display default values) 1-63 Curve1 (/) 64-127 Dimmer Curve Curve2 (S) 128-191 Curve3 (J1) 192-255 Curve4 (J2) 104 Channels Channel Function DMX Value Description Remark 0-255 ~540 horizontal scanning Pan Fine 0-255 horizontal scanning fine Tilt 0-255 ~240...
  • Page 17 1-255 10000K~2700K linear change 000-003 Normal 004-127 Color 1~32 128-131 Sound Chase 0 132-135 Sound Chase 1 136-139 Sound Chase 2 140-143 Sound Chase 3 144-147 Sound Chase 4 148-151 Sound Chase 5 152-155 Sound Chase 6 156-159 Sound Chase 7 160-163 Sound Chase 8 164-167...

  • Page 18: Technical Data

    6. TECHNICAL DATA INPUT VOLTAGES: 100V~240V AC，50/60Hz RATED POWER : 900W 220V/50Hz LAMP: RGBW 4 in1 LED 22pcs OSRAM Color Temperature 2700-10000K Manufacturers Rated Lamp Life 50000hours FUNCTIONS: Front lens panel’s bi-directional continuous rotation Electronic Strobe ( slowest 1time per second, fasted 25times per second) CONTROL: Linear focusing Linear dimming and pixel control...
  • Page 19 SIZES: 471.8 389.7 LED lamp placement 19/22...

  • Page 20: Light Output

    LIGHT OUTPUT: 60° LUX （lx） 2140 38° LUX （lx） 2241 8° LUX （lx） 82098 20525 9122 5131 3284 5° LUX （lx） 84823 21206 9425 5301 3309 DISTANCE （M） 1.36 2.72 4.07 5.43 6.79 5° DIAMETER （M） 2.47 4.94 7.41 9.87 12.34 8°...

  • Page 21: Circuit Diagram And Pcb Connections

    7. CIRCUIT DIAGRAM AND PCB CONNECTIONS CIRCUIT DIAGRAM ● 485A 21/22...
  • Page 22 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: WQ000001 Version: 20160831 (Preliminary）...
