ASSEMBLY

To make assembly easier, carefully read the
following assembly tips:
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until the vibration platform is fully
assembled.

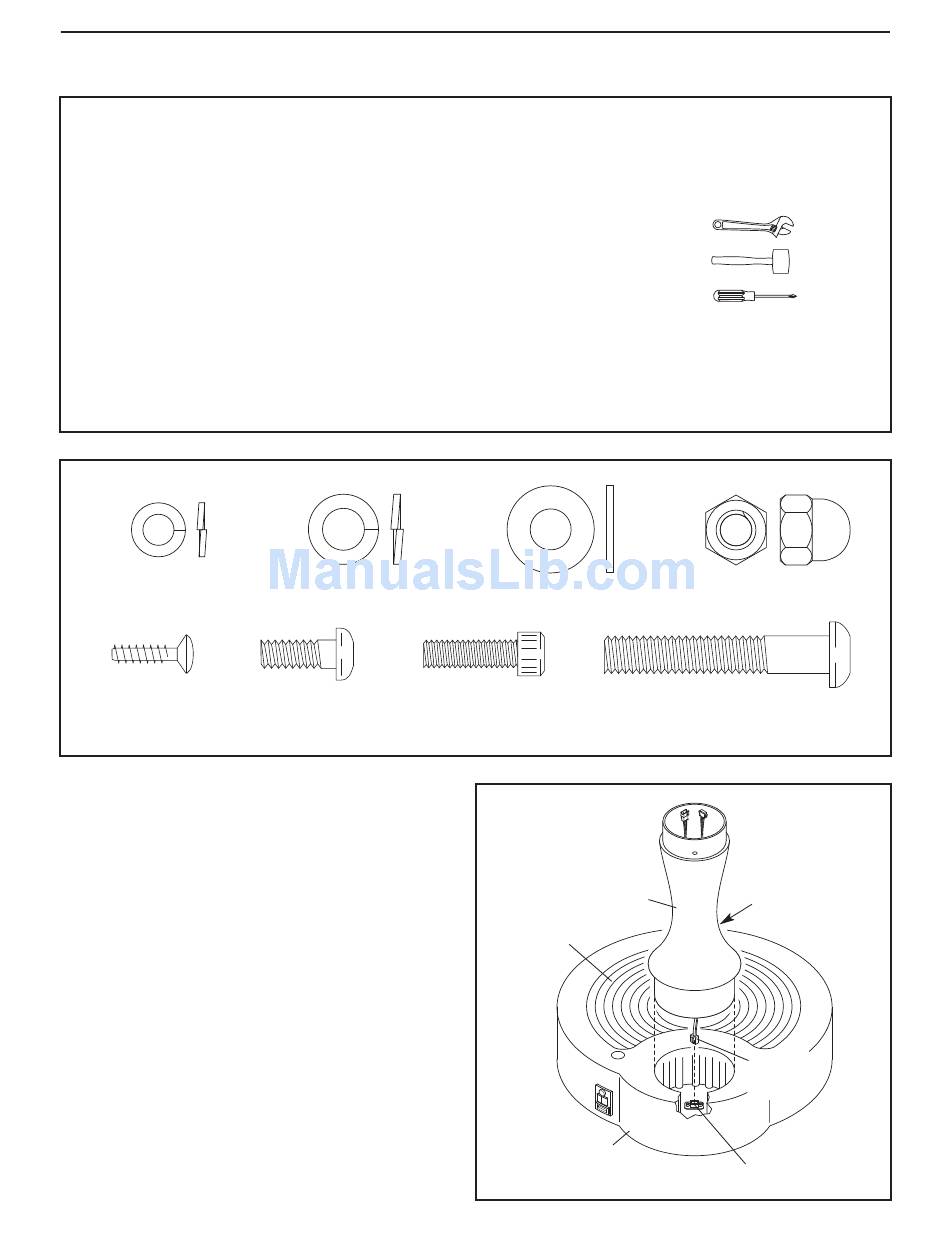

• See the drawings below to identify small parts
used in assembly. Note: If a part is not in the
hardware kit, check to see if it has been
preattached.
M6 Split Washer (M)
M5 x 14mm
Screw (G)
1. Orient the Lower Upright (B) so that the lower
control panel is facing the platform.
While a second person holds the Lower Upright
(B) near the Base (A), plug the upright wire into
the indicated jack in the Base.
Next, insert the Lower Upright (B) into the Base
(A).
M8 Split Washer (F)
M6 x 20mm
M6 x 16mm
Screw (H)
• Tighten all parts as you assemble them.
• Assembly may require the following tools (not
included):
one adjustable wrench
one rubber mallet
one Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches. To avoid
damaging plastic parts, do not use power tools.
M8 Washer (O)
Screw (L)
1
Platform
A
6
M8 Acorn Nut (P)
M8 x 48mm Screw (E)
Lower
Control
B
Panel
Upright
Wire
Jack
