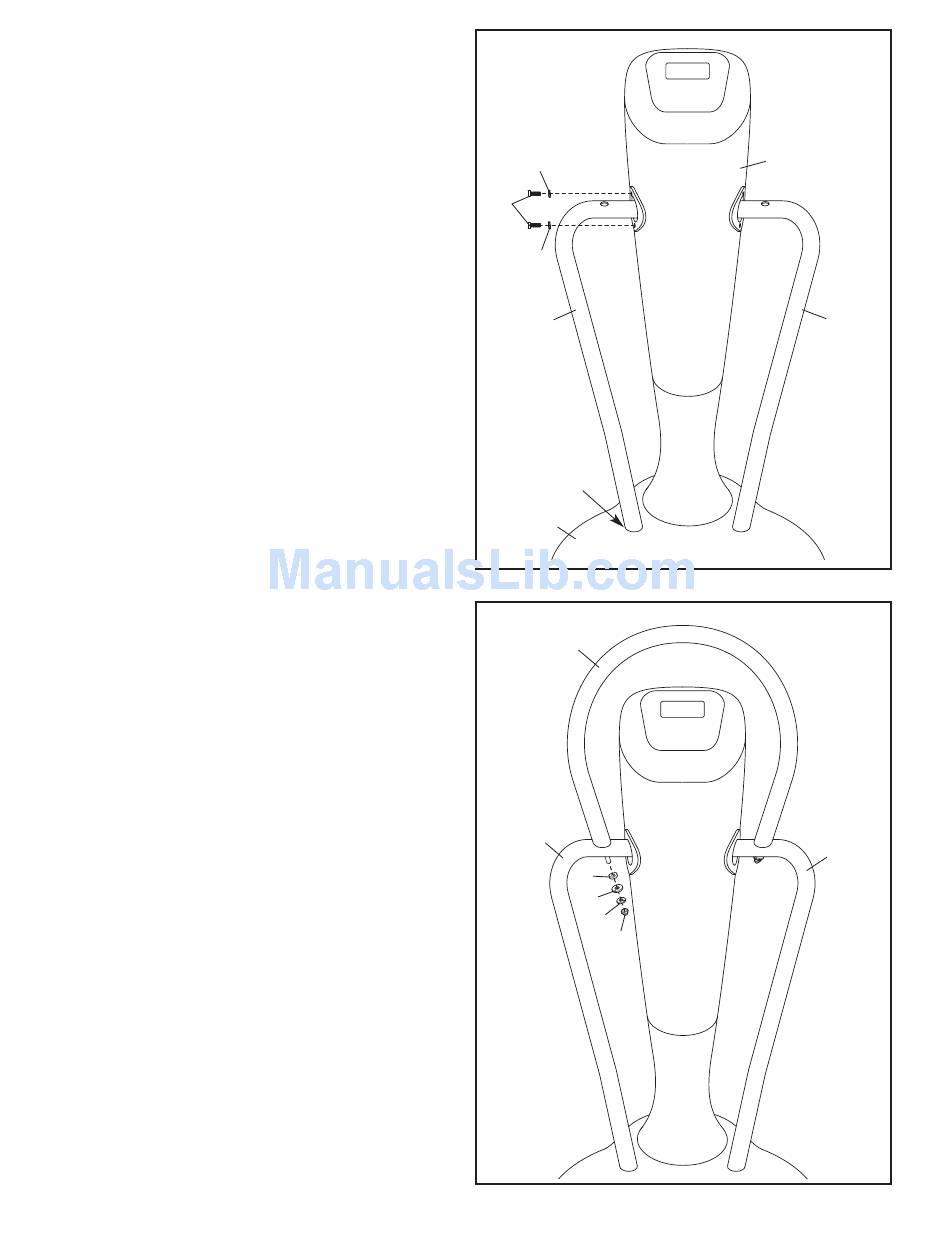

5. Insert the Left Upright Handle (J) into the indi-
cated hole in the Base (A).
Attach the Left Upright Handle (J) to the Upper
Upright (C) with two M6 x 20mm Screws (L) and
two M6 Split Washers (M).
Attach the Right Upright Handle (I) in the
same way.
6. Attach the Upper Handle (K) to the Right and
Left Upright Handles (I, J) with two Plastic
Washers (N), two M8 Washers (O), two M8 Split
Washers (F), and two M8 Acorn Nuts (P).
Make sure that all parts of the vibration plat-
form are properly tightened.
5
M
L
M
J
Hole
A
6
K
J
N
O
F
P
8
C
I
I
