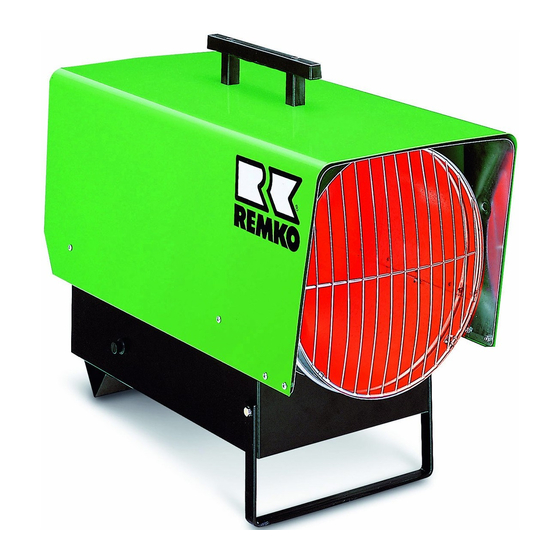

REMKO PGM 30 Operation Technology Spare List
Propane heater
Hide thumbs
Also See for PGM 30:
- Operation technology spare list (16 pages) ,
- Operating and installation instructions (24 pages)
Subscribe to Our Youtube Channel
Related Manuals for REMKO PGM 30
Summary of Contents for REMKO PGM 30
-
Page 1: Spare Parts
Propane – Heater REMKO PGM 30 REMKO PGM 60 Operation Technology Spare Parts REMKO – strong as a bear. Edition GB– L07... -
Page 2: Table Of Contents
Technical data Safety hints Action in the case of faults General hints Drawing PGM 30 Starting List of spare parts PGM 30 Putting out of service Drawing PGM 60 Important hints List of spare parts PGM 60 Maintenance Block diagram... -
Page 3: Safety Hints
Safety Hints General Hints When using this unit make sure always to observe the The unit may be operated only by those persons who applicable building and fire protection regulations as have been instructed regarding the unit’s operation well as the rules of the trade cooperative association. and the handling of liquid gas. -
Page 4: Starting
Starting Heating Operation Put the operating switch into position Make sure to charge a person with the operation of the "O" (= Off) and plug the mains into an unit and with the supervision of the reservoirs and of the appropriate mains socket with fault cur- bottle stock who has been instructed sufficiently regar- rent safety switch (230V/1~ 50 Hz) -
Page 5: Putting Out Of Service
Putting out of Service - remove protective cap (1) Close all the bottle valves. - press key (2) Let flame burn out. The fan should still run for a few - refit protective cap (1) seconds to exhaust the accumulated heat. -
Page 6: Block Diagram
The orderer or the customer must have properly filled out the PGM 30 “guarantee certificate” which is enclosed with every REM- KO automatic heater and must have returned it to REMKO PGM 60 GMBH & Co. KG within a timely acceptable period based on the sale and commissioning, to be entitled to possible gua- approx. -
Page 7: Action In The Case Of Faults
Action in the case of faults trouble: cause: – unit doesn’t start 1 – 2 – 3 – 4 – 7 – unit stops during operation 2 – 4 – 7 – 12 – 13 – fan blows, but gas supply is blocked 4 –... -
Page 8: Drawing Pgm 30
Drawing PGM 30 We reserve the right to make modifications in dimensions and construction in the interests of technical progress. -
Page 9: List Of Spare Parts Pgm 30
List of spare parts PGM 30 Fig.-No. Description EDV-Nr. transport handle 1101142 outside casing 1101405 combustion chamber 1101384 end plate, front 1101382 blow out protection grille 1101383 safety thermostat with sensitive element 1101197 inspection cover 1101385 terminal strip, 6er 1101366... -
Page 10: Drawing Pgm 60
Drawing PGM 60 We reserve the right to make modifications in dimensions and construction in the interests of technical progress. -
Page 11: List Of Spare Parts Pgm 60
List of spare parts PGM 60 Fig.-No. Description EDV-Nr. transport handle 1101142 outside casing 1101420 insulation 1101421 combustion chamber 1101422 gas burner 1101423 blow out protection grille 1101424 gas nozzle 1101426 gas pipe Z/D 1101458 angled screw coupling 1/8“x6mm 1101316 ignition electrode 1101280 ignition cable... - Page 12 REMKO GmbH & Co. KG Klima- und Wärmetechnik D-32791 Lage Im Seelenkamp 12 • D-32777 Lage Postfach 1827 • Telefon (0 52 32) 606 - 0 Telefax (0 52 32) 606260...
