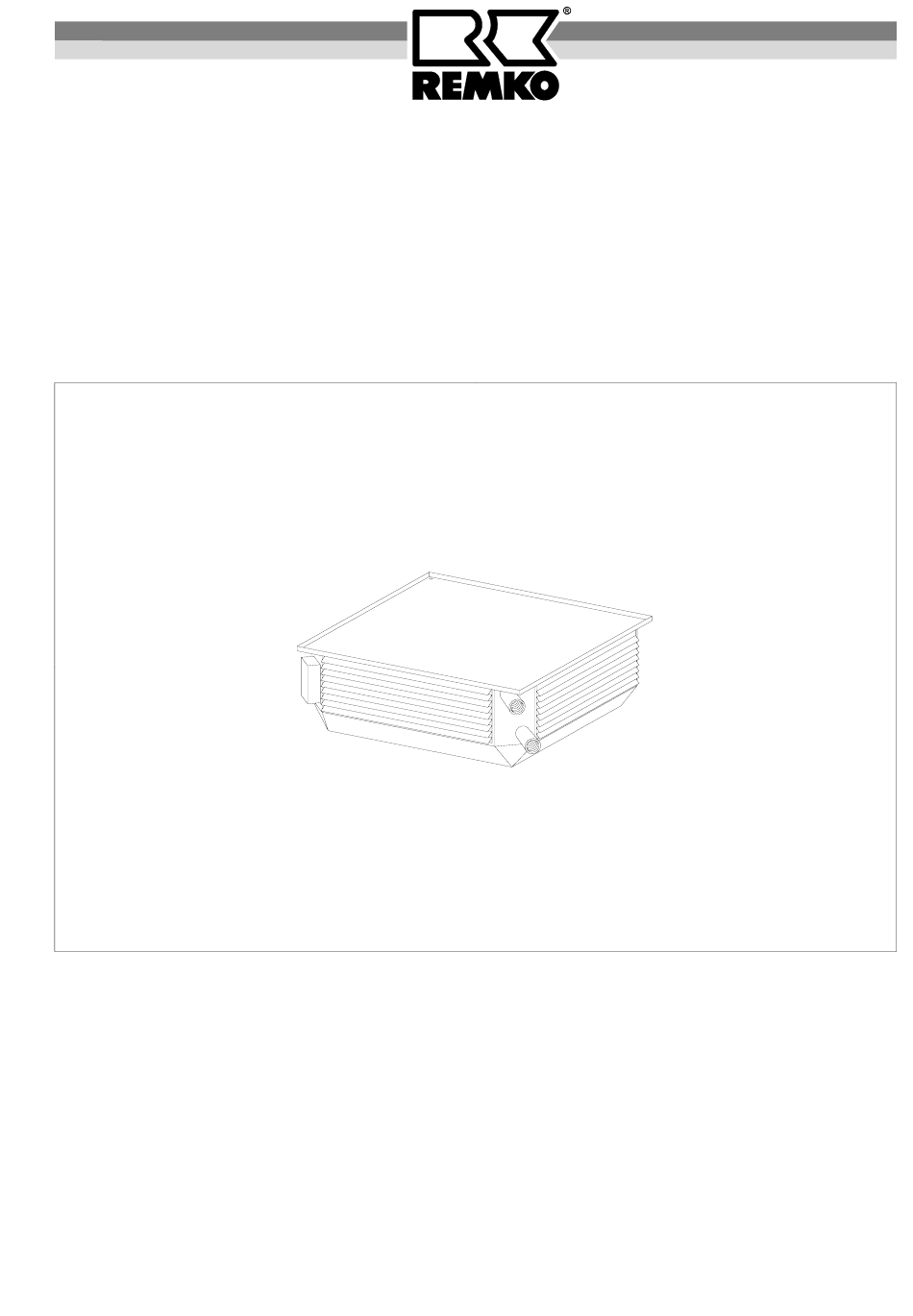

  • Page 1 REMKO PWW 5000 Warm Water Ceiling-Mounted Heating Units Operation Technology Spare Parts Edition GB – P09 REMKO – powerful like a bear.
  • Page 3: Table Of Contents

    Our guarantee becomes null and void if the unit is used, set up or maintained improperly, or if modifications are made to the supplied unit without our prior consent. Subject to alterations! Warm Water Ceiling-Mounted Heating Units REMKO PWW 5000 Contents Contents Page Page...
  • Page 4: Safety Instructions

    Safety Instructions Assembly Instructions Extensive tests have been conducted on the material, Follow these instructions to ensure that the units are assembled safely and effectively: functionality and quality of the units. ◊ Hazards may nevertheless arise if the unit is used by The heat-exchanger must be connected in such a way that vibrations from the unit may not be trans- persons not familiar with its operation or if the unit is not...
  • Page 5: Electrical Connection

    The electrical connection may only be made by The REMKO PWW unit should be connected via shut- trained and authorised personnel. off valve, automatic dehumidifier and screw attach- ments in the supply and return lines.
  • Page 6: Initial Operation

    2. Remove the air outlet grille to the front. exchanger with compressed air. Holding spring Service and Care Air outlet fin REMKO PWW units require virtually no maintenance when operated normally. They should, however, be checked regularly and, if necessary, cleaned, to ensure proper operation. Unit housing 1.
  • Page 7: Technical Data

    Technical Data PWW 5000 series Type 5102 5202 5402 5602 Electrical connection 400 / 3~, N, PE 400 / 3~, N, PE 400 / 3~, N, PE 400 / 3~, N, PE Frequency Power consumption 0,05 / 0,033 0,11 / 0,07...
  • Page 8: Technical Data Pww 5102 / 5202

    Technical Data PWW 5102 / 5202 2 steps 2 steps Type 5102 5202 Speed U/min. Volt 3 x 400 3 x 400 3 x 400 3 x 400 Electrical connection Frequency Power consumption 0,05 0,033 0,11 0,07 Rated current 0,13 0,07 0,28 0,15...
  • Page 9: Technical Data Pww 5402 / 5602

    Technical Data PWW 5402 / PWW 5602 2 steps 2 steps Type 5402 5602 Speed U/min. Volt 3 x 400 3 x 400 3 x 400 3 x 400 Electrical connection Frequency Power consumption 0,16 0,095 0,35 0,21 Rated current 0,38 0,19 0,78...
  • Page 10: Switching Unit Sw 2 380 Di

    SW 2 380 DI switching unit Design Group switching ◊ Rotary current 400 Volt, fan 2-speed, maximum The switching unit is suitable for group switching. Sev- electrical capacity 4 kW eral motors wired the same way can be connected to one switching unit.
  • Page 12 REMKO GmbH & Co. KG Klima- und Wärmetechnik 32791 Lage, Im Seelenkamp 12 32777 Lage, PO Box 1827 Phone +49 5232 606-0 +49 5232 606-260 E-mail info@remko.de Internet www.remko.de...
