Page 1: Spare Parts

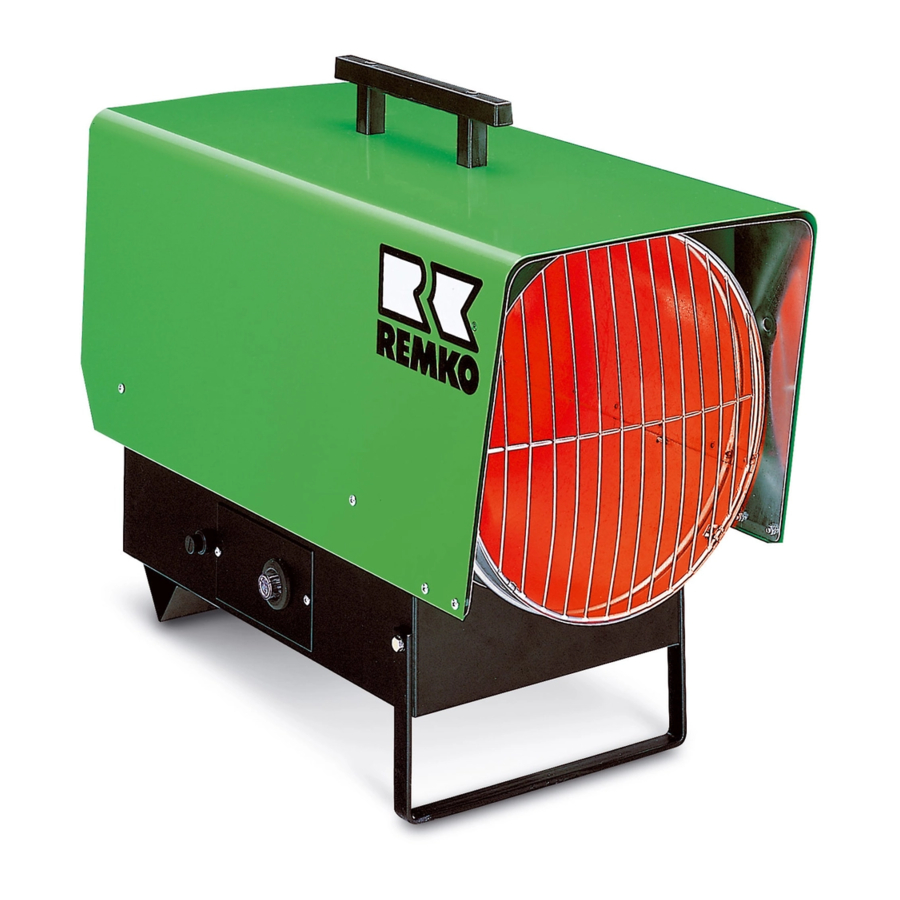

REMKO PGM 30 / 30 E REMKO PGM 60 / 60 E Propane gas heater Operation Technology Spare Parts REMKO - powerful like a bear. Edition GB – R02... -
Page 3: Table Of Contents
Our guarantee becomes null and void if the unit is used, set up or maintained improperly, or if modifications are made to the supplied unit without our prior consent. Subject to alterations! Mobile propane gas heater REMKO PGM 30 / 30 E REMKO PGM 60 / 60 E Contents Contents Page... -
Page 4: Safety Instructions
Safety Instructions Description of the Unit Make sure to observe relevant local building and fire The unit is a mobile, liquid gas-fired heater with a fan for protection codes and abide by professional association transporting hot air. It does not have a heat-exchanger. regulations when the unit is in operation. -
Page 5: General Instructions
General Instructions The unit may only be operated by persons who have Prior to operating the unit, the operating personnel received proper training in its operation and how to must check that the unit and its safety mechanisms handle liquid gas. are functioning properly and that the safety mecha- nisms have not been removed. -
Page 6: Gas Supply
Gas Supply Important Safety Instructions Connect the gas hose as follows: The gas tanks may not be placed directly behind the unit! 1. Connect the pressure controller Never heat up or de-ice the gas tank using the hot to the gas cylinder(s). air coming out of the unit. -
Page 7: Starting
Starting Setting and regulating the heat output 1. Set the heat output gradually using the adjustable Only individuals who have been sufficiently trained in “power regulation”. the respective area may operate the units and monitor the containers and storage of the cylinders. 2. -
Page 8: Unit Shut Down
Unit Shut Down Removing and Cleaning the Gas Burner 1. Shut off the gas supply and unplug the unit from the 1. Close all cylinder valves. power supply. 2. Let the flame burn out. 2. Remove the blow-out grille and the outside casing. 3. -
Page 9: Technical Data
For the guarantee to be valid, the customer must com- pletely fill out the “guarantee certificate” enclosed with all heating units and send it back to REMKO GmbH & Co. KG in a timely manner after purchasing of the unit and putting it into operation. -
Page 10: Exploded View Pgm 30 / 30 E
Exploded View PGM 30 / 30 E We reserve the right to make changes to dimensions and design in the interest of technical progress. -
Page 11: Spare Part List Pgm 30 / 30 E
Spare Part List PGM 30 / 30 E Description Ref. No. transport handle 1101142 outside casing PGM 30 1101405 outside casing PGM 30 E (stainless steel) 1101463 combustion chamber 1101384 end plate, front 1101479 blow-out protection grille 1101383 safety temperature limiter with sensor 1101197 inspection cover 1101385... -
Page 12: Exploded View Pgm 60 / 60 E
Exploded View PGM 60 / 60 E We reserve the right to make changes to dimensions and design in the interest of technical progress. -
Page 13: Spare Part List Pgm 60 / 60 E
Spare Part List PGM 60 / 60 E Description Ref. No. transport handle 1101142 outside casing PGM 60 1101420 outside casing PGM 60 E (stainless steel) 1101461 insulation 1101421 combustion chamber 1101422 gas burner 1101423 blow-out protection grille 1101424 gas nozzle... -
Page 14: Troubleshooting
Troubleshooting Problem: Cause: – unit doesn’t start 1 – 2 – 3 – 4 – 7 – unit stops during operation 2 – 4 – 7 – 12 – 13 – fan blows but gas supply is blocked 4 – 5 – 8 – 9 – 12 or the flame does not ignite –... -
Page 15: Maintenance Log
Maintenance Log Model: : ........ Model No.: : ........9 10 11 12 13 14 15 16 17 18 19 20 Clean unit -surface- Clean unit -interior- Clean fan blade Clean combustion chamber Clean gas burner Set/replace ignition electrode Check gas hose Check gas supply parts for leaks Check safety facility Check protection guards... - Page 16 REMKO GmbH & Co. KG Klima- und Wärmetechnik 32791 Lage, Im Seelenkamp 12 32777 Lage, PO Box 1827 Phone +49 5232 606-0 +49 5232 606-260 E-mail info@remko.de Internet www.remko.de...
