- Page 1 CLUX-42S 4x2 HDMI v1.3 Switcher Operation Manual CLUX-42S...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction 2. Features 3. Operation Controls and Functions 3.1 Front Panel 3.2 Rear Panel 4. Remote Control 5. RS-232 Remote Control Protocol 5.1 RS-232 transmission format 5.2 RS-232 command 6. Specifications 7. Connection and Installation 8. Cypress HDMI v1.3 Series... -
Page 3: Features
1. Introduction The is a high performance HDMI v1.3 Switcher with remote control. It allows your various HDMI source to share two HDTV display. Simply pressing one button to select your desired HDMI source for display on the HDTV. Each product in this series is compatible to HDMI v1.3 specifications, a cutting-age technology which defines the support to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz. -
Page 4: Operation Controls And Functions

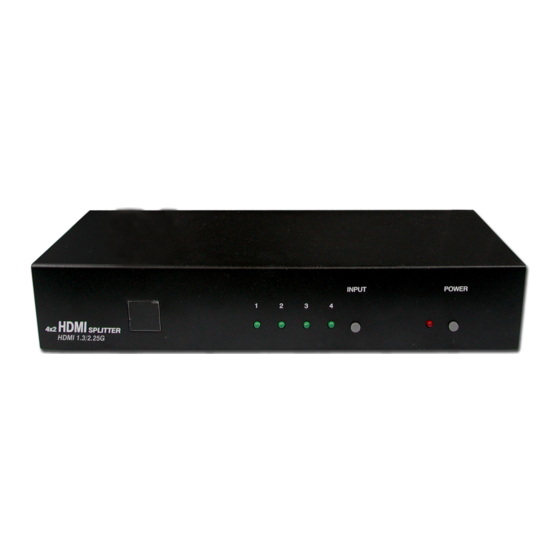

3. Operation Controls and Functions 3.1 Front Panel INPUT POWER HDMI SPLITTER HDMI 1.3/2.25G 1 Remote Control Sensor. 2 HDMI input Select/Indicator: Press the "Input" button sequentially to switch to your desired input (HDMI 1 to HDMI 4), the LED will illuminate to indicate which input source is selected 3 POWER Switch/Indicator: Press the "POWER"... -
Page 5: Remote Control
4. Remote Control 1 Power: Press the button to turn on/off the unit. 2 Direct input selector: Press 1, 2, 3 or 4 to select the desired input source. CR-23 5. RS-232 Remote Control Protocol The connection between splitter and remote controller with RS-232 modem cable. ns definition of modem cable Remote Controller Splitter... -
Page 6: Rs-232 Command
5.1 RS-232 transmission format: RS-232 command Operation POWER 00 Select power OFF POWER 01 Select power ON PORT 01 Select port 1 PORT 02 Select port 2 PORT 03 Select port 3 PORT 04 Select port 4 6. Specifications Frequency bandwidth 2.25Gbps (single link) Input port 4x HDMI female ports... -
Page 7: Connection And Installation
7. Connection and Installation DVD 1 DVD 3 DVD 2 LCD TV LCD TV... -
Page 8: Cypress Hdmi V1.3 Series
3x1 HDMI V1.3 Switcher CLUX-31SY 3x1 HDMI V1.3 Switcher CLUX-41SY 4x1 HDMI V1.3 Switcher CLUX-41AT 4x1 HDMI V1.3 Switcher with Digital Audio CLUX-42S 4x2 HDMI V1.3 Switcher CLUX-110S 1x10 HDMI V1.3 Splitter CLUX-210S 2x10 HDMI V1.3 Splitter CLUX-210T 2x10 HDMI V1.3 Splitter with Digital Audio CYPRESS TECHNOLOGY CO., LTD.
