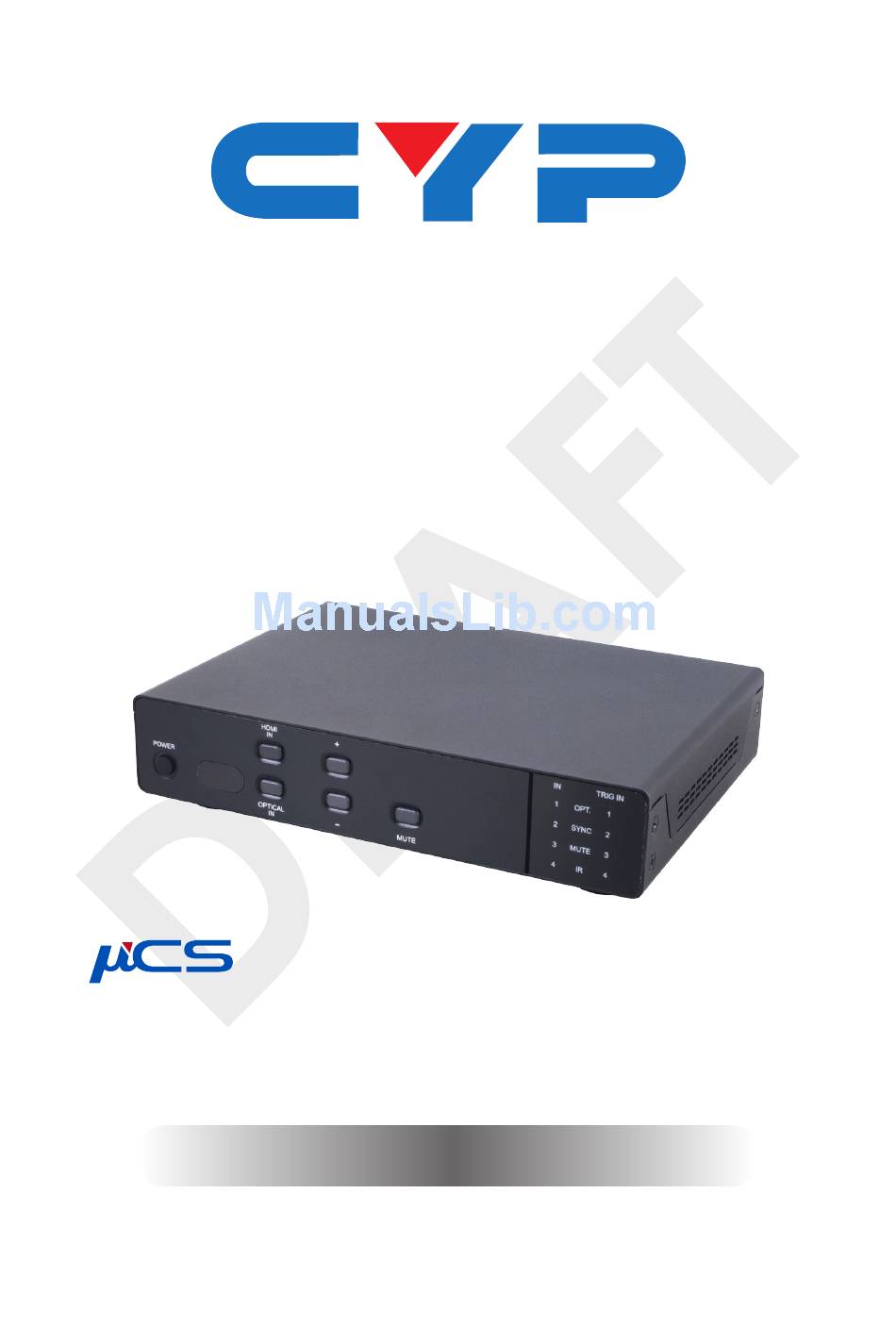

- Page 1 CDPS-UH4H1HFS 4 By 1 HDMI UHD Switcher with Fast Switching and Control System Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........5 6.3 Remote Control ........6 6.4 IR Cable Pin Assignment....7 6.5 RS-232 Protocol .........7 6.6 RS-232 and Telnet Commands ..8... -
Page 6: Introduction

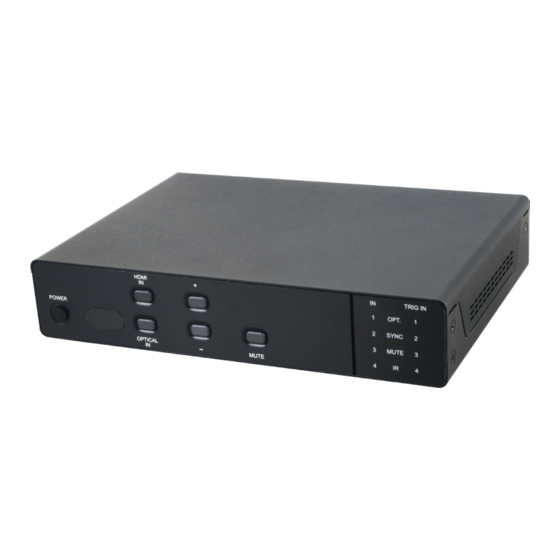

1. INTRODUCTION This 4 by 1 HDMI UHD Switcher allows four HDMI sources to be routed to an HDMI display. The Fast Switching Technology greatly reduces the time required to swap between inputs. The Control System not only provides direct control but also indirect control interfaces for all your connected devices. -
Page 7: Features
5. FEATURES • HDMI (with 3D & 4K2K supported) and HDCP compliant • Supports HDTV resolutions up to 4Kx2K (3840×2160@24/25/30 Hz & 50/60 Hz with YUV420 or 4096×2160@24 Hz & 50/60 Hz with YUV420) • Supports HDMI data rate from 300Mbps to 3Gbps and ‘Deep Color’ up to 1080p/36-bit •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI TRIG IN OPT. POWER SYNC MUTE OPTICAL MUTE POWER Button and LED: Press this button to switch On or set the device to standby mode. The LED will illuminate in green when the device is power On and if it is switched to standby mode the LED will turn red. - Page 9 MUTE Button and LED: Press this button to mute the SPEAKER output sound. The LED will illuminate when audio is set to mute either from front-panel’s mute button, IR, Telnet, WebGUI or RS-232 and when the input audio format is non-PCM the LED will be blinking. Press it again to unmute and the LED will switch off.
-
Page 10: Rear Panel
6.2 Rear Panel RS-232 INFRARED OPT. IN COM 1 COM 2 RELAY OUT 1 2 3 4 OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 CONTROL SPEAKER HDMI IN HDMI OUT DC 24V USB: This slot is reserved for firmware update use only. CONTROL: Connect from PC/Laptop with active internet service for Telnet or WebGUI control with RJ-45 terminated cable. -
Page 11: Remote Control
SPEAKER R/L: These slots are to connect with analog speakers through banana jack cables for audio signal output from HDMI or Optical. Note: These slots only support LPMC 2CH signal, other signals will be mute automatically. DC 24V: Connect the adaptor included in the package and connect to AC wall outlet for power supply. -
Page 12: Ir Cable Pin Assignment
6.4 IR Cable Pin Assignment IR Blaster Power IR Signal 6.5 RS-232 Protocol SWITCHER REMOTE CONTROLLER Assignment Assignment ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 13: Rs-232 And Telnet Commands
6.6 RS-232 and Telnet Commands COMMAND DESCRIPTION PARAMETER HELP (?) Show Command List NONE HELP N Show Descript Of N=COMMAND NAME Command Power Off (Standby) NONE Power On NONE MUTE Show AMP Mute Mode NONE MUTE N Set AMP Mute Mode N N=0 (UNMUTE), 1 (MUTE) SPEAKER Show Speaker Input Source NONE... - Page 14 OUTNAME Show Output Name NONE OUTNAME A N1 Set HDMI Output Name N1=ABCDEFGH (Max Length=8) RELAY RELAY CONTROL >RELAY N N1 N[PORT]=1~4 N1[MODE]=CLOSE, OPEN, TOGGLE, STATUS IREMIT SEND IR CONTENET >IREMIT N N1 N2 N3 N[LOCATION]=IR N1[PORT]=1~5 N2[MODE]=(0)CYP N3=IR DATA...
- Page 15 COMMAND DESCRIPTION PARAMETER TRIGGER N N1 N2 TRIGGER >TRIGGER N N1 N2 STATUS&CONFIGURE N[FUNC] = (STATUS)SHOW PHYSICAL IO STATUS (INFO)SHOW CONFIGURE INFOMATION (ACTIVE)ENABLE/ DISABLE TRIGGER FUNCTION (MODE)SET CONDITION OF TRIGGER EVENT N1[PORT]=1-4 N2[STATUS] = NONE [INFO] = NONE [ACTIVE] = (DISABLED),(ENABLED) [MODE] = (RAISING)EVENT...
-
Page 16: Delete Command
COMMAND DESCRIPTION PARAMETER COMCONF N N1 N2 DRIVER RS232 CONFIG SHOW COM PORT N3 N4 N5 SETTINGS >COMCONF N N1 N[LOCATION]=COM N1[PORT]=1~2 COM PORT SETTING >COMCONF N N1 N2 N3 N4 N5 N[LOCATION]=COM N1[PORT]=1~2 N2[BAUDRATE]=4800, 9600, 19200, 38400, 57600, 115200 N3[DATA LEN]=5, 6, 7, 8 N4[PARITY]=(0)NONE (1) ODD (2)EVEN... - Page 17 COMMAND DESCRIPTION PARAMETER MACRO ADD N N1 Add Macro N= Macro ID (1~15) N2 N3 N4 N5 ..N14 N1= Action ID (1~16) N2= CMD ID (1~128) N3= Delay in millisecond (0,100~65535) N4= System CMD N5= Telnet IP string, COM port, IR, Relay N6=10~65000 MACRO del N N1 Delete Macro Command...
-
Page 18: Software Application
6.7 Software Application Please download the software from www.cypress.com.tw with file name CDPS V2.000 and save it in a directory where you may use it later. Connect the HDMI UHD Switcher with Fast Switching and Control System with an active network system and open the CDPS V2.000 application from the directory in a PC/Laptop. -
Page 19: Telnet Control
6.8 Telnet Control To access the Telnet control in Windows 7, click on the 'Start' menu and type "cmd" in the Search field then press enter. Under Windows XP go to the 'Start' menu and click on "Run", type "cmd" with then press enter. Under Mac OS X, go to Go→Applications→Utilities→Terminal See below for reference. - Page 20 This will bring us into the unit which we wish to control. Type "help" to list the available commands. Note: Commands will not be executed unless followed by a carriage return. Commands are case-sensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.
-
Page 21: Webgui Control
6.9 WebGUI Control On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address (default setting IP: 192.168.1.50 ) on the web address entry bar. A security page will appear to ask for User and Password, please key in “Admin”... - Page 22 Click on Audio to adjust audio format, sound system, speaker mode and volume. Click on EDID to select EDID setting on all inputs or appoint input(s).
- Page 23 Click on Macro Settings to insert up to 16 commands into a Macro button. Click on Command Settings to edit or remove the commands up to 128 sets.
- Page 24 Click on Network Configuration to set the device’s IP configuration. Once the changes are saved the system will reset the IP address on device automatically and user will need to re-enter the IP address to continue the WebGUI control. Click on System Settings to trigger device power or reset the settings back to default.
-
Page 25: Connection Diagram
7. CONNECTION DIAGRAM RS-232 Equipped PC/Laptop RS-232 Device to IR Blasters Amplifier be Controlled RS-232 Optical Output Connection Network Router RS-232 INFRARED OPT. IN COM 1 COM 2 RELAY OUT 1 2 3 4 OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 CONTROL SPEAKER HDMI IN... -
Page 26: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 340 MHz/10.2 Gbps Input Ports 4×HDMI, 4×Triggers (0~15V), 1×Control (RJ- 45), 2×COM (Terminal Block), 1×RS-232 (3.5mm), 1×USB (Service only) Output Ports 1×HDMI, 1×R/L (Banana Jacks), 5×IR, 4×Replays IR Out Frequency 30~50 kHz Baud Rate Up to 115200 bps Power Supply 24 V/3.75 A DC (US/EU standards, CE/FCC/... -
Page 27: Supported Resolutions
8.2 Supported Resolutions Resolution Input Output 640×480@60/72/75 √ √ 720×480@60 √ √ 720×576p@50 √ √ 800×600@60/72/75 √ √ 1024×768@60/70/75 √ √ 1280×720@50/60 √ √ 1280×720p@60 √ √ 1280×768@60 √ √ 1280×800@60 √ √ 1280×1024@60 √ √ 1360×768@60 √ √ 1600×1200@60 √... -
Page 28: Supported Audio Formats
8.3 Supported Audio Formats OUTPUT AUDIO FORMAT (INPUT) HDMI SPEAKERS LPCM 2CH √ √ (HDMI/Optical) LPCM 5.1CH √ (HDMI) (if AUDIOFMT BYPASS) (2CH only) LPCM 7.1CH √ (HDMI) (if AUDIOFMT BYPASS) (2CH only) Dolby Digital 2/5.1CH √ & DTS 2/5.1CH (if AUDIOFMT BYPASS) (Mute) (HDMI/Optical) -
Page 29: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Theater System EDID Extended Display Identification Data Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Internet Protocol Infrared Optical Universal Serial Bus... - Page 32 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
