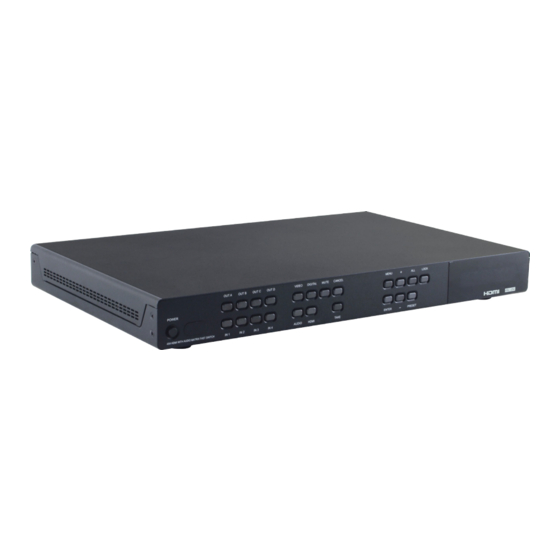

CDPS-U4H4HSA
4 by 4 HDMI with Audio Matrix Fast Switch
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-U4H4HSA and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CDPS-U4H4HSA

Summary of Contents for CYP CDPS-U4H4HSA

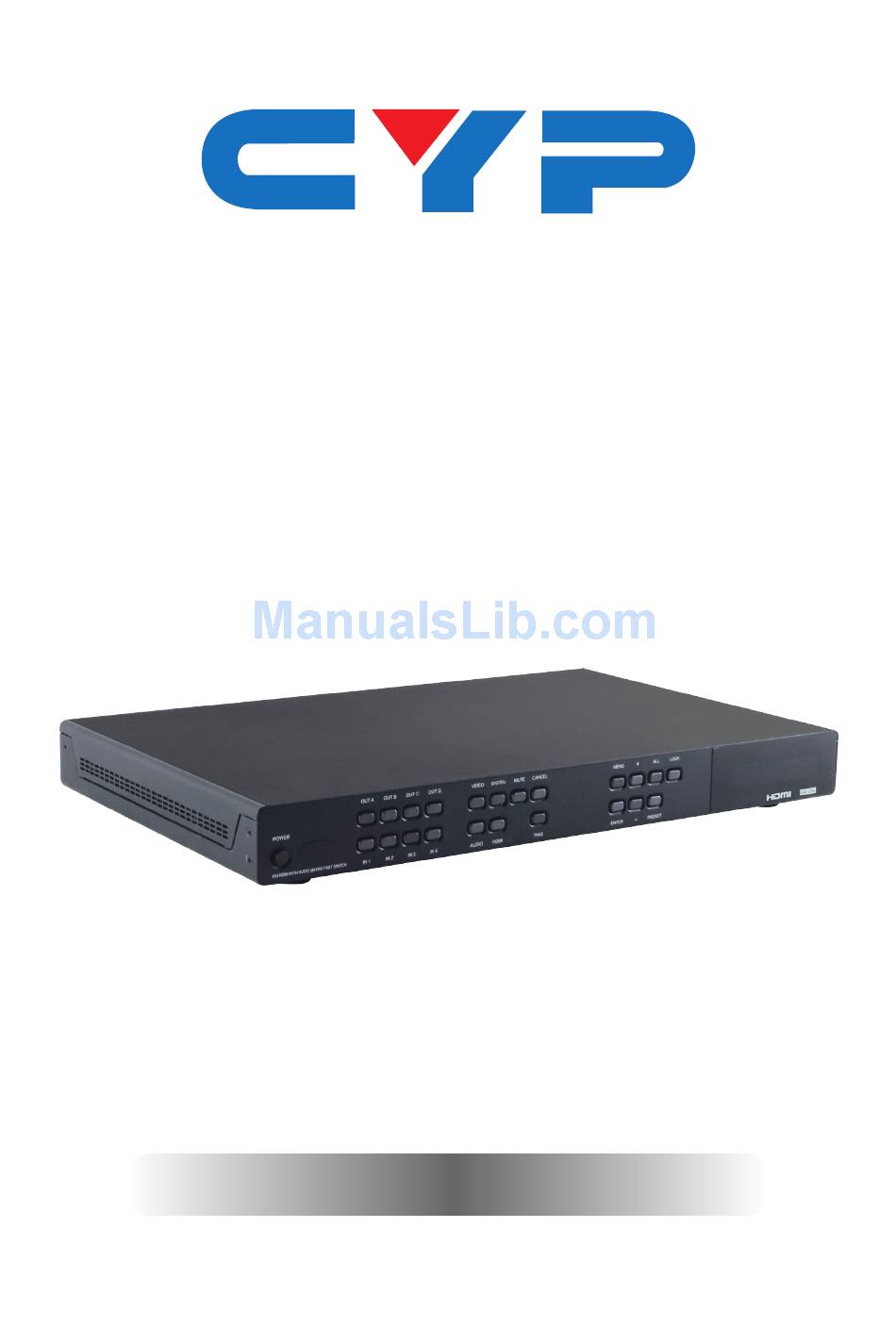

  • Page 1 CDPS-U4H4HSA 4 by 4 HDMI with Audio Matrix Fast Switch Operation Manual Operation Manual...

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 OSD Menu .........5 6.4 Remote Control ......11 6.5 IR Cable Pin Assignment....12 6.6 RS-232 Protocols ......12...

  • Page 6: Introduction

    1. INTRODUCTION The 4 by 4 HDMI matrix with audio which allows HDMI and audio signal to be routed to and displayed on connected HDMI displays and or audio output equipments simultaneously. Additional audio selection and extension allows users to utilise both video and audio more efficiency.

  • Page 7: Features

    5. FEATURES • HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant • Supports four HDMI inputs and four HDMI outputs • Supports external audio inputs and outputs for HDMI outputs selection and additional audio extension up to 300M/984ft with sampling rate at 48kHz •...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OUT A OUT B OUT C OUT D VIDEO DIGITAL MUTE CANCEL MENU LOCK POWER 4X4 HDMI WITH AUDIO MATRIX FAST SWITCH IN 1 IN 2 IN 3 IN 4 AUDIO HDMI TAKE ENTER PRESET...

  • Page 9: Rear Panel

    +/-: Press these buttons to move up/down under menu selection. PRESET: Press “PRESET”, the OLED menu will show Preset then select IN 1~4. Preset 5~8 selection, press IN 1/2/3/4 twice. Press “TAKE” to confirm the selection or press “CANCEL” to exit the selection. All: Press this button to select all outputs with an input selection.

  • Page 10: Osd Menu

    RS232: Connect from PC/Laptop for RS-232 command sending to control the device. IR IN: Connect the IR Receiver included in the package for IR signal receive from the included remote control. DC 12V: Connect the adaptor with power cord included in the package and connect to AC wall outlet for power supply.
  • Page 11 Main Menu Sub Menu Description Default 8/2D/PCM/ Standard EDID, Y420 Content: deep color/2D3D/ audio/native resolution Exit EDID IN1 Same EDID Select Input 1’s EDID Same EDID EDID IN2 Same EDID Select Input 2’s EDID Same EDID EDID IN3 Same EDID Select Input 3’s EDID Same EDID EDID IN4...
  • Page 12 Main Menu Sub Menu Description Default Audio HDMI 1 IN/OUT default No.1 A=H1, B=H2, Preset-- C=H3, D=H4 HDMI HDMI 2 No.2 A=H4, B=H1, C=H2, D=H3 HDMI 3 No.3 A=H3, B=H4, C=H1, D=H2 HDMI 4 No.4 A=H2, B=H3, C=H4, D=H1 HDMI 5 No.5 A=H4, B=H3, C=H2, D=H1...
  • Page 13 Main Menu Sub Menu Description Default Audio OPTICAL 5 No.5 A=O4, B=O3, Preset-- C=O2, D=O1 OPTICAL OPTICAL 6 No.6 A=O1, B=O4, C=O3, D=O2 OPTICAL 7 No.7 A=O2, B=O1, C=O4, D=O3 OPTICAL 8 No.8 A=O3, B=O2, C=O1, D=O4 Exit HDCP Set IN1 in Apple/Standard Standard Input Standard/...
  • Page 14 Main Menu Sub Menu Description Default Exit Network Link Network status DHCP,Static Status or Not Linked Get IP Mask Get Netmask Gate Get Gateway System MAC Address Exit Source IN1 On/Off , IN1 , IN2 detect source with/ Detection IN2 On/Off without the signal &...
  • Page 15 Main Menu Sub Menu Description Default Sink D Info Same Sink Detect and Analysis Output A Info D display's EDID Firmware FW Version Display the model number and FW version Update FW Update Exit Factory Do Reset Do system Reset Reset Exit Exit...

  • Page 16: Remote Control

    6.4 Remote Control POWER: Press this button to switch the system ON/OFF. OUT A IN 1 OUT A~D: Press these buttons once OUT B TAKE IN 2 a time along with an IN button to select an input source for an output OUT C CANCEL IN 3...

  • Page 17: Ir Cable Pin Assignment

    6.5 IR Cable Pin Assignment IR Receiver IR Signal Power Grounding 6.6 RS-232 Protocols CDPS-U4H4HSA Remote Control Assignment Assignment ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...

  • Page 18: Rs-232 & Telnet Commands

    6.7 RS-232 & Telnet Commands Command Name Description Description of parameter POWER OFF NONE POWER ON NONE IPCONFIG DISPLAY THE CURRENT NONE IPCONFIG SIPADDR XXX.XXX. SET ETHERNET IP XXX=0~255 XXX.XXX ADDRESS SNETMASK XXX. SET ETHERNET XXX=0~255 XXX.XXX.XXX NETMASK SGATEWAY XXX. SET ETHERNET XXX=0~255 XXX.XXX.XXX...
  • Page 19 Command Name Description Description of parameter AHC N SET HDMI OUTPUT C N=1-4/H1~H4, 5~8/ O1~O4, , 0=MUTE AUDIO SOURCE AHD N SET HDMI OUTPUT D N=1-4/H1~H4, 5~8/ O1~O4, 0=MUTE AUDIO SOURCE AHI N SET ALL HDMI OUTPUTS N=1-4/H1~H4, 5~8/ O1~O4, 0=MUTE AUDIO SOURCE AOA N SET OUTPUT A...
  • Page 20 Command Name Description Description of parameter APRESET-H N1 SHOW HDMI AUDIO N1=1~8, PRESET CONFIG APRESET-H N1 N2 SET HDMI AUDIO N1=1~8, PRESET CONFIG N2=AxBxCxD(x=1-4/ H1~H4, 5~8/O1~O4, 0=MUTE APRESET-O SHOW OPTICAL AUDIO PRESET CONFIG APRESET-O N1 SHOW OPTICAL AUDIO N1=1~8 PRESET CONFIG APRESET-O N1 N2 SET OPTICAL AUDIO N1=1~8,...
  • Page 21 Command Name Description Description of parameter HDCPIN SHOW ALL INPUT NONE HDCP STATUS HDCPIN N1 SHOW INPUT N1 HDCP N1=1-4 STATUS HDCPIN N1 N2 SET INPUT N1 HDCP N1=1-4 ON/OFF N2=(0)APPLE, (1) STANDARD SOURCEDET SHOW ALL INPUT NONE SIGNAL SOURCEDET N1 SHOW INPUT N1 N1=1-4 SIGNAL...

  • Page 22: Telnet Control

    Command Name Description Description of parameter REBOOT SYSTEM REBOOT NONE HELP SHOW COMMAND NONE LIST HELP N SHOW DESCRIPT OF N : command name COMMAND Note: All the RS-232 command will be not executed unless followed with a carriage return. All commands are case-sensitive. 6.8 Telnet Control To access the telnet control in Windows 7, click on ‘Start’...
  • Page 23 Type HELP or ? to bring out all the commands. Note: All the commands will be not executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.

  • Page 24: Webgui Control

    6.9 WebGUI Control On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address (available inside the OSD menu) on the web address entry bar. The browser will display device’s Switch, Audio, EDID & System Settings for users to control. Switch Settings Click on OUTPUT A~D to select output display with INPUT 1~4 source selection, multi-outputs can select an input or an output with an...
  • Page 25 1. Set Video Preset from 1~8: Select the desire input for output(s) setting first then click a number from 1~8 to set the video setting. 2. Restore Video Preset from 1~8: To recall the video setting from 1~8. Audio Settings You may rename outputs and inputs devices by click on to bring out the rename window.
  • Page 26 Click on HDMI/Optical output(s) A~D to select an Audio Source from 1~8, multiple output may be selected for an input setting. To save the setting click on and to recall the setting click on . To mute and unmute the output audio click on EDID Setting EDID setting can be set individually for each input or one setting for inputs, click on “Appoint”...
  • Page 27 System Settings Select IP Mode with STATIC IP or DHCP for using a static or floating IP.

  • Page 28: Connection Diagram

    7. CONNECTION DIAGRAM Blu-ray/DVD/ Blu-ray/DVD/ Amplifier PS3 Players PS3 Players Blu-ray/DVD/ Blu-ray/DVD/ PS3 Players PS3 Players HDMI IN HDMI OUT OPTICAL IN OPTICAL OUT AUDIO-CAT CONTROL RS232 IR IN DC 12V SERVICE 60° OUT A IN 1 OUT B TAKE IN 2 OUT C CANCEL...

  • Page 29: Specifications

    8. SPECIFICATIONS Frequency Bandwidth 300MHz/3Gbps Input Ports 4 x HDMI, 2 x S/PDIF, 2 x AUDIO-CAT 1 x USB (Service only) 1 x Control 1 x RS-232 1 x IR Output ports 4 x HDMI, 2 x AUDIO-CAT Resolution 480i~1080p@50/60, 1080p@24, 4K x 2K (3840x2160/4096x2160@24/50/60Hz Y420) VGA~WUXGA Output Level...
  • Page 30 Operating Temperature 0˚C~40˚C / 32˚F ~ 104˚F Storage Temperature -20˚C~60˚C / -4˚F ~ 140˚F Relative Humidity 20~90% RH (no condensation) Power Consumption (W) 13.31 DVI and HDMI Supported Resolutions Input Output 640x480@60 640x480@72 640x480@75 720x480@60 720x576p@50 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@70 1024x768@75 1280x720@50...

  • Page 31: Acronyms

    DVI and HDMI Supported Resolutions Input Output 1920x1080p@60 1920x1200@60(RB) 3840x2160@24/25/30 4096x2160@24_YUV420 Audio Sampling Rate HDMI input (Up to 192kHz) HDMI output LPCM 2CH Audio Format LPCM 2CH 9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronic Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface 4Kx2K...
  • Page 32 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDPSU4H4HSA...
