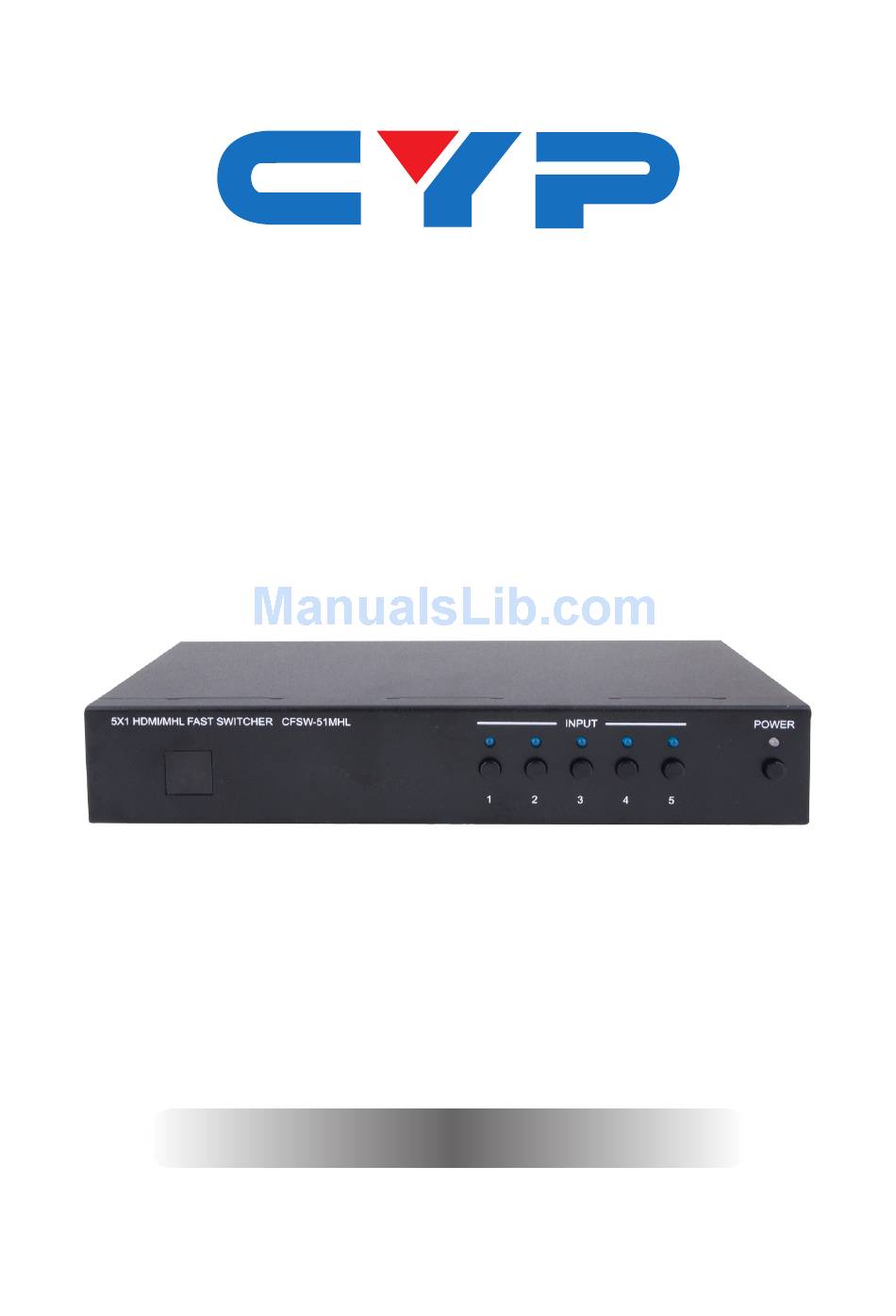

- Page 1 CFSW-51MHL 5 x 1 HDMI/MHL Fast Switcher Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 2 6. Operation Controls and Functions ..3 6.1 Front Panel ..........3 6.2 Rear Panel ...........4 7. Remote Control ........5 8. -
Page 6: Introduction
1. INTRODUCTION This is five inputs and one output HDMI fast switcher which has MHL (Mobile High-Definition Link) support integrated on its fifth input port. With the MHL port, you can share high definition video and audio from any of your MHL-ready mobile devices on an HDTV, and charge the connected device at the same time. -
Page 7: Features
5. FEATURES • Supports InstaPort Technology™ • Supports five HDMI type A with one MHL to HDMI port • Supports one HDMI type A output • Supports video resolution up to 1080p@60Hz • Support HDMI specification features, including data rates up to 2.25Gbps, 12-bit Deep color •... -
Page 8: Operation Controls And Functions

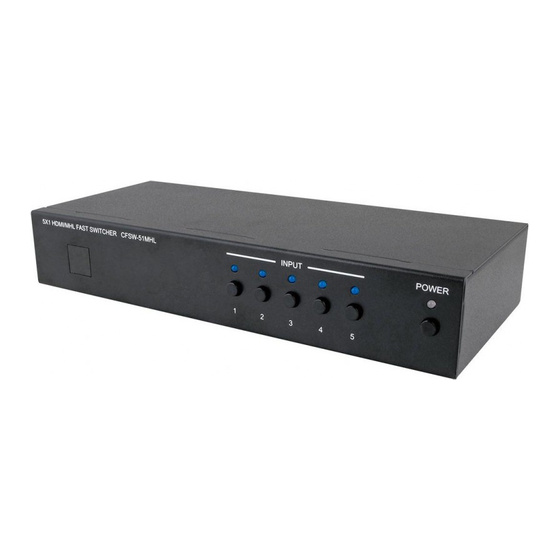

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 5X1 HDMI/MHL FAST SWITCHER CFSW-51MHL INPUT POWER Receiver Input selection buttons with LED: Press input button to select input source, the Blue LED will illuminate accordingly. Power button with LED: Press this button to switch on the device or press it again to set it to standby mode. -
Page 9: Rear Panel
6.2 Rear Panel HDMI IN RS232 MHL/HDMI HDMI OUT DC 5V IR IN RS232: This slot is to connect to a PC or control system with D-Sub 9pin cable for RS-232 control. For detail RS-232 commands please refers to section 9. IR IN: Connect to IR extender cable included in the package for receiving IR remote signal of this device. -
Page 10: Remote Control
7. REMOTE CONTROL Power button: Press this button to switch on or turn the device to standby mode. HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 HDMI 6 HDMI 1~5: HDMI 7 HDMI 8 Vol + These buttons are the input Mute Vol - HDMI hot switching keys for... -
Page 11: Rs-232 Protocols
8. RS-232 PROTOCOLS 8.1 Pin Assignment CFW-51MHL Remote Control Assignment Assignment ► ◄ Baud Rate: 19200bps Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 8.2 Commands Command Action POWER 00 Power Off (standby) POWER 01 Power On PORT 01 Output Select Input 1 PORT 02... - Page 12 AUTO 00 AUTO switch off AUTO 01 AUTO switch on ISP 01 Software ISP process RCP 00-7f RCP(remote command protocol) command Note: All the RS-232 command will be not executed unless followed with a carriage return. 8.3 Remote Command Protocol Opcode Key Name Opcode...
-
Page 13: Connection And Installation
0x27 Numeric 7 0x49 Fast Forward 0x7E Vendor_ 0x28 Numeric 8 0x4A Eject Specific 0x29 Numeric 9 0x4B Forward 0x7F Reserved 0x2A 0x4C Backward 9. CONNECTION AND INSTALLATION HDMI MHL to HDMI HDMI IN RS232 MHL/HDMI HDMI OUT DC 5V IR IN HDMI IR Receiver... -
Page 14: Specifications
10. SPECIFICATIONS Video Bandwidth 225MHz/6.75Gbps Input Ports 5 x HDMI type a connector Output port 1 x HDMI Support Timing PC: VGA~WUXGA@60RB 480i/p, 576i/p, 720p@50/60/120, 1080i@50/60, 1080p@24/30/50/60 (MHL SUPPORTS ONLY 1080p@30 & 1080i@60) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5V/2.6A DC (US/EU standards, CE/... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CFSW51MHL...
