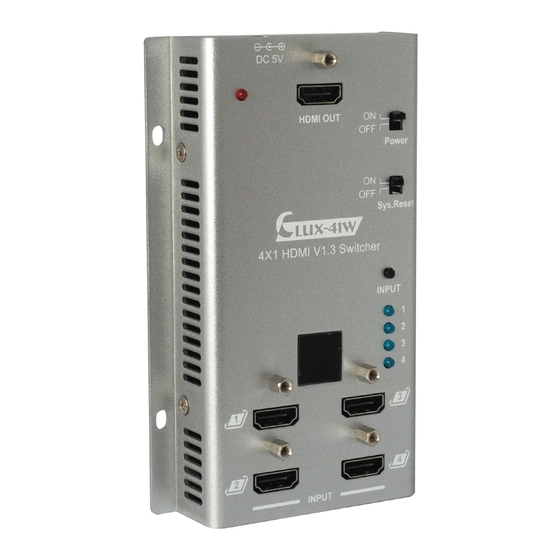

- Page 1 CLUX-41W 4 by 1 HDMI 1.3 Switcher Operation Manual CLUX-41W...
- Page 2 Revision History Version No. Date Summary of Change 20090514 Preliminary Release Precaution Failure to follow the precautions described below may cause damage to 4 by 1 HDMI 1.3 Switcher and void the warranty. DO NOT open the case. Doing so will void the warranty. If you find ...
-
Page 3: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Application…………………………………………………....…. Contents………………………………………………......… System Requirement…………………………………….……..……. Features……………………………………………..……..……… Operation Controls and Functions……………………………………. Top Panel ................. Front Panel…………………………………………..….….… Remote Control.....……………………………..……..… Connection and Installation……………………………..……..… Specifications……………………………………………...……….. -
Page 4: Application
1. Introduction This is a high performance HDMI v1.3 Switcher with remote control. It allows various HDMI sources to share a HDTV display. Simply press the button to select your desire HDMI source for display on the HDTV. The device is compatible to HDMI v1.3 specifications, and can define to support Deep Color transfer (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high... -
Page 5: Features
5. Features HDMI 1.3, HDCP1.1 and DVI1.0 compliant. Deep color video up to 12bit, 1080p@60Hz. Four HDMI sources to connect up to a HDMI display simultaneously. Supports DVI source and DVI display by using HDMI to/from DVI adaptor ... -
Page 6: Operation Controls And Functions
6. Operation Controls and Functions 6.1 Top Panel ① DC 5V: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet. ① 6.2 Front Panel ① HDMI OUTPUT: Connect your LCD ② TV or HD monitor with HDMI cables. ②... -
Page 7: Connection And Installation
7. Remote Control ① Power button: Press to switch On the device, press it again to set the device in standby mode. ② 1~4: Press the desire input button to select the input source. 8. Connection and Installation LCD TV Blue Ray 30˚... -
Page 8: Specifications
5VDC / 1A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 93(W) x 148 (D) x 31 (H) Weight (g) Chassis Material Aluminum Silk Skin Color Silver Operating Temperature From 0 ºC ~ 40 ºC Power Consumption CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090519 MPM-CLUX41W...
