9. Connect regulated air supply to appropriate port in manifold. See
section 6 TUBING.
10. Connect the power to the 4-20 mA terminals. See section 7
ELECTRICAL CONNECTIONS.
11. Remove main cover and locate DIP switches and QUICK-CAL/
ACCEPT button.
12. Refer to sticker on main board cover and set DIP switches
accordingly. See section 8 STARTUP.
13. Press the QUICK-CAL/ACCEPT button for three to four seconds
or until the positioner begins to move. The positioner will now
perform a stroke calibration.
14. If the calibration was successful the green LED will blink GGGG
or GGGY and the valve will be in control mode.
Logix 520MD+ and 510+ Digital Positioners FCD LGENIM0105-15-AQ – 05/16
®
15. If calibration fails, as indicated by a RGGY blink code, retry the
calibration. If it still fails, the feedback values were exceeded and
the arm must be adjusted away from the positioner's limits. Ro-
tate the feedback shaft so that the full free travel of the feedback
shaft is in the range of the actuator movement. Optionally, con-
tinue to attempt the calibration. Each calibration attempt adjusts
the acceptable limits and it should pass eventually.
a
CAUTION: Remember to remove the air supply before re-adjusting
take-off arm.
NOTE: If mounted properly, the follower arm should be horizon-
tal when the valve is at 50% stroke and should move approxi-
mately ±30° from horizontal over the full stroke of the valve.
NOTE: To virtually eliminate non-linearity, use the Linearization
feature on the Custom Characterization page of the DTM.

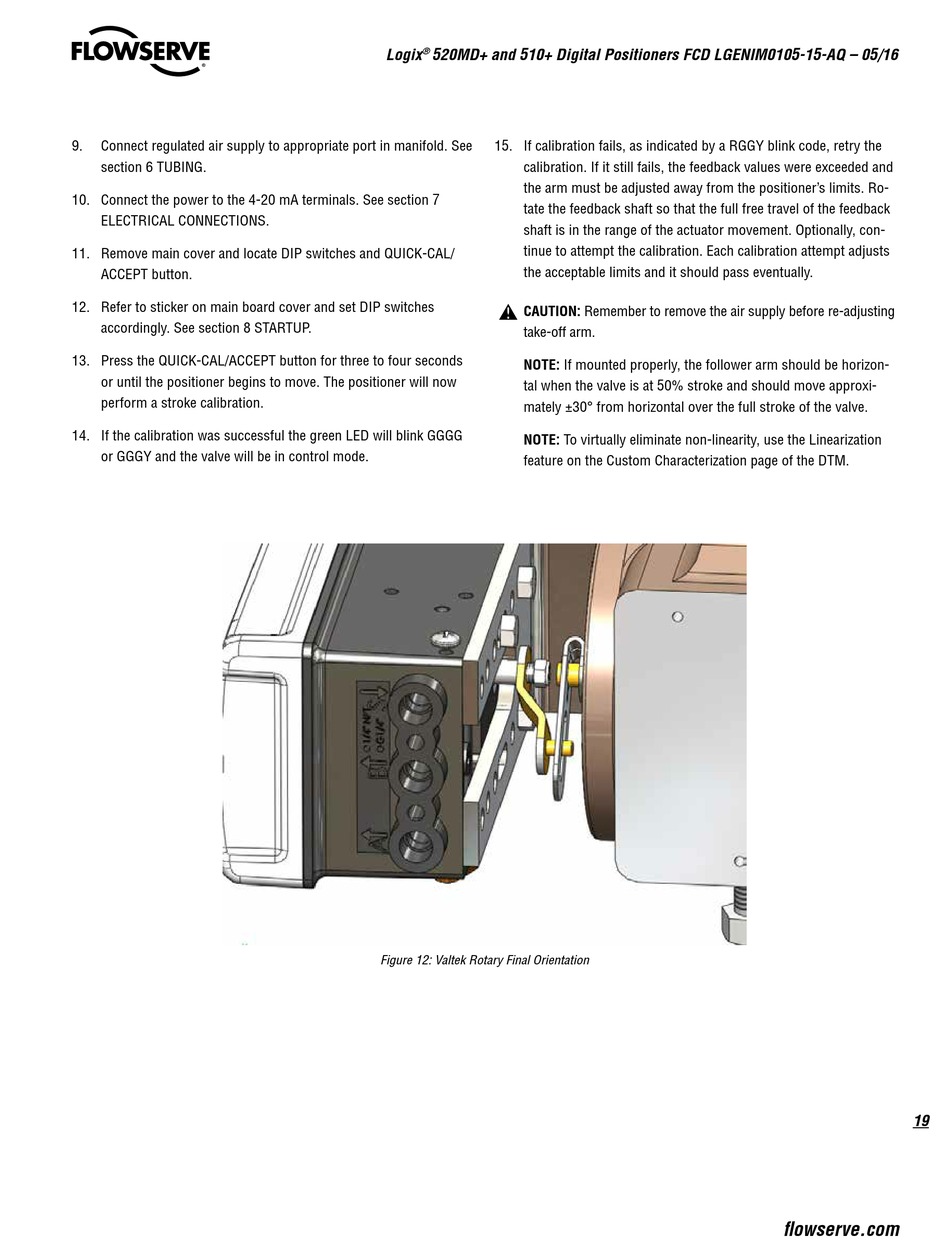

Figure 12: Valtek Rotary Final Orientation
