Altronix NetWaySP4WP Installation Manual page 12

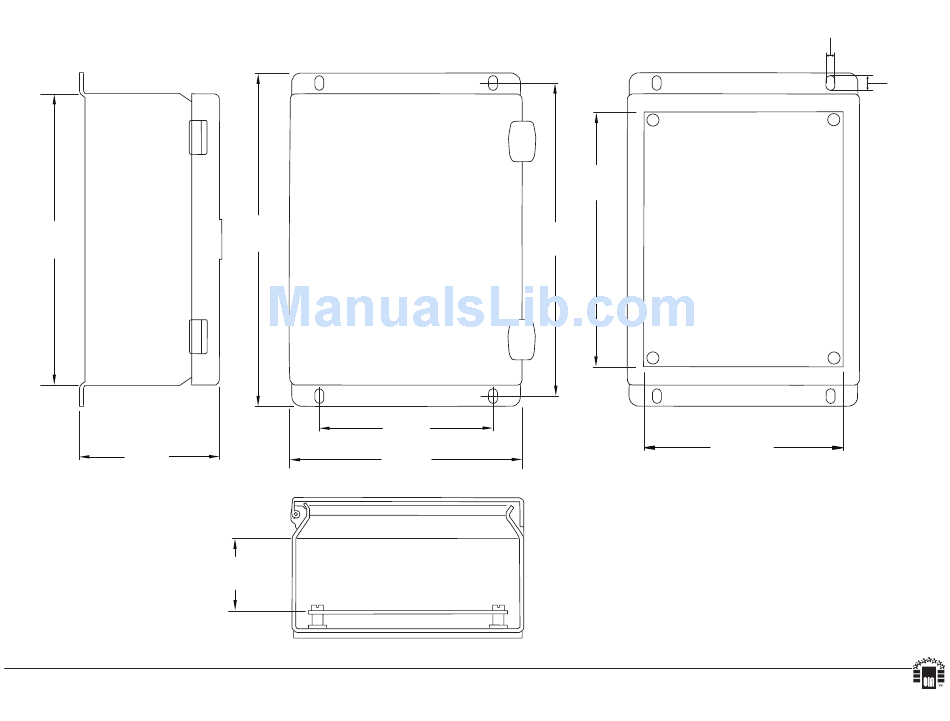

NetWaySP4WPX - Mechanical Drawing and Dimensions (H x W x D approx.):
0.3125''
17.375" x 12" x 6.5" (441.3mm x 304.8mm x 165.1mm)
7.9375mm
0.5''
12.7mm
14.875''
377.83mm
17.375''
16''
16.75''
441.3mm
406mm
425.45mm
10''
254mm
10.875''
276.2mm
6.5'' 12''
165.1mm 304.8mm
4.5''
114.3mm
