Chapter 1: Overview
Overview of Mesh Camera System Setup and
Installation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The following represents a general Setup and Deployment flow of the Mesh Camera System product to
assist you with deployment:
1. Unpack Sony Camera
2. Configure Sony Camera via Ethernet Cable (Use this Guide and a WMC7300 Users Guide)
3. Install Sony Camera into Dome Housing (Use hardcopy of Indoor and Outdoor Dome Housing or
PDF)
4. Install Camera assembly into final location (Use this Guide)
5. Manage Camera using Motorola MeshManager and Sony RealShot Manager (Use this Guide,
RealShot Users Guide, and Sony Network SNCRX550 Camera Users Guide)

Device Assembly Components

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The following is a list of grouped components that need to be setup individually and then combined for
a successful deployment. Please read ALL the instructions PRIOR to beginning the actual setup as
certain assembly procedures depend on others for a stress free experience. You will find the Tips
from the Field sections to be very helpful.
Figure 1-2
6881011Y68-B October 2006
Sony SNC-RX550N/W-MT Camera (individually boxed)
Camera Dome and associated parts, hard copy of Dome Instructions (boxed together)
Gooseneck (individually boxed)
Wall Mount Bracket (individually boxed)
PELCO Power Supply (Model #WCSI-4) –
separately (individually boxed)

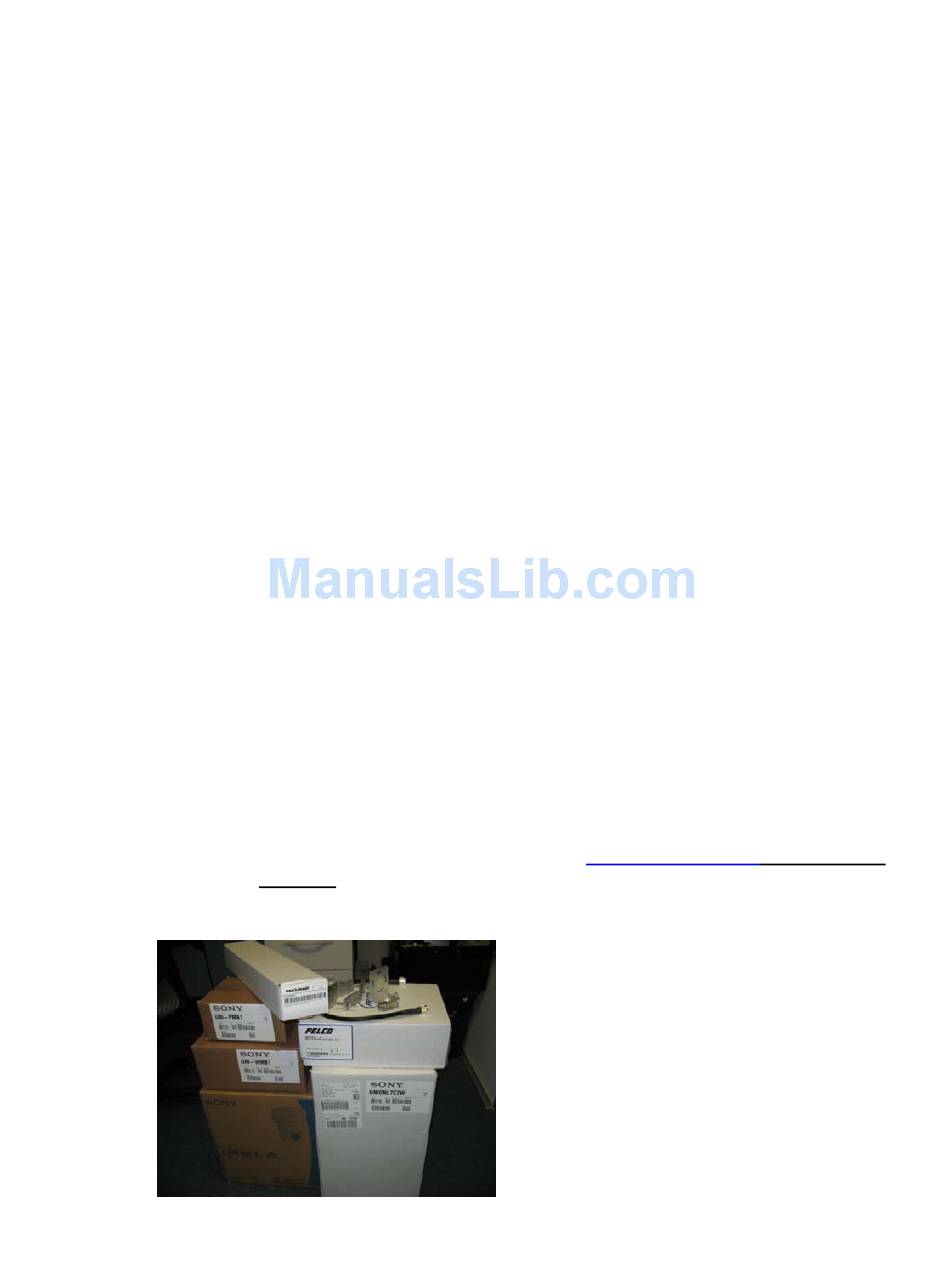

All Components in Boxes
.
.
.
.
NOT PART OF KIT –
1-4
Must be ordered
