Installation Instructions - Altronix AL300ULX Installation Manual

Output
12VDC / 40AH Battery
24VDC / 12AH Battery
24VDC / 40AH Battery
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local
codes and authorities having jurisdiction. Product is intended for indoor use only.
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the
enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure's
upper keyholes over the two upper screws; level and secure. Mark the position of the lower two holes. Remove the
enclosure. Drill the lower holes and install two fasteners. Place the enclosure's upper keyholes over the two
upper screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pgs. 7, 8).
Secure enclosure to earth ground.

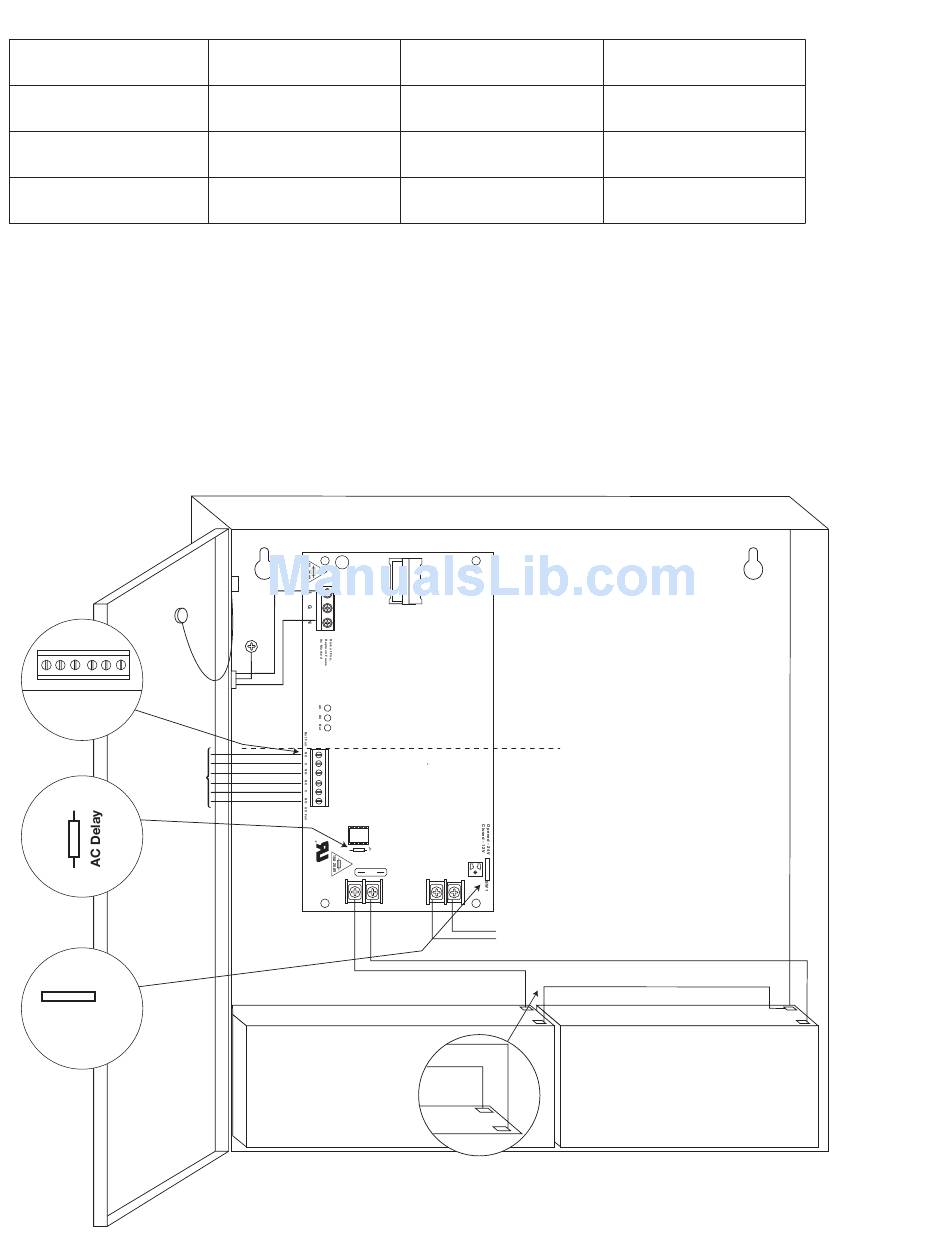

Fig. 1
CAUTION: De-energize unit prior to servicing. For continued protection against risk of electric
shock and fire hazard replace fuse with the same type and rating. Do not expose to rain or moisture.
Fig. 1a
Door
Wire
Strap
(from
Enclosure
to Door)
NC C NO NC C NO
Battery &
AC Supervision Circuit
(power limited)
Fig. 1b
Battery & AC
Supervision
Circuit
(power-limited)
J1
Fig. 1c
SW1
Opened - 24V
Closed - 12V
AL300ULX series
Stand-by Specifications (total current shown):
4 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 2.5 amp
Alarm = 2.5 amp
- - - - - - - -
Stand-by = 2.5 amp
Alarm = 2.5 amp

Installation Instructions:

Green
Lead
115VAC
power mains
non power-
limited
Class 1
AC Delay
15
+
BAT ---
12VDC Rechargeable Battery
(optional)
For 12VDC Operation
use hook-up in the
inset on the right
CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC stand-by battery.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
24 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 1.0 amp
Alarm = 2.5 amp
Stand-by = 200mA
Alarm = 2.5 amp
Stand-by = 1.0 amp
Alarm = 2.5 amp
Switch Position:
24VDC = SW1 OPEN
12VDC = SW1 CLOSED
+
DC ---
DC Output to devices
(power limited)
Battery connection (non power-limited)
60 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 300mA
Alarm = 2.5 amp
- - - - - - - -
Stand-by = 300mA
Alarm = 2.5 amp
12VDC Rechargeable Battery
(optional)
- 3 -
