Terminal Identification; Power Distribution Module(S) - Altronix AL300ULX Installation Manual

Power Supply Board
Terminal Legend Function/Description
L, G, N Connect 115VAC 60Hz. to these terminals: L to Hot, N to Neutral. Do not use the [G] terminal.
+ DC - - - 12VDC or 24VDC @ 2.5 amp continuous power-limited output.
Indicates loss of AC power, e.g. connect to annunciator/alarm panel. Relay normally energized when
AC power is present. Contact rating 1 amp @ 28VDC. AC Fail condition will report approximately
AC Fail
within one (1) minute after loss of AC. To delay report for 6 hours cut jumper J1 on the Power Supply
NC, C, NO
Board (AC trouble output delay option). If this mode is selected, the Power Supply Board must be
reset by removing all power to it for 30 seconds.
Indicates low battery condition, e.g. connect to alarm panel. Relay normally energized when DC power
Bat Fail is present. Contact rating 1 amp @ 28VDC. Low battery conditions will report approximately 21VDC
NC, C, NO (24VDC output setting) or approximately 10.5VDC (12VDC output setting). Battery presence detec-
tion will report approximately 1 minute after battery remains undetected (missing or removed).
+ BAT - - - Stand-by battery connections. Maximum charge current 0.7 amp.

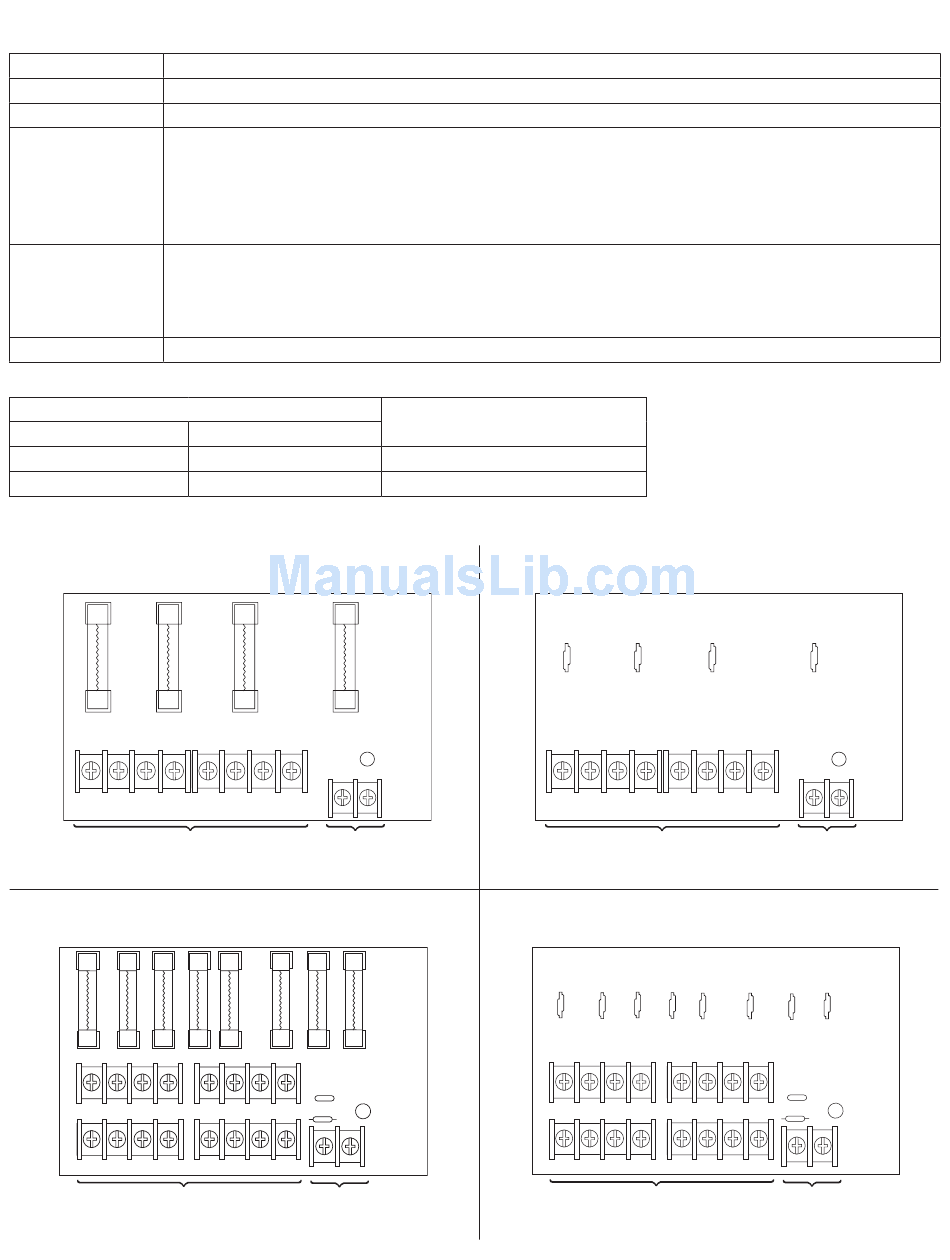

Power Distribution Module
Terminal Legend
PD4UL/PD4ULCB PD8UL/PD8ULCB
1P to 4P
1N to 4N
Fig. 2a
Replace fuses with the same type and rating 3.5A, 250V.
F1 F2
1P 1N 2P 2N
DC Output to devices
(
1P-4P Power Outputs,
1N-4N Common Outputs
Fig. 3a
Replace fuses with the same type and rating 3.5A, 250V.
1 2 3 4
P
FUSED POWER OUTPUTS
N
COMMON POWER OUTPUTS
DC Output to devices
(
1P-8P Power Outputs,
1N-8N Common Outputs
AL300ULX series

Terminal Identification:

1P to 8P
1N to 8N

Power Distribution Module(s):

F3 F4
LED
3P 3N 4P 4N
From Power Supply
)
Board
(Factory Installed)
5 6 7 8
D1
R1
INPUT
From Power Supply
)
Board
(Factory Installed)
Function/Description
Positive DC power outputs.
Negative DC power outputs.
Fig. 2b
F1
Fig. 3b
P
LED
N
F2 F3
1P 1N 2P 2N
3P 3N 4P
POWER OUTPUTS
DC Output to devices
( )
1P-4P Power Outputs,
1N-4N Common Outputs
1 2 3 4 5 6 7
F U S E D P O W E R O U T P U T S
C O M M O N P O W E R O U T P U T S
DC Output to devices
( )
1P-8P Power Outputs,
1N-8N Common Outputs
F4
LED
4N
INPUT
From Power Supply
Board
(Factory Installed)
8
D1
LED
R1
INPUT
From Power Supply
Board
(Factory Installed)
- 5 -
