Altronix AL300ULXB2 Manual

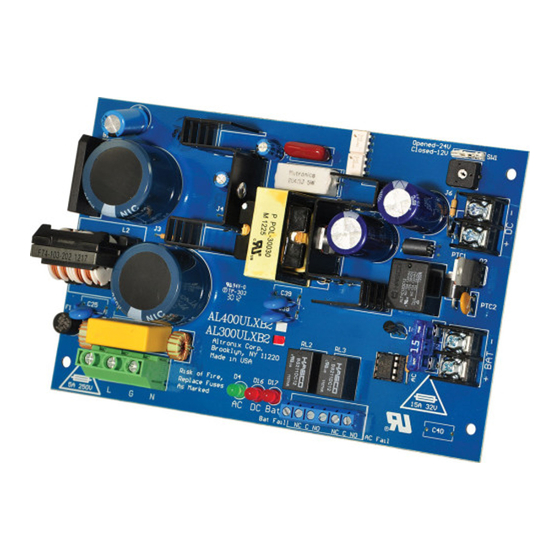

The AL300ULXB2 is a power supply/charger that converts a 115VAC 60Hz input into a Class 2 Rated power-limited
12VDC or 24VDC output (see specifications).
Agency Listings:
• UL Recognized component for: Access Control
System Units (UL 294), Power Supplies for use with
Burglar-Alarm Systems (UL 603), Hospital Signaling
and Nurse Call Equipment (UL 1069), Power Supplies
for Fire Protective Signaling Systems (UL 1481).
Input Rating:
• Input 115VAC 60Hz, 3.5A.
Output Rating:
• Class 2 Rated power-limited output.
• 12VDC or 24VDC selectable output.
• 12VDC or 24VDC @ 2.5A continuous supply current.
• Filtered and electronically regulated output.
Battery Backup:
• Built-in charger for sealed lead acid or gel type batteries.
Power Supply Voltage Output Selections:
Output Switch Position
12VDC SW1 - ON (Fig. 1, on right)
24VDC SW1 - OFF (Fig. 1, on right)
Output
12VDC / 40AH Battery
24VDC / 12AH Battery
24VDC / 40AH Battery
The AL300ULXB2 should be installed in accordance with article 760 of The National Electrical Code or NFPA 72
as well as all applicable Local Codes.
1. Mount the AL300ULXB2 in the desired location/enclosure.
2. Set the AL300ULXB2 to the desired DC output voltage by setting SW1 (Fig. 2, pg. 2) to the appropriate position
(refer to Power Supply Voltage Output Selections chart).
3. Connect AC power (115VAC / 60Hz) to the terminals marked [L, G, N] (Fig. 2, pg. 2). Use 18 AWG or larger for all
power connections (Battery, DC output, AC input). Use 22 AWG to 18 AWG for power-limited circuits
(AC Fail/Low Battery reporting).
Keep power-limited wiring separate from non power-limited wiring (115VAC / 60Hz Input, Battery Wires).
Minimum 0.25" spacing must be provided.
CAUTION: Do not touch exposed metal parts. Shut branch circuit power before installing or servicing equipment.
There are no user serviceable parts inside. Refer installation and servicing to qualified service personnel.
4. Connect devices to be powered to the terminals marked [+ DC –] (Fig. 2, pg. 2).
5. Measure output voltage before connecting devices. This helps avoiding potential damage.
6. For Access Control applications batteries are optional. When batteries are not used, a loss of AC will result in the
loss of output voltage. When the use of stand-by batteries is desired, they must be lead acid or gel type.
Connect battery to the terminals marked [+ BAT –] (Fig. 2, pg. 2). Use two (2) 12VDC batteries connected in series
for 24VDC operation (battery leads included).
7. Connect appropriate signaling notification devices to AC FAIL & BAT FAIL (Fig. 2, pg. 2) supervisory relay outputs.
AL300ULXB2
UL Recognized Power Supply/Charger

Overview:

Specifications:
OFF - 24V
ON - 12V
Stand-by Specifications:
4 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 2.5A
Alarm = 2.5A
- - - - - - - ­
Stand-by = 2.5A
Alarm = 2.5A

Installation Instructions:

Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
Battery Backup (cont'd):
• Maximum charge current 0.7A.
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when switched over to battery backup.
Visual Indicators:
• AC input, DC output and Battery LED indicators.
Supervision:
• AC fail supervision (form "C" contacts).
• Low battery and battery presence supervision
(form "C" contacts).
Additional Features:
• Short circuit and thermal overload protection.
Board Dimensions (W x L x H approximate):
4.5" x 7.1" x 1.44" (114.3mm x 180.34mm x 36.57mm)
Fig. 1
OFF - 24V
ON - 12V
24 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 1.0A
Alarm = 2.5A
Stand-by = 200mA
Alarm = 2.5A
Stand-by = 1.0A
Alarm = 2.5A
SW1
60 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 300mA
Alarm = 2.5A
- - - - - - - ­
Stand-by = 300mA
Alarm = 2.5A
