AL300ULX Series
Power Supply/Charger
Models Include:
AL300ULX
- Single Output.
AL300ULPD4
- Four (4) Fuse Protected Outputs.
AL300ULPD8
- Eight (8) Fuse Protected Outputs.
AL300ULXPD16
- Sixteen (16) Fuse Protected Outputs.
For a red enclosure add an "R" suffix to the part #, e.g. AL300ULPD8R
Installation Guide
Rev. 013019
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
AL300ULPD4CB
- Four (4) PTC Protected Outputs.
AL300ULPD8CB
- Eight (8) PTC Protected Outputs.
AL300ULXPD16
- Sixteen (16) PTC Protected Outputs.
More than just power.
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix AL300ULX Series
Summary of Contents for Altronix AL300ULX Series
- Page 1 AL300ULX Series Power Supply/Charger Models Include: AL300ULX - Single Output. AL300ULPD4 AL300ULPD4CB - Four (4) Fuse Protected Outputs. - Four (4) PTC Protected Outputs. AL300ULPD8 AL300ULPD8CB - Eight (8) Fuse Protected Outputs. - Eight (8) PTC Protected Outputs. AL300ULXPD16 AL300ULXPD16 - Sixteen (16) Fuse Protected Outputs.
-
Page 2: Specifications

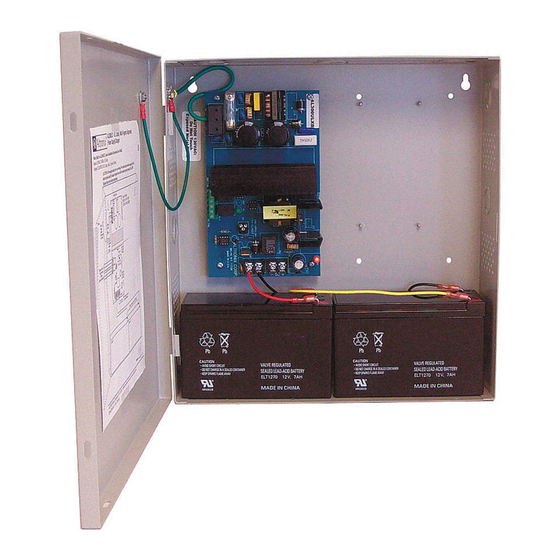

Overview: Altronix AL300ULX is a power supply that converts a 115VAC, 60Hz input to a 12VDC or 24VDC regulating output (see specifications below). The AL300ULX is a base power supply unit for the UL Listed multi-output power supply/charger series: AL300ULPD4, AL300ULPD4CB, AL300ULPD8, AL300ULPD8CB, AL300ULXPD16, AL300ULXPD16CB (Refer to AL300ULX Series Power Supply Configuration Reference Chart below). -
Page 3: Power Supply Output Specifications
CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC stand-by battery. Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing. AL300ULX Series - 3 -... -
Page 4: Installation Instructions
Loss of AC. Discharged or no stand-by battery. No DC output. Red (Bat) Battery Status Normal operating condition. Battery fail/low battery. Power Distribution Module Green Power Distribution Module Status Normal operating condition. No Power Output. - 4 - AL300ULX Series... -
Page 5: Terminal Identification
COMMON POWER OUTPUTS DC Output to devices From Power Supply DC Output to devices From Power Supply 1P-8P Power Outputs, Board 1P-8P Power Outputs, Board 1N-8N Common Outputs (Factory Installed) 1N-8N Common Outputs (Factory Installed) AL300ULX Series - 5 -... -
Page 6: Appendix A - Ul Listed Compatible Devices
A.2 Relays Table A-2 below lists relays compatible with AL300ULX output. Manufacturer Model Current (mA) Manufacturer Model Current (mA) PR-1 R-20T PR-2 R-24T PR-3 R-10E System Sensor System Sensor EOLR-1 R-14E R-10T R-20E R-14T R-24E - 6 - AL300ULX Series... - Page 7 (35.6mm) 1.20” (30.5mm) 0.75” 0.75” 12.5” (317.5mm) 1.20” 1.20” (19.1mm) (19.1mm) (30.5mm) (30.5mm) 11.0” (279.4mm) 0.9375” (23.8mm) 1.40” 1.40” (35.6mm) (35.6mm) 0.9375” (23.8mm) 3.25” (82.6mm) 3.25” (82.6mm) 1.0” (25.4mm) 1.0” 1.0” 10.5” (266.7mm) (25.4mm) (25.4mm) AL300ULX Series - 7 -...
- Page 8 (38.1mm) (38.1mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. IIAL300ULX Series G01U MEMBER...
