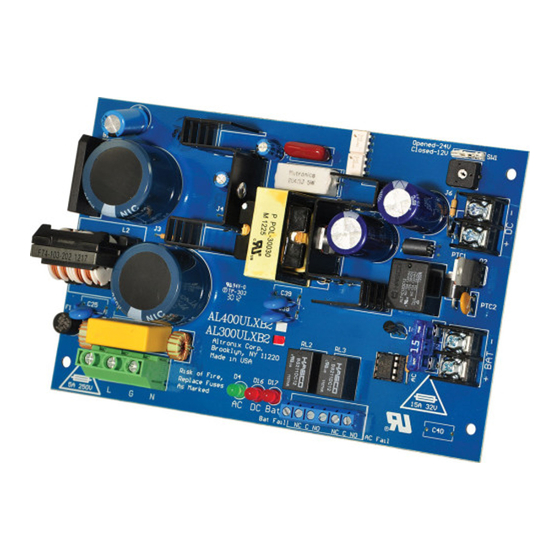

Altronix AL300ULXB2 Quick Start Manual

Altronix AL300ULXB2 power supply/charger converts a 115VAC 60Hz input into a Class 2 Rated power-limited 12VDC or 24VDC output
(see specifications).
Agency Listings:
• UL Recognized component for:
UL 294* Access Control System Units
*Access Control Performance Levels: Destructive Attack - N/A;
Endurance - IV; Line Security - I; Stand-by Power - IV.
UL 603
Power Supplies for use with Burglar Alarm Systems
UL 1069 Hospital Signaling and Nurse Call Equipment
UL 1481 Power Supplies for Fire Protective Signaling Systems.
Input Rating:
• Input 115VAC 60Hz, 3.5A.
Output Rating:
• Class 2 Rated power-limited output.
• 12VDC or 24VDC selectable output.
• 12VDC or 24VDC @ 2.5A continuous supply current.
• Filtered and electronically regulated output.
Output Switch Position
12VDC SW1 - ON (Fig. 1, on right)
24VDC SW1 - OFF (Fig. 1, on right)
Output
12VDC / 40AH Battery
24VDC / 12AH Battery
24VDC / 40AH Battery
Internal board power consumption 90mA.
The AL300ULXB2 should be installed in accordance with article 760 of The National Electrical Code or NFPA 72, as well as all applicable
Local Codes.
1. Mount the AL300ULXB2 in the desired location/enclosure (mounting hardware included).
2. Set the AL300ULXB2 to the desired DC output voltage by setting SW1 (Fig. 2, pg. 2) to the appropriate position
(refer to Power Supply Voltage Output Selections chart).
3. Connect AC power (115VAC / 60Hz) to the terminals marked [L, G, N] (Fig. 2, pg. 2). Use 18 AWG or larger for all power
connections (Battery, DC output, AC input). Use 22 AWG to 18 AWG for power-limited circuits (AC Fail/Low Battery reporting).
Keep power-limited wiring separate from non power-limited wiring (115VAC / 60Hz Input, Battery Wires).
Minimum 0.25" spacing must be provided.
CAUTION: Do not touch exposed metal parts. Shut branch circuit power before installing or servicing equipment.
There are no user serviceable parts inside. Refer installation and servicing to qualified service personnel.
4. Connect devices to be powered to the terminals marked [+ DC –] (Fig. 2, pg. 2).
5. Measure output voltage before connecting devices. This helps avoiding potential damage.
6. For Access Control applications batteries are optional. When batteries are not used, a loss of AC will result in the loss of output voltage.
5A 250V
L G N
When the use of stand-by batteries is desired, they must be lead acid or gel type. Connect battery to the terminals marked [+ BAT –]
(Fig. 2, pg. 2). Use two (2) 12VDC batteries connected in series for 24VDC operation (battery leads included).
7. Connect appropriate signaling notification devices to AC FAIL & BAT FAIL (Fig. 2, pg. 2) supervisory relay outputs.
Note: When used in fire alarm, burglar alarm or access control applications, "AC Fail" relay should be utilized to visually indicate that AC
power is on. To delay report for 6 hours cut "AC Delay" jumper (Fig. 2a, pg. 2).
AL300ULXB2
UL Recognized Power Supply/Charger

Overview:

Specifications:

Power Supply Voltage Output Selections:
OFF - 24V
ON - 12V
Stand-by Specifications:
4 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 2.5A | Alarm = 2.5A
–
Stand-by = 2.5A | Alarm = 2.5A

Installation Instructions:

AC DC

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 0.7A.
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when switched over to battery backup.

Visual Indicators:

• AC input, DC output and Battery LED indicators.

Supervision:

• AC fail supervision (form "C" contacts).
• Low battery and battery presence supervision
(form "C" contacts).

Additional Features:

• Short circuit and thermal overload protection.
Board Dimensions (W x L x H approximate):
4.5" x 7.1" x 1.44" (114.3mm x 180.3mm x 36.6mm)
24 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 1.0A | Alarm = 2.5A
Stand-by = 200mA | Alarm = 2.5A
Stand-by = 1.0A | Alarm = 2.5A
BAT
BAT FAIL NC C NO NC C
Fig. 1
OFF --- 24V
ON --- 12V
60 hr. of Stand-by and
5 Minutes of Alarm
Stand-by = 300mA | Alarm = 2.5A
–
Stand-by = 300mA | Alarm = 2.5A
NO AC FAIL
