Page 1: Installation Guide

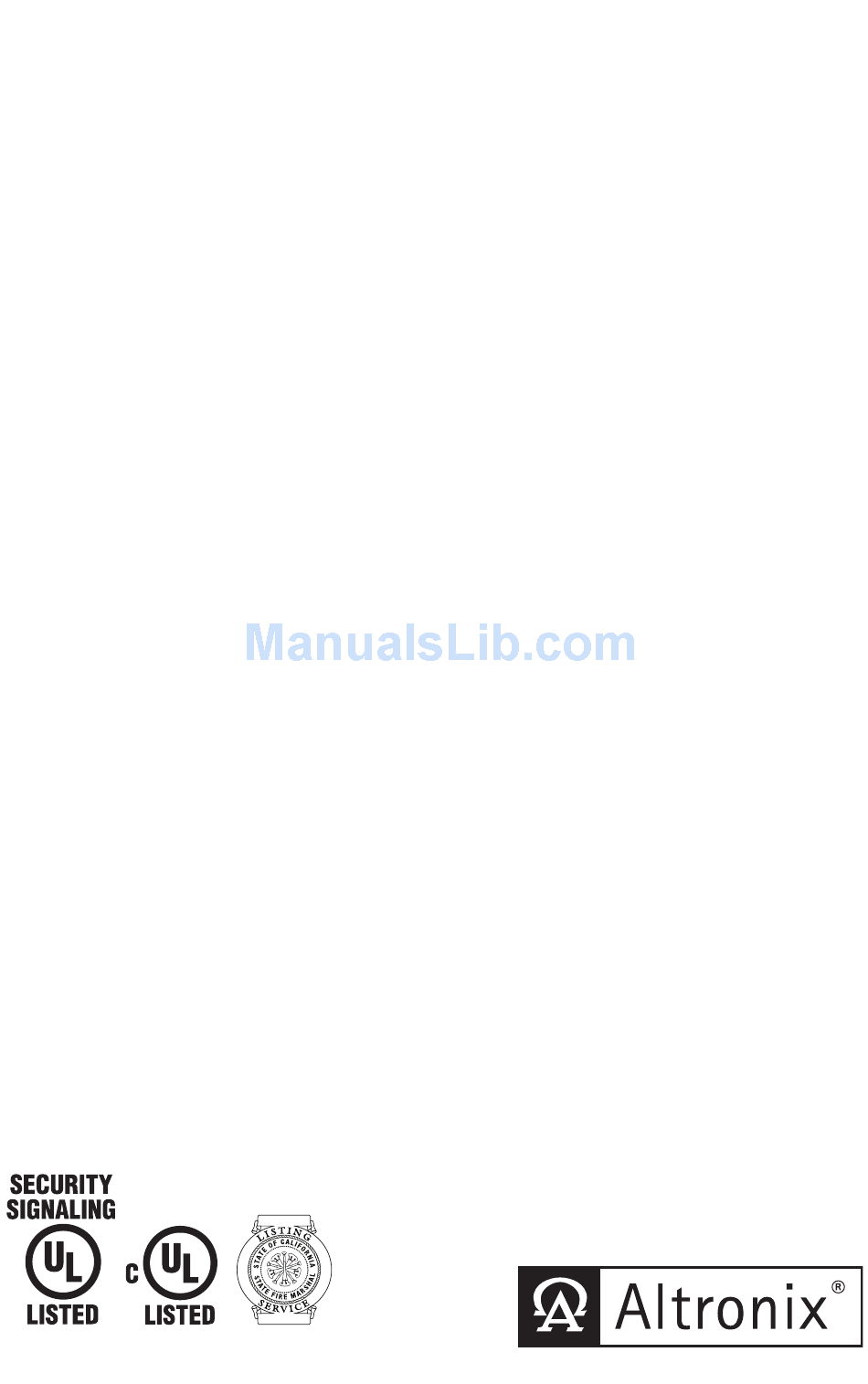

AL300ULXJ Power Supply/Charger Installation Guide For a grey enclosure add a “G” suffix to the part number Altronix Corp. 140 58th St. Brooklyn, NY More than just power. Rev. 102612... -
Page 2: Power Supply Output Specifications
Overview: Altronix AL300ULXJ power supply converts a 115VAC, 60Hz input to a 12VDC or 24VDC output. Features: Agency Listings: Output (cont’d): • UL Listed: • 2.5A total supply current at 12VDC or 24VDC. UL294 Access Control Systems. Do not exceed total output rating of 2.5A @... -
Page 3: Installation Instructions
Note: Maximum charging current under discharge is 0.7A. Note: Expected battery life is 5 years, however it is recommended changing batteries in 4 years or less if needed. AL300ULXJ - 3 -... -
Page 4: Led Diagnostics
21VDC (24VDC output setting) or approximately 10.5VDC NC, C, NO (12VDC output setting). Battery presence detection will report approximately 1 minute after battery remains undetected (missing or removed). + BAT – Stand-by battery connections. Maximum charge current 0.7A. - 4 - AL300ULXJ... - Page 5 Optional Rechargeable Stand-by Battery Stand-by Battery OFF - 24V ON - 12V CAUTION: Optional rechargeable stand-by batteries must match the power supply output voltage setting. Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing. AL300ULXJ - 5 -...
-
Page 6: Appendix A - Ul Listed Compatible Devices
Appendix A - UL Listed Compatible Devices A.1 Four (4) Wire Smoke Detectors Table A-1 below lists four (4) wire smoke detectors compatible with AL300ULXJ output. System Sensor Max Stand-by Alarm Detector Type Current (mA) Current (mA) Smoke Detector/Base B112LP Base 0.12... - Page 7 Notes: AL300ULXJ - 7 -...
- Page 8 (69.85mm) 14.5” (368.3mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIAL300ULXJ F04R...
