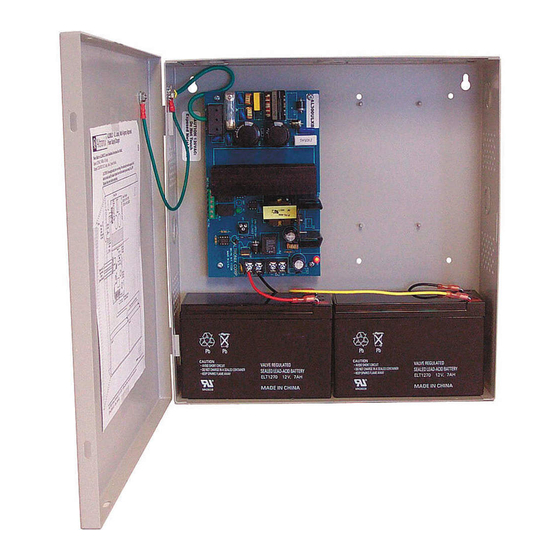

AL300ULX Series
Power Supply/Charger
Installation Guide
Models Include:
• AL300ULX
-
Single Output
• AL300ULPD4
-
Four (4) Fused Outputs
• AL300ULPD8
-
Eight (8) Fused Outputs
• AL300ULXPD16
-
Sixteen (16) Fused Outputs
For a red enclosure, add an "R" suffix to the part # e.g. AL300ULPD8R
• AL300ULPD4CB
-
Four (4) PTC Outputs
• AL300ULPD8CB
-
Eight (8) PTC Outputs
• AL300ULXPD16CB
-
Sixteen (16) PTC Outputs
Rev. 111003
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Altronix AL300ULX
Summary of Contents for Altronix AL300ULX
- Page 1 AL300ULX Series Power Supply/Charger Installation Guide Models Include: • AL300ULX Single Output • AL300ULPD4 • AL300ULPD4CB Four (4) Fused Outputs Four (4) PTC Outputs • AL300ULPD8 • AL300ULPD8CB Eight (8) Fused Outputs Eight (8) PTC Outputs • AL300ULXPD16 • AL300ULXPD16CB...
- Page 2 Overview: The AL300ULX is a power supply that converts a 115VAC / 60Hz input, to a 12VDC or 24VDC regulating output (see specifications below). The AL300ULX is a base power supply unit for the UL Listed multi-output power supply/charger series: AL300ULPD4, AL300ULPD4CB, AL300ULPD8, AL300ULPD8CB, AL300ULXPD16, AL300ULXPD16CB (Refer to AL300ULX Series Power Supply Configuration Reference Chart below).
- Page 3 Power Supply Output Specifications: Output VDC Switch Position Output VDC Switch Position 12VDC SW1 CLOSED 24VDC SW1 OPEN Stand-by Specifications (total current shown): Output 4 hr. of Stand-by & 24 hr. of Stand-by & 60 hr. of Stand-by & 5 Minutes of Alarm 5 Minutes of Alarm 5 Minutes of Alarm 12VDC / 40 AH Battery...
- Page 4 5. Connect devices to be powered: a. For AL300ULX Power Supply connect devices to terminals marked [+ DC -]. (Fig. 1, pg. 3) b. For other Power Distribution Models connect devices to be powered to terminal pairs 1 to 4 marked [1P &...
-
Page 5: Power Distribution Module(S)
LED Diagnostics: PD4UL/PD4ULCB/PD8UL/PD8ULCB - Power Distribution Module Green Power Distribution Module Status Normal operating condition. Terminal Identification: PD4UL/PD4ULCB/PD8UL/PD8ULCB - Power Distribution Module Terminal Legend Function/ PD4UL/PD4ULCB PD8UL/PD8ULCB Description 1P to 4P 1P to 8P Positive DC power outputs. 1N to 4N 1N to 8N Negative DC power outputs. - Page 6 Note: Maximum charging current under discharges is .7 amp. Note: Expected battery life is 5 years, however it is recommended changing batteries in 4 years or less if needed. Enclosure Dimensions: • AL300ULX • AL300ULPD4 • AL300ULPD4CB • AL300ULPD8 •...
- Page 7 Enclosure Dimensions: • AL300ULXPD16 • AL300ULXPD16CB 15.5”H x 12”W x 4.5”D 12" 2.25" 3.68" 4.56" 1.22" 4.5" 1.22" 1.22" .875" 9.97" 1.3" 1" 1" 2" 2" 8" 13.25" 13.53" 3.25" 2.2" 1.25" 1" 15.5" 1.22" 3.68" 2.25" 4.56" - 7 -...
- Page 8 Notes: Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIAL300ULX series A10E MEMBER - 8 -...
