Expansion slots (BX-1000P2-AC, BX-1000P4-AC)

BX-1000P2-AC has two expansion slots for the implementation of PCI bus type borad.
BX-1000P4-AC has one PCI-Express(x8) slots and three expansion slots for the implementation of PCI
bus type borad.
Board Dimensions Allowed
240mm(max.)
PCI-Express(x8) bus board

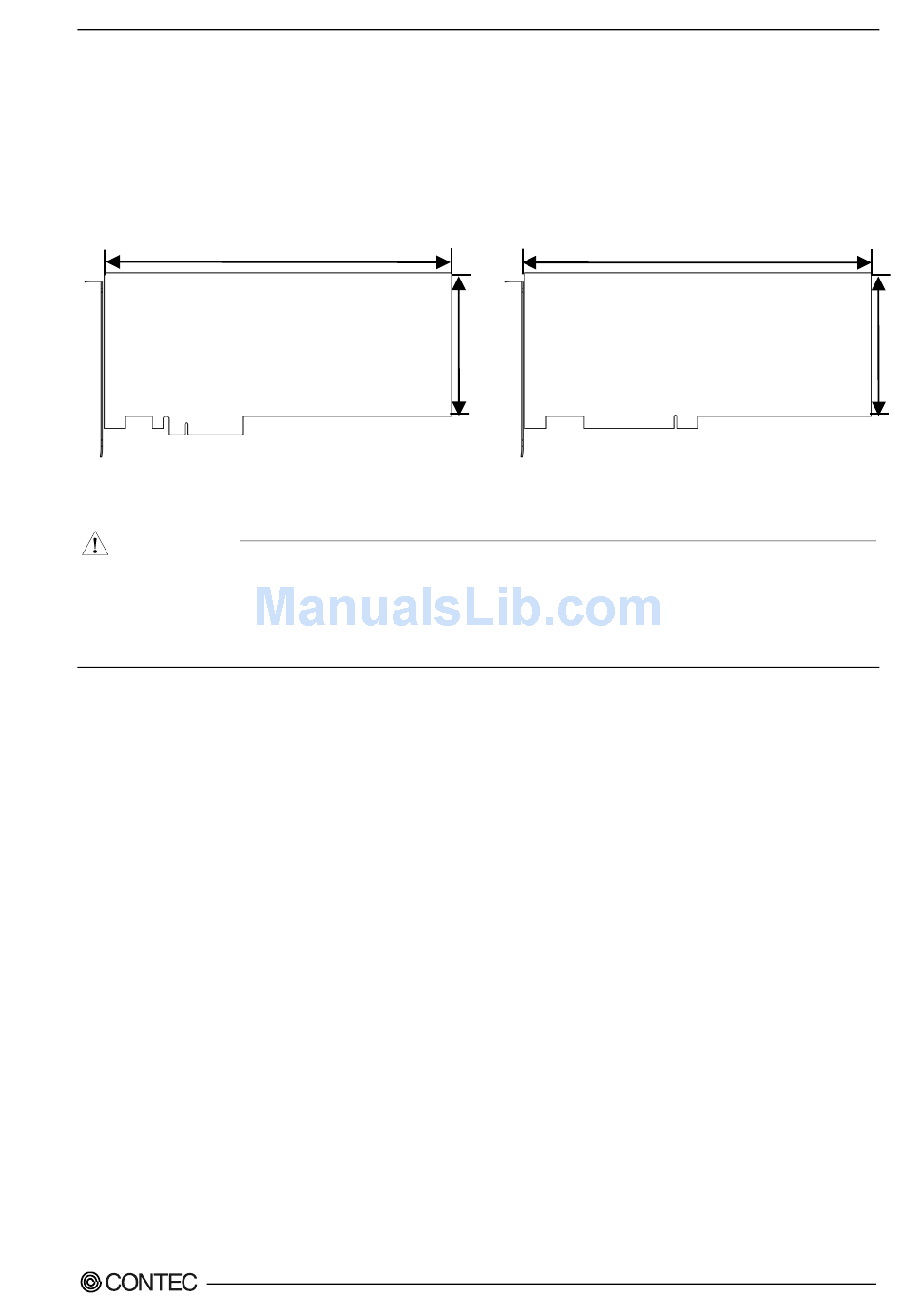

Figure 5.4. Expansion Board Dimensions
CAUTION
- The PCI bus slot is for 32 bit. Operational tests are not performed for the dual purpose boards for
64bit / 32bit such as ADAPTEC 39160SCSI board or Intel Pro1000/MT network board.
- The PCI-Express bus is for x 8.
Devices which require the faster communication speed than x 8 (e.g., x16) can not be used.
BX-1000 User's Manual
170mm
(max.)
PCI bus board
5. Each Component Function
240mm(max.)
170mm
(max.)
83
