3. Hardware Setup
Expansion Board Installation Procedure
BX-1000P2-AC
(1) Be sure the power is turned off.
(2) Remove the top cover.

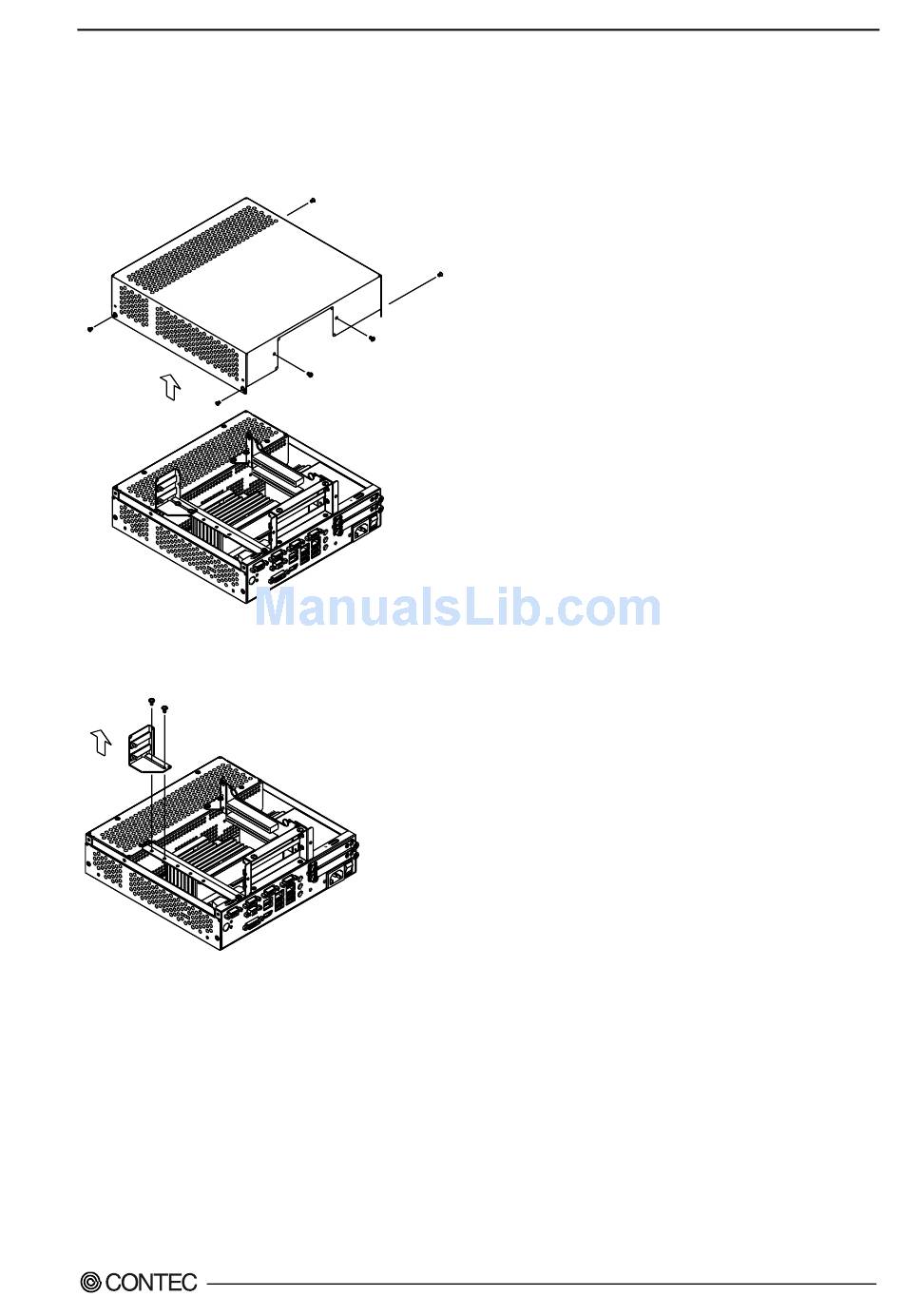

Figure 3.9. Removing the Top Cover
(3) Remove the brace that holds the printed circuit board (PCB) down.
Remove the screws on the brace. The brace will separate toward you.
Figure 3.10. Removing the PCB Brace 2
23
BX-1000 User's Manual
