HDMI Interface : HDMI

A HDMI interface is provided. You can connect an HDMI display.

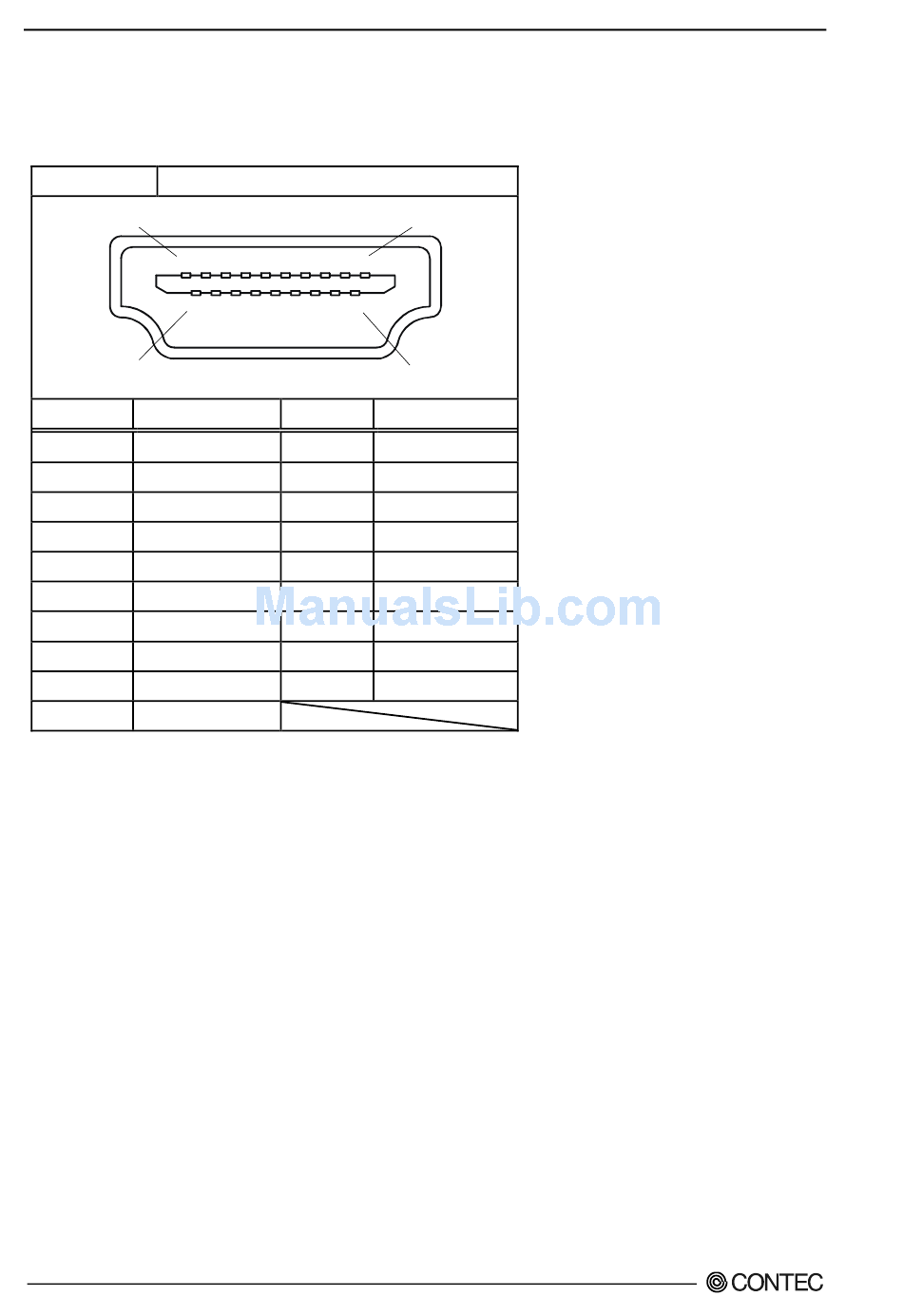

Table 5.13. HDMI Connector
Connector type
19
19
18
18
Pin No. Signal name
TMDS Data2+
1
TMDS Data2-
3
TMDS Data1Sheild
5
TMDS Data0+
7
TMDS Data0-
9
TMDS Clock Shield
11
N.C
13
SCL
15
DDC/CEC GND
17
Hot Plug Detect
19
82
19 pin HDMI Type A (male)
17 15 13 11 9 7 5 3 1
16 14 12 10 8 6 4 2
Pin No.
2
4
6
8
10
12
14
16
18
1
2
Signal name
TMDS Data2Sheild
TMDS Data1+
TMDS Data1-
TMDS Data0Sheild
TMDS Clock+
TMDS Clock-
N.C
SDA
+5V
