3. Hardware Setup
Hardware Setup
-
Before you start, be sure that the power is turned off.
-
Remove only those screws that are explained. Do not move any other screw.
-
Only 2.5 inches SATA HDD / SSD can be installed to this drive bay.
Installing the Hard Disk
(1) Remove the hard disk bracket from this product.

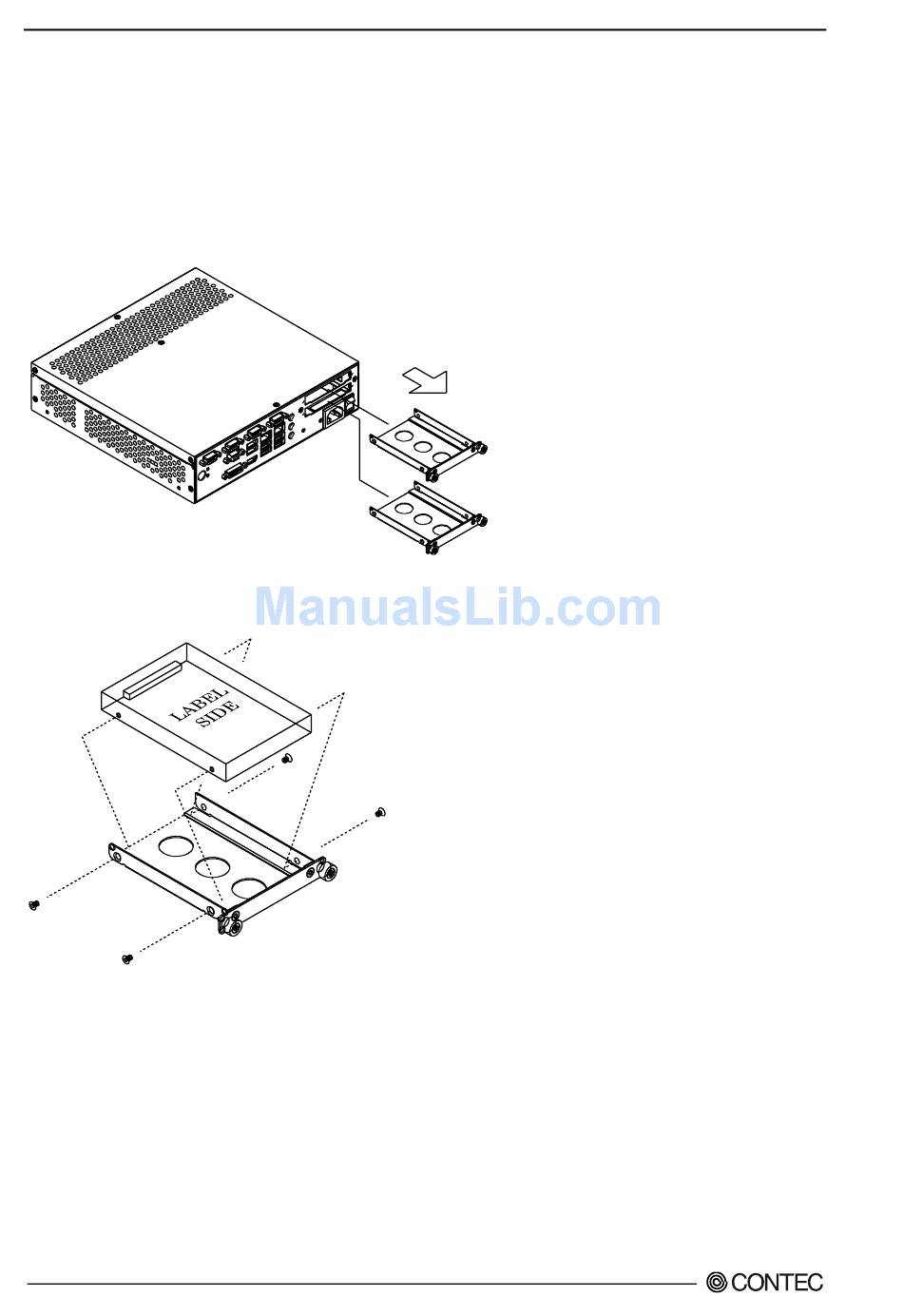

Figure 3.1. Removing the Hard Disk Bracket
(2) Insert the HDD/SSD into the hard disk bracket, and then fix it in place with screws in four locations.
The specified tightening torque is 5kgf ⋅ cm.
Figure 3.2. Installing the Hard Disk to the Bracket
