UCP-4 Four-Connector Dongle Cable

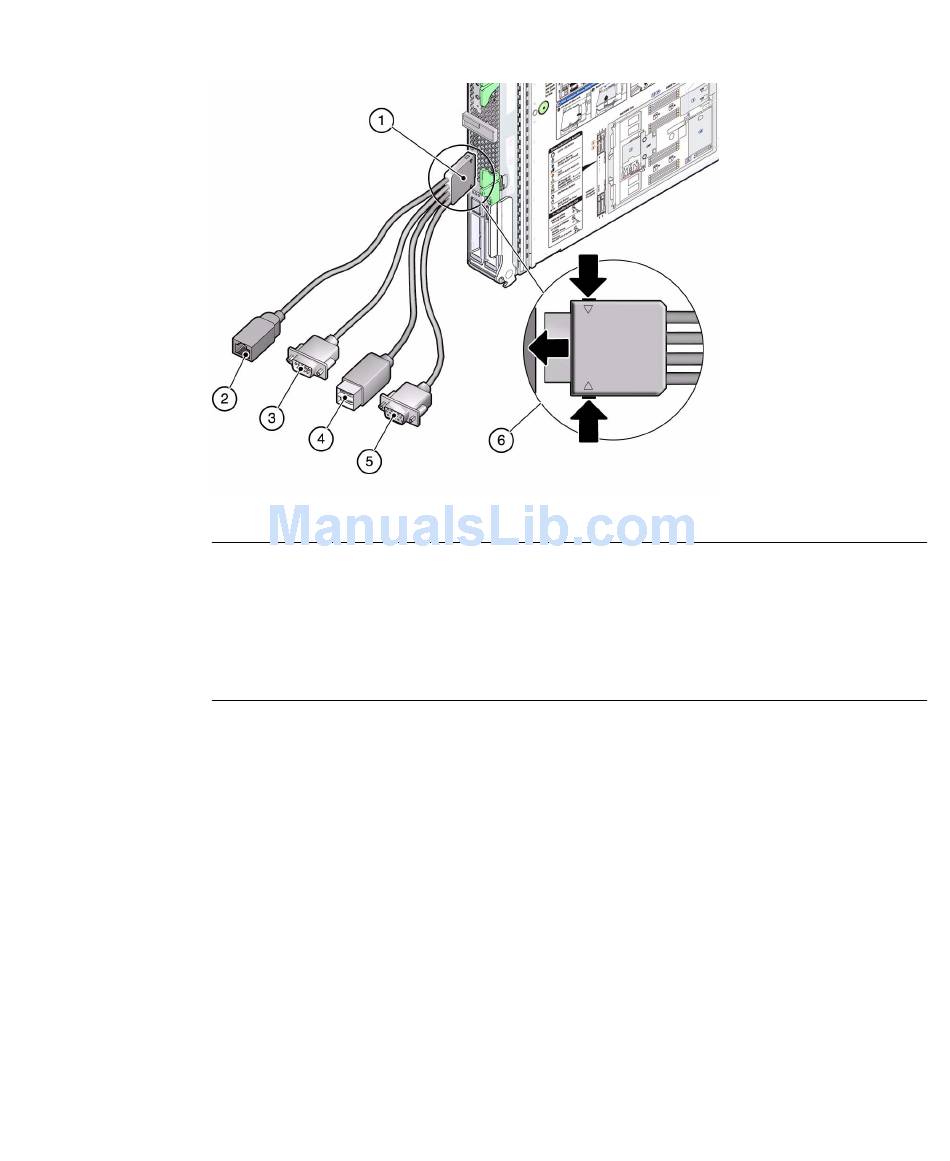

FIGURE:
Figure Legend
1 Dongle connector attaching to the server module UCP
2 RJ-45 serial connector (Do not use this connector on the UCP-4)
3 DB-9 serial male connector (TTYA)
4 USB 2.0 (two connectors)
5 VGA 15-pin female connector
6 Insertion and release buttons
