Sun Oracle SPARC T4-1B Installation Manual page 24

Server module
Hide thumbs Also See for SPARC T4-1B:
Table of Contents

Advertisement

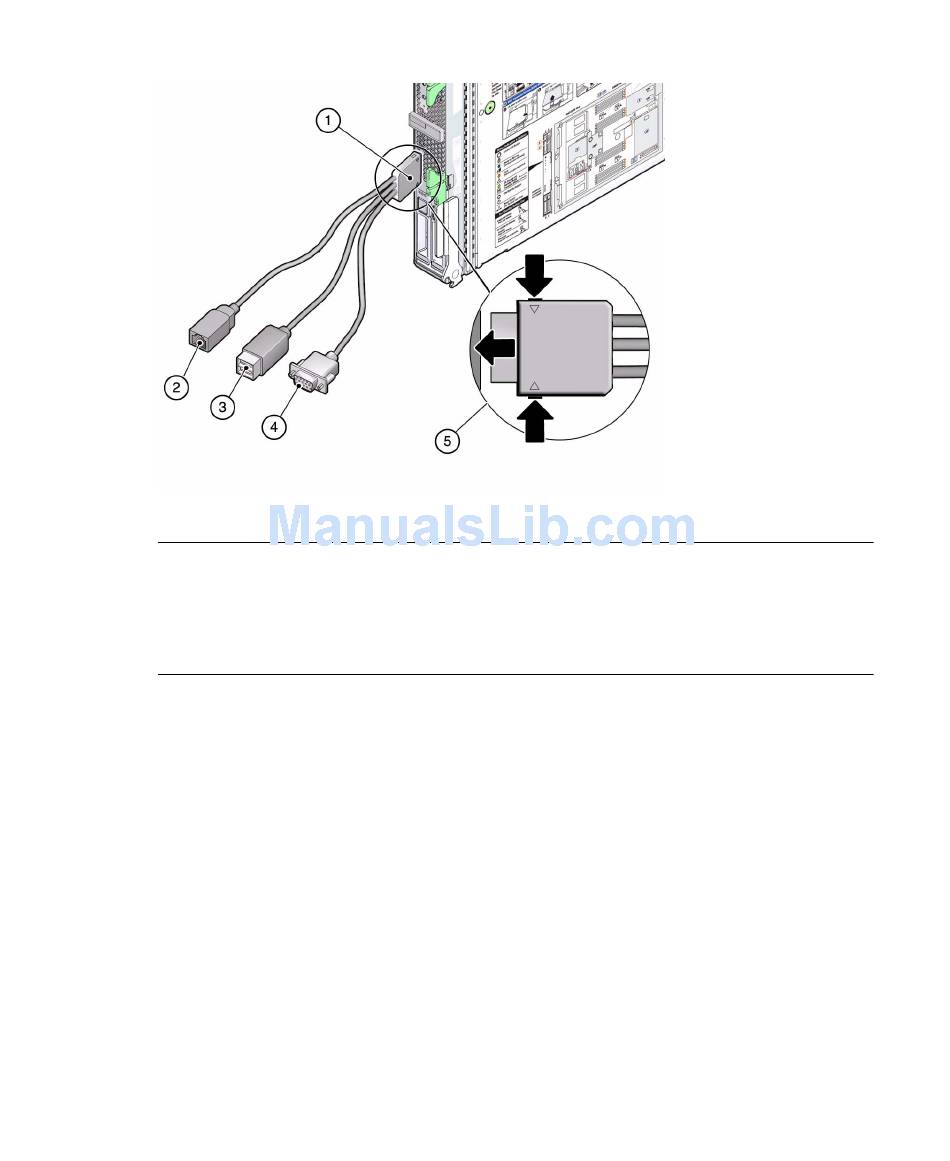

FIGURE:
Figure Legend
1
2
3
4
5
18
SPARC T4-1B Server Module Installation Guide • May 2012
UCP-3 Three-Connector Dongle Cable
Dongle connector attaching to the server module UCP
RJ-45 serial connector
USB 2.0 (two connectors)
VGA 15-pin female connector
Insertion and release buttons
