18P Hex
Master-Slave Configuration:
This function will allows you to link units together to run in a Master-
Slave mode. In Master-Slave operation one unit will act as the con-
trolling unit and the others will react to the controlling units built-in
programs. Any unit can act as a Master or as a Slave however, only
one unit can be programmed to act as the "Master."
Master-Slave Connections and Settings:
1. Daisy chain your units via the XLR connector on the rear of the
unit. Use standard XLR data cables to link your units together.
Remember that the Male XLR connector is the input and the
Female XLR connector is the ouput. The first unit in the chain
(master) will use the female XLR connector only. The last unit in
the chain will use the male XLR connector only.
2. Set the "Master" unit to your desired mode of operation.
3. Connect the first "Slave" unit to the "Master."
4. On the "Slave" unit press the MODE button until "SLAv" is dis-
played. The "Slave" unit will now follow the "Master".
18P Hex
With this feature you can connect the fixtures to one another
using the powerCON input and output sockets. The quantity that
can be connected is 4 fixtures maximum for 120V and 8 fixtures
maximum for 240V. After the maximum fixtures has been reached
you will need to use a new power outlet.
NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES
TO THE 18P HEX. POWER CONSUMPTION OF OTHER LIGHTING
FIXTURES WILL VARY. ALWAYS CHECK THE MAX AMP OUT
RATING OF EACH FIXTURE!
ADJ Products, LLC - www.adj.com - 18P Hex User Manual Page 12
Master-Slave Configuration

Power Cord Daisy Chain

18P Hex

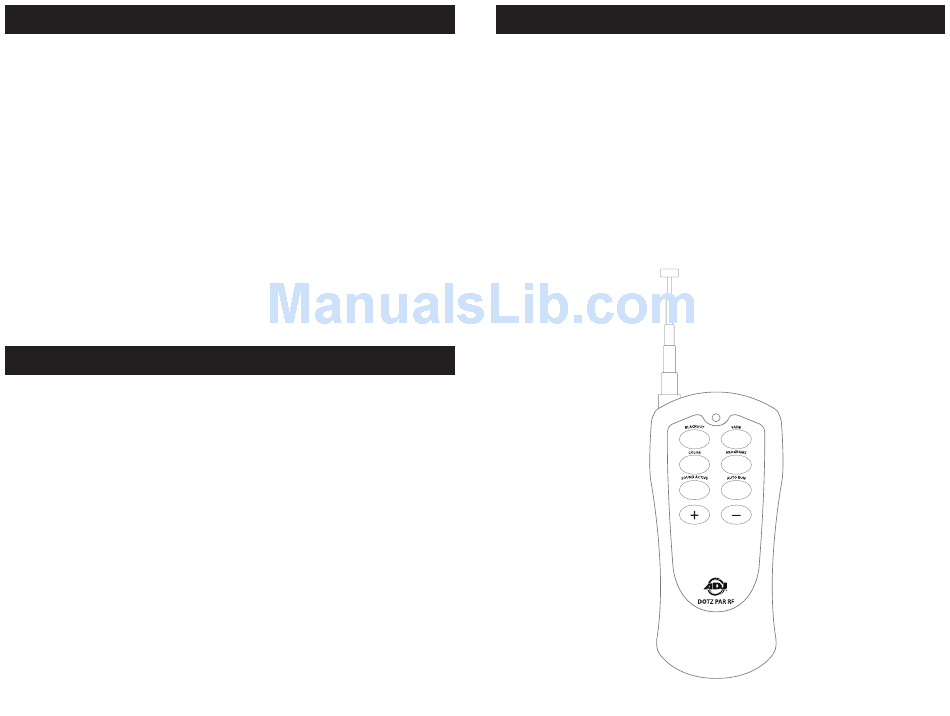

The Dotz Par RF remote (sold separately) has many different functions
which allows you to control the 18P HEX from a distance of 82 feet
(25meters). To use the remote, the RF feature must first be activated on
the fixture. (see instructions on page 10)
BLACKOUT - Press to blackout the fixture.
FADE - Press to activate Fade Program.
COLOR - Press to activate Static Color Mode.
PROGRAMS - Press to activate Built-In Program Mode.
SOUND ACTIVE - Press to activate Sound Active Mode.
(+) (-) - Press to scroll/adjust programs, colors, and speed.
ADJ Products, LLC - www.adj.com - 18P Hex User Manual Page 13
Dotz Par RF Operation
