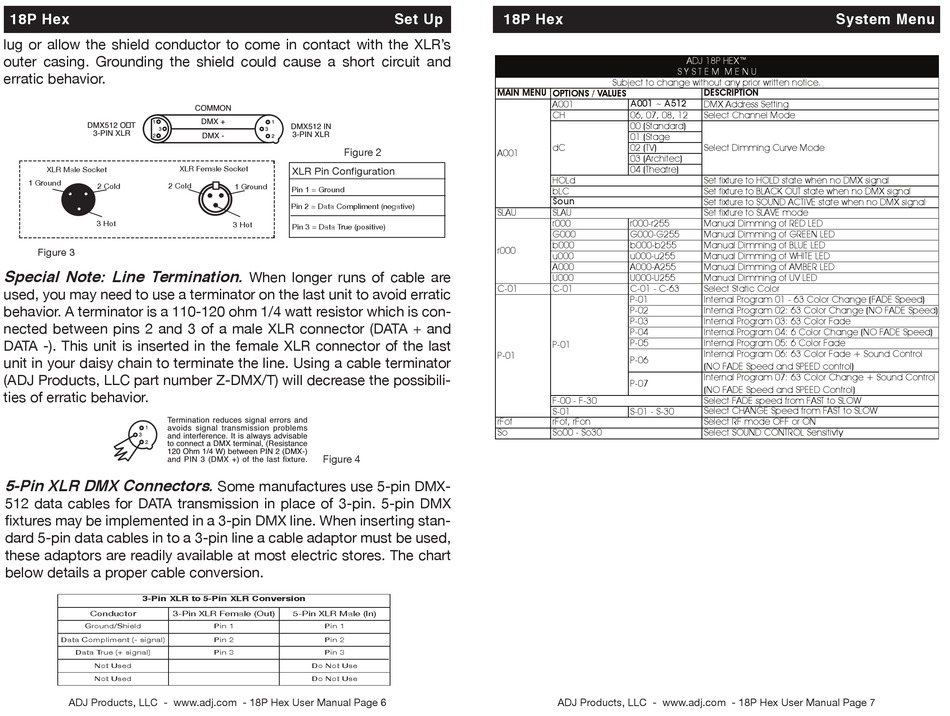

POWER
18P Hex DMX512
DMX+,DMX-,COMMON
lug or allow the shield conductor to come in contact with the XLR's
outer casing. Grounding the shield could cause a short circuit and
erratic behavior.
1
DMX512 O T
3
3-PIN XLR
2
XLR Male Socket
REMOTE
INPUT OUTPUT
1 Ground
CONTROL
2 Cold 2 Cold
INPUT
3 Hot
Figure 3
Special Note: Line Termination.
POWER
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ Products, LLC part number Z-DMX/T) will decrease the possibili-
ties of erratic behavior.
Termination reduces signal errors and
avoids signal transmission problems
1 1
DMX512 IN
and interference. It is always advisable
3 3
3-PIN XLR
to connect a DMX terminal, (Resistance
2 2
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
5-Pin XLR DMX Connectors.
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
fixtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor 3-Pin XLR Female (Out)
Ground/Shield
Data Compliment (- signal)
Data True (+ signal)
Not Used
Not Used
ADJ Products, LLC - www.adj.com - 18P Hex User Manual Page 6
COMMON
DMX +
1
DMX512 IN
3
3-PIN XLR
DMX -
2
Figure 2
XLR Female Socket XLR Pin Configuration
REMOTE
INPUT OUTPUT
SOUND CONTROL
1 Ground
Pin 1 = Ground INPUT
Pin 2 = Data Compliment (negative)
3 Hot
Pin 3 = Data True (positive)
When longer runs of cable are
Figure 4
Some manufactures use 5-pin DMX-
5-Pin XLR Male (In)
Pin 1 Pin 1
Pin 2 Pin 2
Pin 3 Pin 3
Do Not Use
Do Not Use
POWER
Set Up 18P Hex
MAIN MENU
Termination reduces signal errors and
avoids signal transmission problems
1
and interference. It is always advisable
3
2 to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture. A001
SLAU
r000
POWER
C-01
P-01
rFof
So
POWER
ADJ 18P HEX™
S Y S T E M M E N U
Subject to change without any prior written notice.
OPTIONS / VALUES DESCRIPTION
A001 A001 ~ A512 DMX Address Setting
CH 06, 07, 08, 12 Select Channel Mode
00 (Standard)
01 (Stage
dC 02 (TV) Select Dimming Curve Mode
03 (Architec)
04 (Theatre)
HOLd Set fixture to HOLD state when no DMX signal
bLC Set fixture to BLACK OUT state when no DMX signal
Soun Set fixture to SOUND ACTIVE state when no DMX signal
SLAU Set fixture to SLAVE mode
r000 r000-r255 Manual Dimming of RED LED
G000 G000-G255 Manual Dimming of GREEN LED
b000 b000-b255 Manual Dimming of BLUE LED
u000 u000-u255 Manual Dimming of WHITE LED
A000 A000-A255 Manual Dimming of AMBER LED
U000 U000-U255 Manual Dimming of UV LED
C-01 C-01 - C-63 Select Static Color
P-01 Internal Program 01 - 63 Color Change (FADE Speed)
P-02 Internal Program 02: 63 Color Change (NO FADE Speed)
P-03 Internal Program 03: 63 Color Fade
P-04 Internal Program 04: 6 Color Change (NO FADE Speed)
P-05 Internal Program 05: 6 Color Fade
P-01
Internal Program 06: 63 Color Fade + Sound Control
P-06
(NO FADE Speed and SPEED control)
Internal Program 07: 63 Color Change + Sound Control
P-07
(NO FADE Speed and SPEED Control)
F-00 - F-30 Select FADE speed from FAST to SLOW
S-01 S-01 - S-30 Select CHANGE Speed from FAST to SLOW
rFof, rFon Select RF mode OFF or ON
So00 - So30 Select SOUND CONTROL Sensitivty
ADJ Products, LLC - www.adj.com - 18P Hex User Manual Page 7
