GROUP OF COMPANIES
18P HEX
User Instructions
4010765

Advertisement

Table of Contents
loading

Related Manuals for ADJ 18P HEX

Summary of Contents for ADJ 18P HEX

  • Page 1 GROUP OF COMPANIES 18P HEX User Instructions 4010765...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

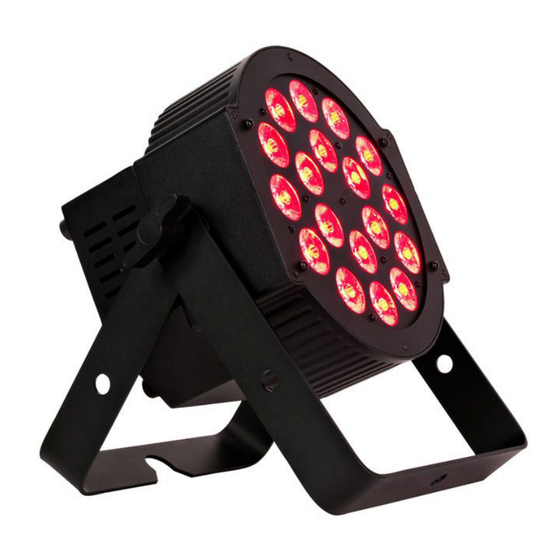

  • Page 3 Introduction: The 18P Hex is a DMX intelligent, LED par fixture. This fixture can be used in a stand alone mode or connected in a primary/secondary configuration. This par has five operating modes: Sound Active mode, Program mode, RGBWA + UV dimmer mode, Static Color mode, and DMX control mode.
  • Page 4 W A R R A N T Y R E G I S T R AT I O N The 18P Hex carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.

  • Page 5: Safety Precautions

    S A F E T Y P R E C A U T I O N S To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. • Do not spill water or other liquids into or on to your unit. •...
  • Page 6 S A F E T Y P R E C A U T I O N S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION! FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT AT A WAVELENGTH OF 390NM •...
  • Page 7 Data Cable (DMX Cable) Requirements (For DMX Operation): The 18P Hex can be controlled via DMX protocol. The 18P Hex has 4 DMX channel modes. Your unit and your DMX controller can accept either a standard 3-pin or 5-pin XLR connector for data input and data output. We recommend Accu- Cable DMX cables.

  • Page 8: System Menu

    S Y S T E M M E N U MAIN MENU OPTIONS / VALUES DESCRIPTION Axxx A001 - A512 DMX Address Setting CHxx 06 / 07 / 08 / 12 Select Channel Mode 00 (Standard) 01 (Stage) dCxx 02 (TV) Select Dimming Curve Mode 03 (Architec) Axxx...
  • Page 9 DMX Mode: Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. The 18P Hex has 4 DMX modes: 6 Channel mode, 7 Channel mode, 8 Channel mode, and a 12 Channel mode. See the DMX Traits section of this manual for detailed information.
  • Page 10 • P-07 - 64 Color Change with Sound Control Sound Active Mode: In this mode the 18P Hex will react to sound, and chase through the different colors. 1. Plug the fixture in and press the MODE button until “Soxx” is displayed. “xx” represents the sound sensitivity level.
  • Page 11 O P E R AT I N G I N S T R U C T I O N S DMX State: This mode is used as a precaution mode, that in case the DMX signal is lost, the operating mode chosen in this setup is the running mode the fixture will go into when the DMX signal is lost.

  • Page 12: M U Lt I P L E U N I T P O W E R L I N K I N G

    • 8 fixtures maximum for 240V DO NOT EXCEED THE NUMBER OF UNITS AS LISTED ABOVE. NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES TO THE 18P HEX. POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY. ALWAYS CHECK THE MAX AMP OUT RATING OF EACH FIXTURE!
  • Page 13 The Dotz Par RF remote (sold separately) has many different functions which allow you to control the 18P HEX from a distance of up to 82 feet (25meters). To use the remote, the RF feature must first be activated on the fixture, as described in the Operating Instructions section of this manual.

  • Page 14: Dmx Traits

    D M X T R A I T S CHANNEL DMX VALUE FUNCTION 6-CH 7-CH 8-CH 12-CH Red, 0% - 100% 000 - 255 Green, 0% - 100% 000 - 255 Blue, 0% - 100% 000 - 255 White, 0% - 100% 000 - 255 Amber, 0% - 100% 000 - 255...

  • Page 15: C O L O R M A C R O C H A R T

    C O L O R M A C R O C H A R T COLOR NO. DMX VALUE GREEN BLUE WHITE AMBER Color1 001 - 004 Color2 005 - 008 Color3 009 - 012 Color4 013 - 016 Color5 017 - 020 Color6 021 - 024...

  • Page 16: C A D D R A W I N G

    C A D D R A W I N G D I M M E R C U R V E C H A R T...

  • Page 17: Fuse Replacement

    F U S E R E P L A C E M E N T Disconnect the unit from its power source. Remove the power cord from the unit. Once the cord has been removed, use a flat head screw-driver to unscrew the fuse holder, then remove the fuse holder and replace the bad fuse with new fuse.

  • Page 18: Limited Warranty Periods

    ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
  • Page 19 S P E C I F I C AT I O N S Model: 18P Hex Voltage: 100V ~ 240V / 50~60 Hz LEDs: 18 x 12W 6-in-1 Hex LEDs Working Position: Any safe working position Power Draw: 155W Power Cord Daisy Chain: 7 Fixtures Max (120V - 10 Amps)
