ADJ 18P HEX IP User Instruction Manual

Hide thumbs Also See for 18P HEX IP:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Using
18P HEX IP
User Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 18P HEX IP and is the answer not in the manual?

Questions and answers

Related Manuals for ADJ 18P HEX IP

Summary of Contents for ADJ 18P HEX IP

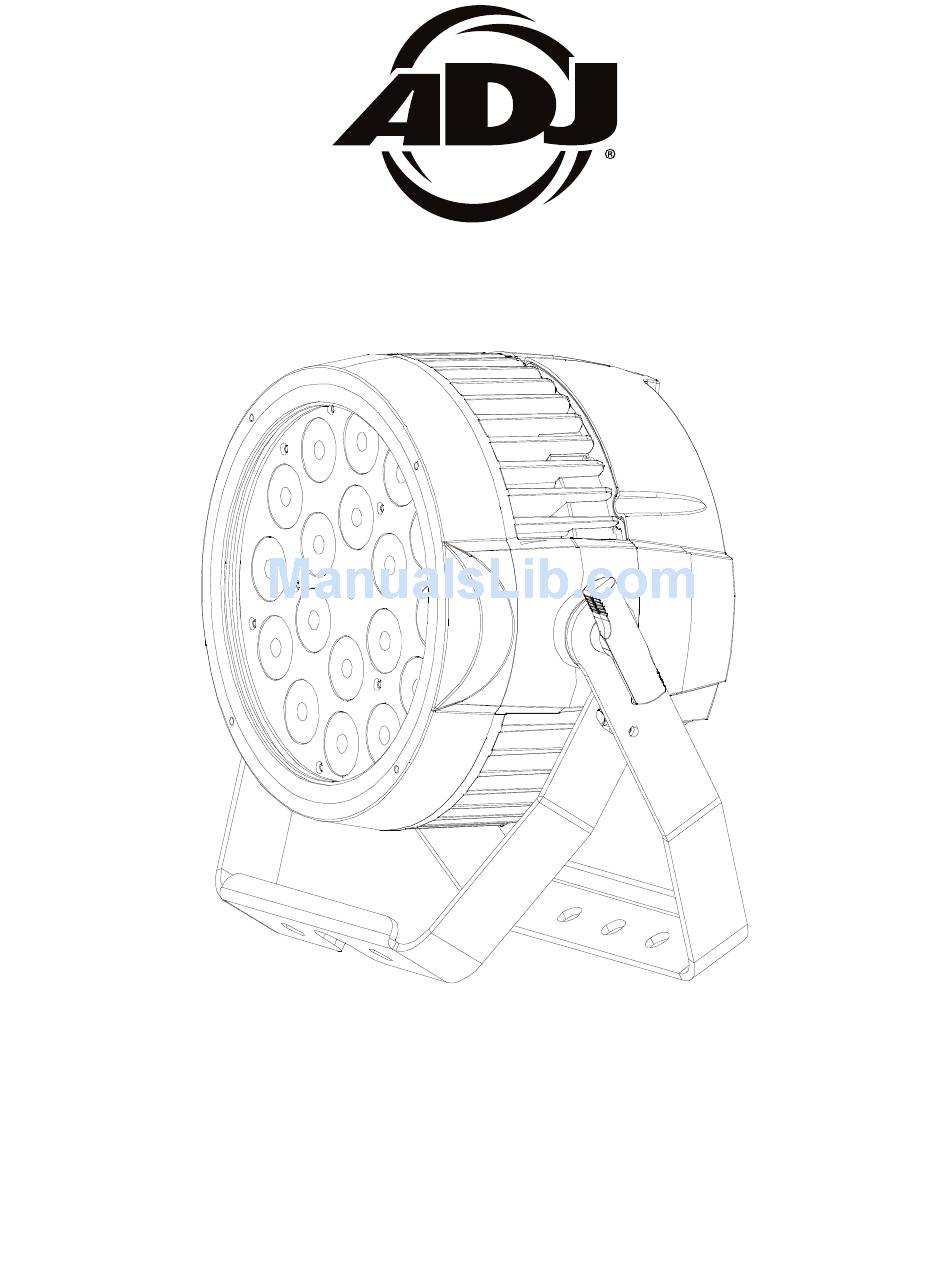

  • Page 1 18P HEX IP User Instructions...
  • Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    DMX Set Up DMX Addressing DMX Channel Modes Color Macro Chart System Menu Operating Instructions Dimmer Curve Chart Dimensional Drawings Multiple Unit Power Linking Warranty Technical Specifications ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 2...

  • Page 4: Introduction

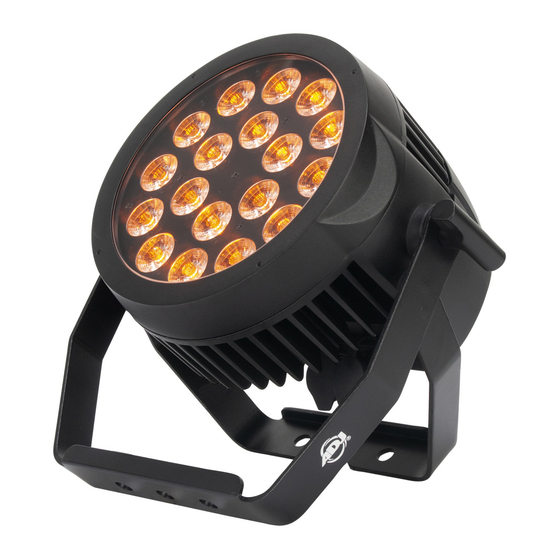

    Do not return this unit to your dealer without first contacting customer support. Introduction: The 18P Hex IP is a DMX intelligent, IP rated LED par fixture. This fixture can be used in a stand alone mode or connected in a Master/Slave configuration. This par has five operating modes: RGBWA + UV dimmer mode, Static Color mode, Auto Run mode, Color Macro mode, and DMX control.

  • Page 5: Features/Warranty Registration/Installation

    18P Hex IP Warranty Registration The 18P Hex IP carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.

  • Page 6: Safety Precautions

    B. Objects have fallen, or liquid has been spilled into the fixture. C. The fixture does not appear to operate normally or exhibits a marked change in performance. D. The fixture has fallen and/or subjected to extreme handling. ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 5...
  • Page 7 INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY RECEIVE DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE. ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 6...

  • Page 8: Ip Notice

    O P T I O N A L C O R R O S I O N - R E S I S T A N T C O A T I N G Optional Corrosion-Resistant Coatings may be available for this fixture. Please consult your ADJ Products, LLC sales representative for details. ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 7...

  • Page 9: Layout

    18P Hex IP Layout LCD Screen Mode Button Up Button Down Button Enter Button Seetronic In Port Seetronic Out Port 3-Pin XLR Out Port 3-Pin XLR In Port ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 8...

  • Page 10: Dmx Set Up

    Data Cable (DMX Cable) Requirements (For DMX Operation): The 18P Hex IP can be controlled via DMX-512 protocol. The 18P Hex IP has 4 DMX channel modes. The DMX address is set on the back panel of the 18P Hex IP. Your unit and your DMX controller require a standard 3-pin XLR connector for...
  • Page 11 Pin 1 Data Compliment (- signal) Pin 2 Pin 2 Data True (+ signal) Pin 3 Pin 3 Not Used Do Not Use Not Used Do Not Use ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 10...
  • Page 12 In the case of the 18P Hex IP, when in 13 channel mode you should set the starting DMX address of the first unit to 1, the second unit to 14 (13 + 1), the third unit to 27 (14 + 13), and so on. (See chart below for more details.)
  • Page 13 From slow to fast Dimmer Modes 0 - 20 Standard 21- 40 Stage 41- 60 61- 80 Architectural 81- 100 Theatre 101- 255 Default to unit setting ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 12...
  • Page 14 Color56 Color24 93-96 Color57 Color25 97-100 Color58 Color26 101-104 Color59 Color27 105-108 Color60 Color28 109-112 Color61 Color29 113-116 Color62 Color30 117-120 Color63 Color31 121-124 Color64 Color32 125-128 ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 13...
  • Page 15 201-204 Color52 205-208 Color53 209-212 Color54 213-216 Color55 217-220 Color56 221-224 Color57 225-228 Color58 229-232 Color59 233-236 Color60 237-240 Color61 241-244 Color62 245-248 Color63 249-252 Color64 253-255 ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 14...

  • Page 16: Dmx Addressing

    Info Was Cleared (Hours) TimeInfo TimeInfo TimerPIN Clear 0 Password: （Password=050） Total Time Clear 0: （Password=060） Menu ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 15 Info Current Running Info TempInfo Temperature TempInfo Info Model Name...
  • Page 17 ManCtrl Dimmer 000~ ManCtrl Red 000~255 ManCtrl Green 000~255 Menu ManCtrl Blue 000~255 Manual Control Manual ManCtrl White 000~255 ManCtrl Amber 000~255 ManCtrl Purple 000~255 ManCtrl Strobe 000~255 ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 16...

  • Page 18: Operating Instructions

    Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. The 18P Hex IP has 4 DMX modes: 6 Channel mode, 7 Channel mode, 8 Channel mode, and a 13 Channel mode.
  • Page 19 3. Use the UP or DOWN button to toggle between “ON’ and “OFF”, press ENTER to make your selection. Press the MODE button to make no selection and exit. ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 18...
  • Page 20 “TimeInfo TimerPIN” - This menu function will allow you to clear the running time. “TempInfo” - This will display the current running temperature “Model Inf” - This will display the model name. “ErrorInf” - This will display any error information. ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 19...
  • Page 21 3. Set the “Master” unit to your desired mode of operation. On the “Slave” unit’s press the MODE button and use the UP or DOWN buttons until “Menu Slave” is displayed and press ENTER. ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 20...

  • Page 22: Dimmer Curve Chart

    Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 21...

  • Page 23: Dimensional Drawings

    18P Hex IP Dimensional Drawing 7.09” / 180.1mm 13.23” / 336mm 2.89” / 73.5mm 7.92” / 201.1mm 10.98” / 279mm ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 22...

  • Page 24: Multiple Unit Power Linking

    The maximum that can be connected is 8 fixtures @ 120V and 15 fixtures @ 240V. After the maximum connected fixtures you will need to use a new power outlet. NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES TO THE 18P HEX IP AS THE POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY!

  • Page 25: Warranty

    ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.
  • Page 26 18P Hex IP Specifications Model: 18P Hex IP Voltage: 100V ~ 240V/50~60Hz LEDs: 18 x 12W 6-in-1 HEX LED’s IP Rating: IP65 Working Position: Any safe working position Power Draw: 155.5W Power Linking: 8 Fixtures Max. @ 120V 15 Fixtures Max. @ 240V Weight: 15 lbs./ 6.8 Kgs.
