- Page 1 User Instructions A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands www.americandj.eu 3/16...
- Page 2 ©2013 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
SPECIFICATIONS ..................................13 ROHS - A great Contribution to the Conservation of Environment ..................14 WEEE – Waste of Electrical and Electronic Equipment ......................15 A.D.J. Supply Europe B.V. – www.americandj.eu – Encore Profile 1000 WW Instruction Manual Page 3... -
Page 4: Introduction

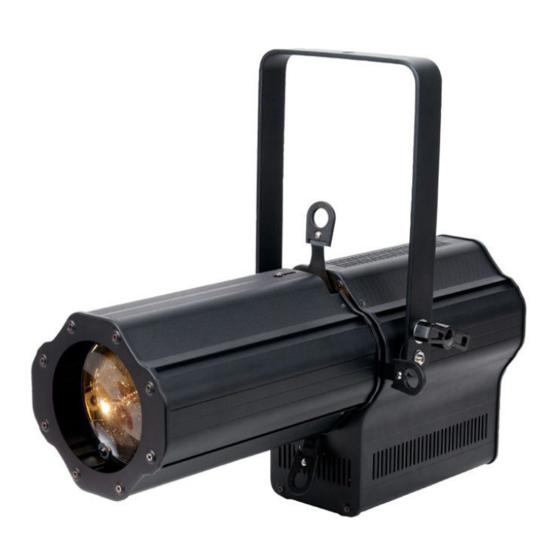

Do not return this unit to your dealer without first contacting customer support. Introduction: The ADJ Encore Profile 1000 WW is a DMX intelligent, high powered LED follow spot. This follow spot has three operating modes: white dimmer mode, fade mode, and DMX control mode. This fixture can be used in a stand alone mode or connected in a Master/Slave configuration. -
Page 5: Safety Precautions
DMX SET UP Power Supply: The ADJ Encore Profile 1000 WW contains an automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the correct power voltage, this unit can be plugged in anywhere. - Page 6 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
-
Page 7: Operating Instructions
Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. The Encore Profile 1000 WW has 3 DMX modes: 1 channel mode, 2 channel mode, and 3 channel mode. See page 11 for each mode’s DMX traits. - Page 8 ADJ LED RC2 (sold separately), UC IR (sold separately), and Airstream IR app. Please see pages 10-11 for remote controls and functions. To control the Encore Profile 1000 WW, plug the included IR receiver into IR receiver input located on the rear of the controller. You must aim the remote at the IR sensor and be no more the 30 feet away.
-
Page 9: Focus And Zoom Adjustments
GOBO INSTALL The Encore Profile 1000 WW comes with 4 replaceable gobos (see below). To install a gobo, unscrew and remove the phillips screw located at the bottom of the gobo holder. Gently lift part of the gobo holder side up and carefully slide the gobo into place. -
Page 10: Adj Led Rc2 Operation
Profile 1000 WW. To control the fixture you must aim the controller at the infrared sensor and be no more the 30 feet away. To use the ADJ LED RC2 you must first activate the fixtures infrared sensor, to activate the sensor please see the instructions on page 8. -
Page 11: Uc Ir & Airstream Ir Functions
30 feet away. The Encore Profile 1000 WW comes with the Airstream IR remote transmitter. The transmitter plugs into the headphone jack of your iOS phone or tablet. To control your IR fixture you must raise the volume to the maximum on your iOS phone or table and aim the transmitter at the front of the fixture and be no more than 15 feet away. -
Page 12: Cad Drawing
Tdown (ms) T rise (ms) Tdown (ms) Standard Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 A.D.J. Supply Europe B.V. – www.americandj.eu – Encore Profile 1000 WW Instruction Manual Page 12... -
Page 13: Power Cord Daisy Chain
Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. A.D.J. Supply Europe B.V. – www.americandj.eu – Encore Profile 1000 WW Instruction Manual Page 13... -
Page 14: Rohs - A Great Contribution To The Conservation Of Environment
The ROHS directive is an important step to the protection of our environment. We, as manufactures, feel obligated to make our contribution in this respect. A.D.J. Supply Europe B.V. – www.americandj.eu – Encore Profile 1000 WW Instruction Manual Page 14... -
Page 15: Weee - Waste Of Electrical And Electronic Equipment
We are happy to answer any of your inquiries and welcome your suggestions at: info@americandj.eu A.D.J. Supply Europe B.V. – www.americandj.eu – Encore Profile 1000 WW Instruction Manual Page 15... - Page 16 A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands www.americandj.eu A.D.J. Supply Europe B.V. – www.americandj.eu – Encore Profile 1000 WW Instruction Manual Page 16...
