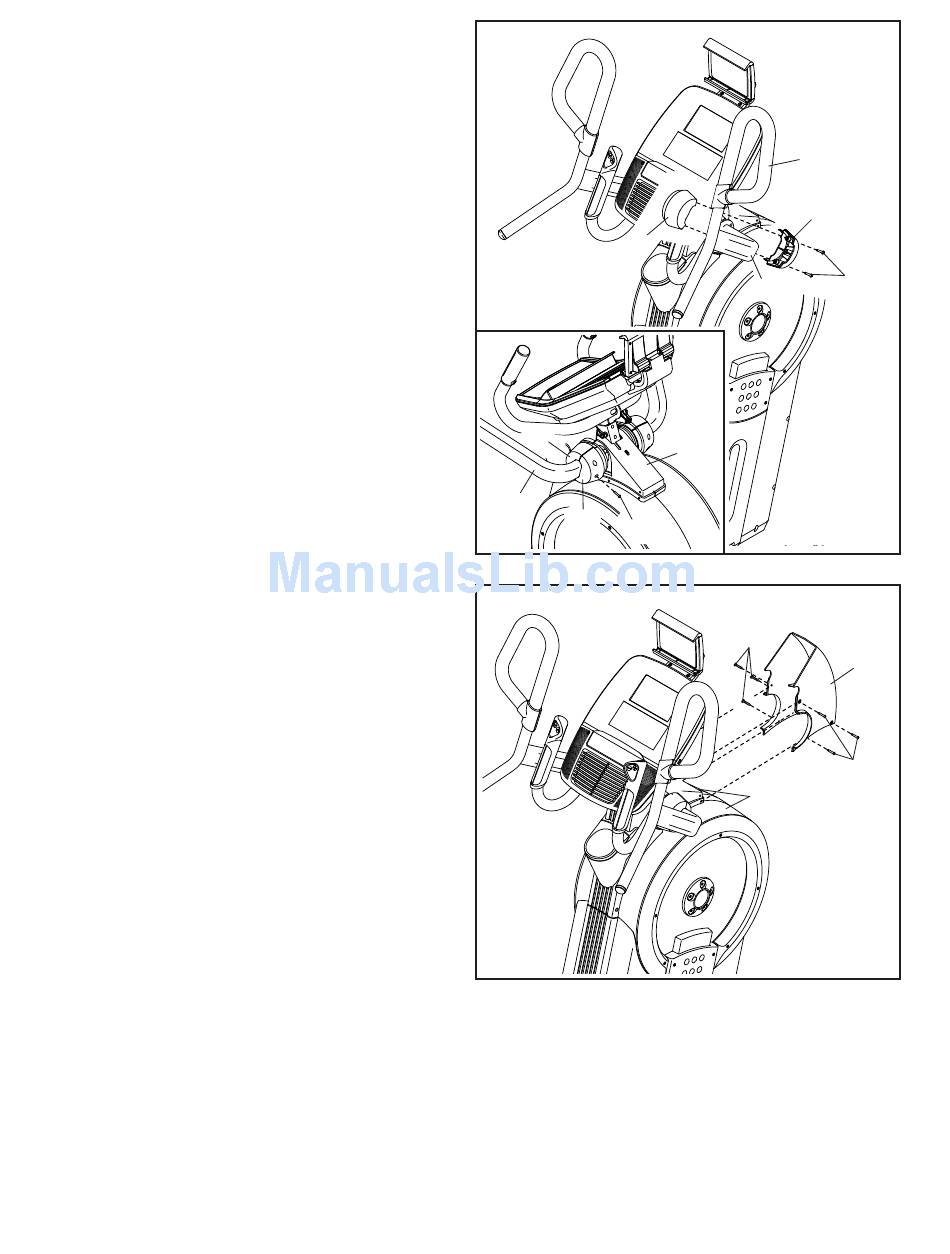

10. Identify the Rear and Front Pivot Covers
(65, 66).
Press a set of Rear and Front Pivot Covers (65,
66) together around the Right Handlebar (10)
near the bend (A). Then, attach them to each
other with two M4 x 22mm Screws (107).
See the inset drawing. Slide the Rear and Front
Pivot Covers (65, 66) toward the Shield Cover
(12). Attach the Front Pivot Cover to the Right
Handlebar (10) with an M4 x 22mm Screw (107).
Repeat this step on the other side of the
trainer.
11. Attach the Front Cover (52) to the Left and Right
Shields (50, 51) with six M4 x 16mm Flat Head
Screws (101); start all the Flat Head Screws,
and then tighten them.
12. Make sure that all parts are properly tightened before you use the trainer. Extra parts may be included.
Place a mat beneath the trainer to protect the floor.
