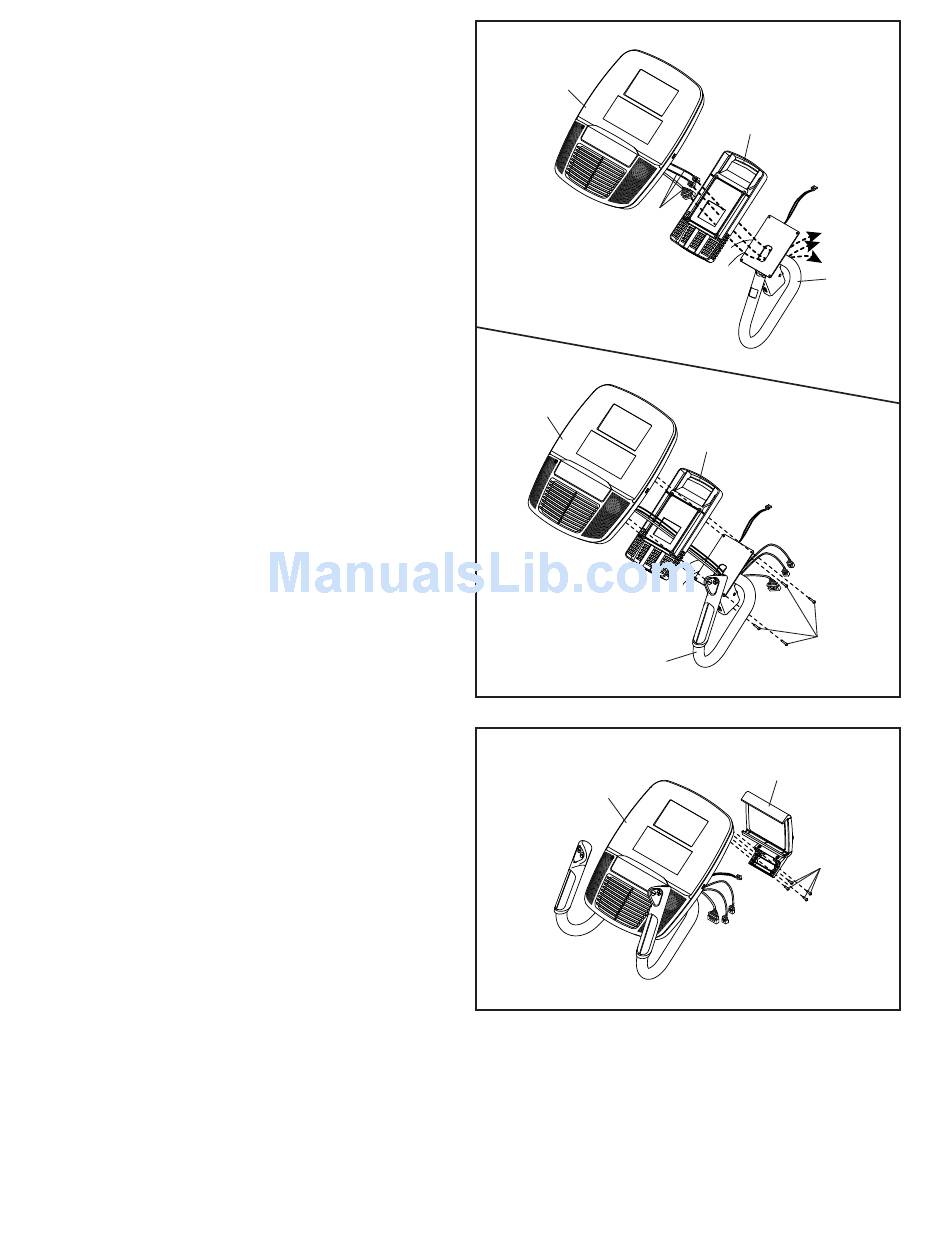

6. See the upper drawing. With the help of a
second person, orient the Console (5), the
Console Cover (7), and the Console Bracket (4)
as shown. Route the wires (A) on the Console
through the Console Cover and the Console
Bracket as shown; make sure to insert the
wires through the upper part of the hole in
the Console Bracket.
See the lower drawing. Tip: Avoid pinching
the wires. Attach the Console (5) and the
Console Cover (7) to the Console Bracket (4)
with four M4 x 22mm Screws (107); start all the
Screws, and then tighten them.
7. Attach the Tablet Holder (6) to the Console (5)
with four #8 x 16mm Screws (111); start all the
Screws, and then tighten them.
6
5
5
7
5
12
7
A
7
Avoid pinching
the wires
107
4
6
111
4
