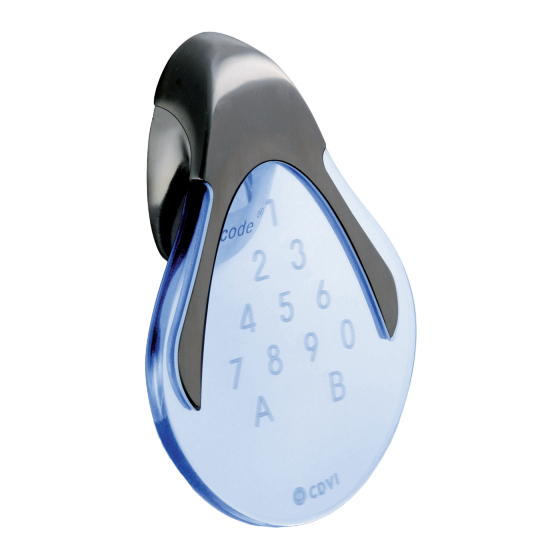

Illuminated weatherproof keypad with remote electronics

Advertisement

Available languages

Available languages

Quick Links

SUBLIM
Illuminated Weatherproof Keypad with remote electronics
Clavier codé rétro-éclairé à électronique déportée
®
Range: Digicode
/
Group Products
®
Gamme: Digicode
EN
FR
INSTALLATION MANUAL
MANUEL D'INSTALLATION
ENGLISH
FRANCAIS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUBLIM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CDVI SUBLIM

  • Page 1 ENGLISH FRANCAIS SUBLIM Illuminated Weatherproof Keypad with remote electronics Clavier codé rétro-éclairé à électronique déportée ® ® Range: Digicode Gamme: Digicode INSTALLATION MANUAL MANUEL D’INSTALLATION Group Products...
  • Page 2: Presentation Du Produit

    Rappel de câblage Montage - La distance de câblage entre le SUBLIM et Afi n d’optimiser le fonctionnement du SUBLIM l’électronique déportée doit être au maximum de 3 m. et de prévenir les tentatives d’arrachage, privilégiez - Attention de ne pas passer vos fi...
  • Page 3: Montage

    Electronique déportée SUBLIM 4] MONTAGE Vérifi ez la distance entre le SUBLIM et Positionnez les 3 chevilles plastiques Passez le câble électrique du SUBLIM dans son électronique déportée. A l’aide de dans les trous. Puis Fixez le fond du son ouverture et fi...
  • Page 4 Gâche à émission Relais Relais Varistance Gâche à rupture (Contact au repos) H (Ouvert) SUBLIM en fonction clavier codé H (Fermé) SUBLIM en fonction Bouton Poussoir Alimentation 12 à 24 V AC ou 12 à 48 V DC Alimentation côté puissance...
  • Page 5 - Toutes les touches du clavier pour chaque touche. 2. Basculez l’interrupteur SW2 sont autorisées pour composer (se reporter à la page 14 Les valeurs du SUBLIM les codes. pour visualiser sa position) sont par défaut: - Le code maître et les codes en position ON.
  • Page 6: Programmation Des Codes

    MANUEL D’INSTALLATION SUBLIM Clavier codé rétro-éclairé à électronique déportée 3. Tapez A5 pour changer le code maître. au mode normal de fonctionnement. - Un bip est émis. - Tapez les 4 ou 5 termes du nouveau code maître. D. PROGRAMMATION DES CODES - Un bip sonore est émis pour confi...
  • Page 7 H. PROGRAMMATION DES TERMES la temporisation des relais. DE MODIFICATIONS - Vous devez réaliser la démarche pour chacun des relais de votre SUBLIM 1. Tapez 2 fois le code maître. - Un bip sonore est émis. - Pour la première utilisation, - Tapez la durée de commande en secondes.
  • Page 8 MANUEL D’INSTALLATION SUBLIM Clavier codé rétro-éclairé à électronique déportée Tapez le code maître 2 x bips Temporisation Temporisation Temporisation Nombre de éclairage Code maître relais 1 relais 2 termes clavier 1 x bip 1 x bip 1 x bip 1 x bip...
  • Page 9 MANUEL D’INSTALLATION SUBLIM Clavier codé rétro-éclairé à électronique déportée Termes Termes Programmation Reset de modifi cation de modifi cation Signal sonore des codes relais 1 relais 2 00-99 1 x bip 1 x bip 1 x bip 1 x bip ‘4’...
  • Page 10 Ci-joint un tableau récapitulatif qui vous servira à indiquer le code attribué à chaque utilisateur Rangs Code Rangs Code Rangs Code Prénom Prénom Prénom SUBLIM 2 Relais RAPPEL Groupe 1 : Du rang 00 au rang 59, - Groupe 2 : Du rang 60 au rang 99. cdvi.com cdvigroup.com...
  • Page 11 Si l’électronique déportée est située à proximité du clavier, vous pouvez vous aider des voyants de l’élec- tronique déportée pour programmer votre SUBLIM. En mode apprentissage, le voyant vert clignote lente- ment en attente de l’appui sur une touche. Pendant l’apprentissage de la touche, le voyant passe fi xe.
  • Page 12: Notes And Recommendations

    Wiring reminder - When selecting a master code and user code - The wiring distance between the SUBLIM and the avoid simple codes (example : 3 4 5 6 7). remote controller must be within a maximum of 3 m.
  • Page 13: Mounting Kit

    (refer to Mount the back plate of the SUBLIM of the back plate.Then mount the keypad page 3). Place the back plate of the SUBLIM with the (M4x35) mounting screws. on the back plate, placing fi rst the top on the wall and the bracket of the remote in the hooks and then the bottom.
  • Page 14 INSTALLATION MANUAL SUBLIM Illuminated Weatherproof Keypad with remote electronics 5] SUBLIM 2 RELAYS CONNECTION DIAGRAM Fail secure strike Relay Relay Varistor Fail safe strike (Contact on standby) H (Open) SUBLIM in coded keypad operation H (Closed) SUBLIM in Push Button operation...
  • Page 15 INSTALLATION MANUAL SUBLIM Illuminated Weatherproof Keypad with remote electronics Digit teach programming SUBLIM’s default values are: - The master code and door 1. Switch the keypad off. - No code. access codes must comprise 2. Set switch SW2 (Refer - Lighting timeout: 10s.
  • Page 16: Changing The Master Code

    INSTALLATION MANUAL SUBLIM Illuminated Weatherproof Keypad with remote electronics 4. Press B to exit from programming mode. D. ADDING, CHANGING 2 beeps are emitted to confi rm that the OR DELETING A USER CODE keypad is in stand-by operating mode.
  • Page 17: Reset Master Code

    INSTALLATION MANUAL SUBLIM Illuminated Weatherproof Keypad with remote electronics (1 2 3 4 5 default value master code). 2. Enter the 2-digits sub master code. 2 beeps are emitted to confi rm - Relay 1, on fi rst use: A and B.
  • Page 18 INSTALLATION MANUAL SUBLIM Illuminated Weatherproof Keypad with remote electronics Type the master code 2 x beeps Keypad lighting Relay 1 timeout Relay 2 timeout Number of digits Master code timeout 1 x beep 1 x beep 1 x beep 10-99 seconds.
  • Page 19 INSTALLATION MANUAL SUBLIM Illuminated Weatherproof Keypad with remote electronics Digits Digits Reset for changing for changing Sound signal relay 1 relay 2 00-99 1 x beep 1 x beep 1 x beep 1 x beep ‘4’ or ‘5’ fi gures 0 = stop the beeps.
  • Page 20 A summary table indicating the code assigned to each user is attached Digit Name Digit Name Digit Name Code Code Code place Forname place Forname place Forname SUBLIM 2 Relays REMINDER Group 1: From row 00 to row 59, - Group 2: From row 60 to row 99. cdvi.com cdvigroup.com...
  • Page 21 If the remote controller is situated close to the keypad, you can use the remote controller’s indicator lights to help you programme your SUBLIM. In training mode, the green indicator light fl ashes slowly while waiting for a key to be pressed. While a key is being trained, the indicator stays on.When all the keys have been trained, the green indicator fl...
  • Page 22 MANUEL D’INSTALLATION SUBLIM Clavier codé rétro-éclairé à électronique déportée cdvi.com cdvigroup.com...
  • Page 23 MANUEL D’INSTALLATION SUBLIM Clavier codé rétro-éclairé à électronique déportée cdvi.com cdvigroup.com...
  • Page 24 Reference : G0301FR0297V06 Extranet : EXE-CDVI_IM SUBLIM CMYK A5 EN-FR 06 *G0301FR0297V06* CDVI Group FRANCE (Headquarter/Siège social) Phone: +33 (0)1 48 91 01 02 Fax: +33 (0)1 48 91 21 21 CDVI CDVI CDVI CDVI UK FRANCE + EXPORT SUISSE...
