CDVI GALEO/W Installation Manual

Illuminated online keypad 26 bit output format, clock & data and cdvi output format
Hide thumbs Also See for GALEO/W:
1
2
3
4
5
6

Advertisement

Table of Contents

Edition 10/2006
Qty
Description
1
M4x10 tamper screw
1
T20 spanner
4
M4x30 mounting screws
2
Caps
4
S5 plastic anchor
1
05D 680K varistor
2
Wiring sealed caps
Dimensions: 110 x 75 x 15 mm

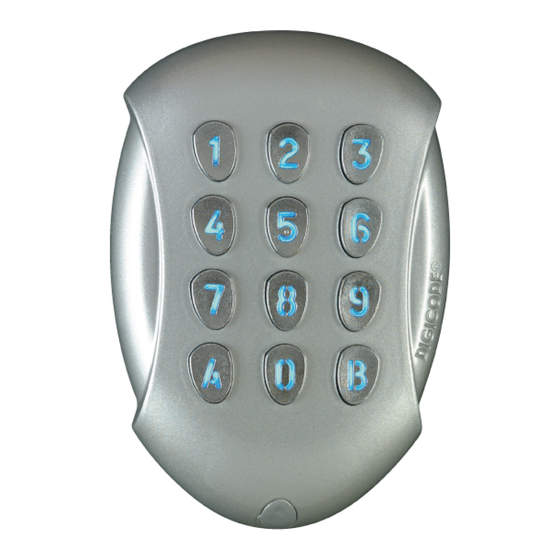

ILLUMINATED ONLINE KEYPAD
26 BIT OUTPUT FORMAT, CLOCK &
DATA and CDVI OUTPUT FORMAT
CABLE
Red
Black
Brown
Buzzer command input
Green
White
Blue
Gray
MOUNTING KIT
GALEO/W
Description
12V DC (+)
0V
Data 0
Data 1
Clock
0V common
G0301FR0266V01
IP 64
DM
Utilisation
GALEO Mounting screw
For the M4x10 screw
2 * keypad back plate
2 * Remote Controller
GALEO cap
2 * keypad back plate
2 * Remote Controller
For the lock
Cable to the controller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GALEO/W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CDVI GALEO/W

Summary of Contents for CDVI GALEO/W

  • Page 1 Edition 10/2006 G0301FR0266V01 GALEO/W ILLUMINATED ONLINE KEYPAD 26 BIT OUTPUT FORMAT, CLOCK & DATA and CDVI OUTPUT FORMAT IP 64 CABLE Description 12V DC (+) Black Brown Buzzer command input Green Data 0 White Data 1 Blue Clock Gray 0V common...

  • Page 2: General Information

    Edition 10/2006 G0301FR0266V01 I. GENERAL INFORMATION A. Description Input voltage 12V DC 12-digit illuminated keypad keys EEPROM memory storage User code in 4, 5 or 6 digits Buzzer ST1 jumper for programming B. Default values Illumination duration: 10 seconds User code lenght: 5 digits 26 bit wiegand output Buzzer disabled C.

  • Page 3: Output Format

    2. Press A1 to enter in the output format menu. One beep is emitted. Press 1 to select 26-bit wiegand output format Press 2 to select CDVI output format Press 3 to select ISO Track 2 output format One beep is emitted to confirm programming.
  • Page 4 Edition 10/2006 G0301FR0266V01 F. 26-bit wiegand format Chronograms 0 logic 1 logic \DATA1 \CLOCK \DATA0 50 s 50 s Interfaçage The output format is 26-bit Wiegand (Signals: DATA1, DATA0 and CLOCK) Output signal in open collectors (pull up of 2.2K in +5V) 26-bit hexadecimal output format The frame is made of 26-bit and built as follow: First parity: 1-bit –...
  • Page 5 1 if the number of 1 in bit 14 to bit 25 is even G. CDVI Format This format is owned by CDVI. This format is compatible with other CDVI products ( PROMI, UCA3 ). H. ISO 7811 Track 2 Format...

  • Page 6: Mounting Instructions

    Edition 10/2006 G0301FR0266V01 MOUNTING INSTRUCTIONS III. Drill (bit Ø5mm) 2 mounting holes (minimum depth 35mm) and the cable hole. Insert the S5 2 plastic anchors in the ® GALEO holes. Mount the back plate with the M4x30 screws. ® Insert the cable of the GALEO inside to cable hole.
