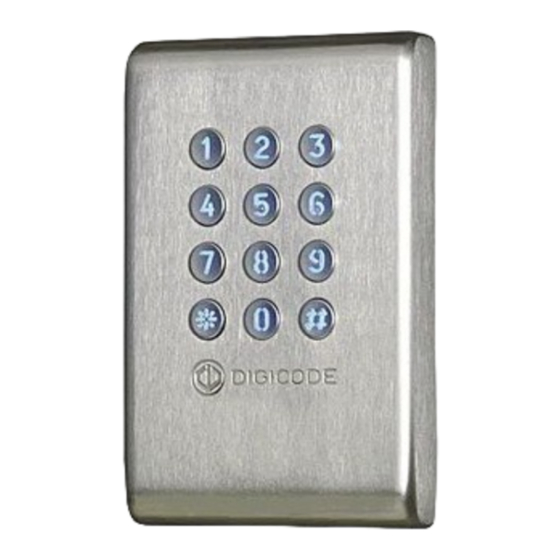

- Page 1 KCIENSBP KCIEN Heavy Duty Stainless Steel Illuminated Keypads Range: DIGICODE (Stand-Alone Keypad) ® INSTALLATION MANUAL...
- Page 2 Installation Manual Installation Manual Stand-Alone Keypads Stand-Alone Keypads Features: Default Values: • Touch-activated illumination time: 10 secs • Input voltage: 12V to 24V AC or 12V to 48V DC • Relay activation time: 1 second • Illuminated keys • Code length: 5 digits •...
-
Page 3: Factory Default
Installation Manual Installation Manual Stand-Alone Keypads Stand-Alone Keypads Black (ground) Input Voltage 12 to 24 Vac or 12 to 48 Vdc Piezo Light Green ( User can change their own code) Purple (Common) To Purple Tamper Dark Green ( * Request-to-enter) To Dark Green or Light Blue Light Blue (* Request-to-enter) - Page 4 Installation Manual Installation Manual Stand-Alone Keypads Stand-Alone Keypads RESET MEMORy MASTER CODE (Default 12345) 1. Enter the master code twice (default: 12345) 1. Enter the master code twice. Two beeps are emitted to confirm entry in programming mode. Two beeps are emitted to confirm entry in programming mode. 2.
- Page 5 Installation Manual Installation Manual Stand-Alone Keypads Stand-Alone Keypads RELAy 1 OUTPUT TIME (Default: 1 second) USER CODES (PIN) 1. Enter the master code twice (Default: 12345). User rank 00 to 59 activate relay 1 and Two beeps are emitted to confirm entry in programming mode. rank 60 to 99 activate relay 2 2.
- Page 6 Installation Manual Installation Manual Stand-Alone Keypads Stand-Alone Keypads User codes (PIN) User codes (PIN) User Codes (PIN) User codes (PIN) c d v i . c o m c d v i . c o m c d v i g r o u p . c o m c d v i g r o u p .
- Page 7 Installation Manual Installation Manual Stand-Alone Keypads Stand-Alone Keypads CHANGING SUB MASTER CODE FOR RANK 00 TO 59 ENABLING USERS TO CHANGE THEIR OWN CODE To enable the user to change their own code, connect the light green and purple wires together when installing the keypad. (Default: then The Sub Master code allows the user to change their own code (PIN)
- Page 8 Reference : (Louxor reference) Extranet : (Marketing reference) Manufacturing Access Control since 1985 CDVI CDV CHINA CDV SWEDEN PROCOFI (Headquarters/Siège social) FRANCE CHINA SWEDEN FRANCE Tel: +33 (0)1 48 91 01 02 Tel: +86 (0)10 87664065 Tel: +46 (0)33 20 55 50...
